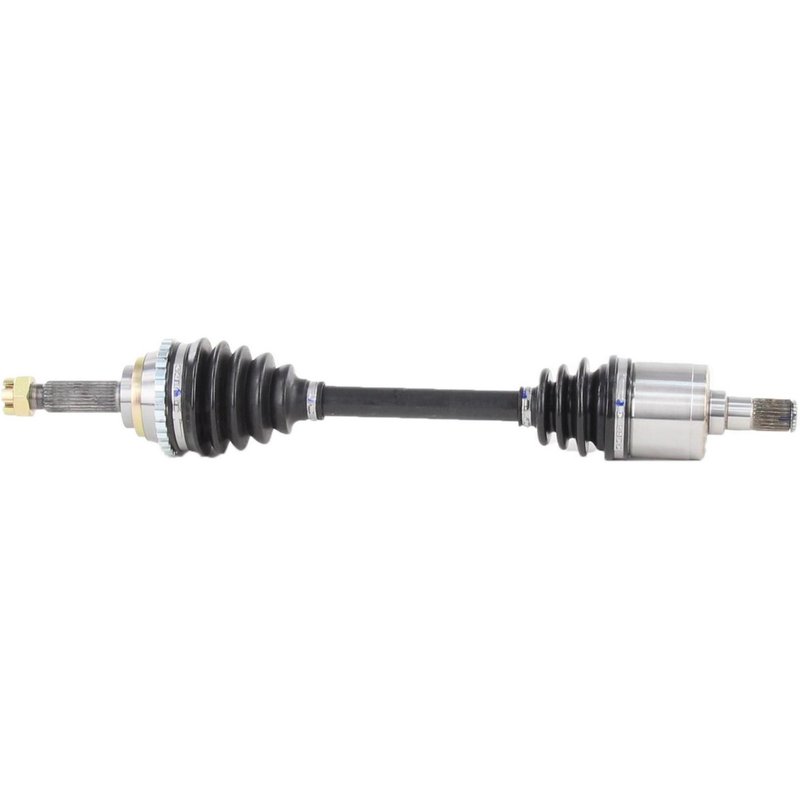

TrakMotive MI-8086 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft MI-8086 for Hyundai Accent

The TrakMotive CV Axle Shaft MI-8086 is engineered specifically for Hyundai Accent models, providing reliable driveline performance. Designed as a new replacement part, this axle shaft ensures proper fitment and durability for your vehicle's CV components.

• Compatible with Hyundai Accent vehicles
• Includes ABS tone ring with 29 toothed abs ring teeth
• Neoprene boot material for enhanced durability
• Hex head axle nut with cotter pin locking mechanism included
• Overall compressed length of 24.02 inches (610 mm)
• Male inboard joint type with 25 splines
• Conventional outboard joint type with 25 splines

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components tailored to specific vehicle applications. This MI-8086 axle shaft is part of that line, featuring a combination of male inboard and conventional outboard joints designed to meet the exact specifications of Hyundai Accent models. The inclusion of a toothed ABS tone ring and neoprene boot material highlights the line's attention to both performance and longevity.

Technical Specifications and Features

This CV axle shaft features a 29-tooth ABS ring designed to work seamlessly with the vehicle's anti-lock braking system. The neoprene boot material offers resistance to wear and environmental factors, protecting the joint from contaminants. The axle nut included is a hex type with a 1 1/4 inch (32 mm) hex size, 1 1/2 inch (37 mm) length, and a 6/7 inch (22 mm) height, secured with a cotter pin locking mechanism to ensure safe installation. Both inboard and outboard shafts have 25 splines, with the inboard joint being male type and the outboard joint conventional, providing a secure and precise connection.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Hyundai Accent
• Restores proper ABS sensor function with included toothed ABS tone ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage and joint contamination with durable neoprene boot
• Ensures secure wheel attachment with included axle nut and cotter pin locking

Installation Notes and Tips

When installing the TrakMotive MI-8086 CV Axle Shaft, ensure the ABS tone ring aligns correctly with the vehicle’s sensor for accurate ABS operation. Use the included hex axle nut and cotter pin to secure the axle shaft firmly. Verify spline engagement on both inboard and outboard connections to avoid premature wear. Proper torque specifications should be followed according to Hyundai Accent service guidelines.

Quality Assurance and Warranty

This CV axle shaft is a new, direct replacement part manufactured to meet OEM standards for fit and function. The use of high-quality neoprene for the boot and precision-machined splines ensures durability and reliable performance. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality standards for driveline components.
