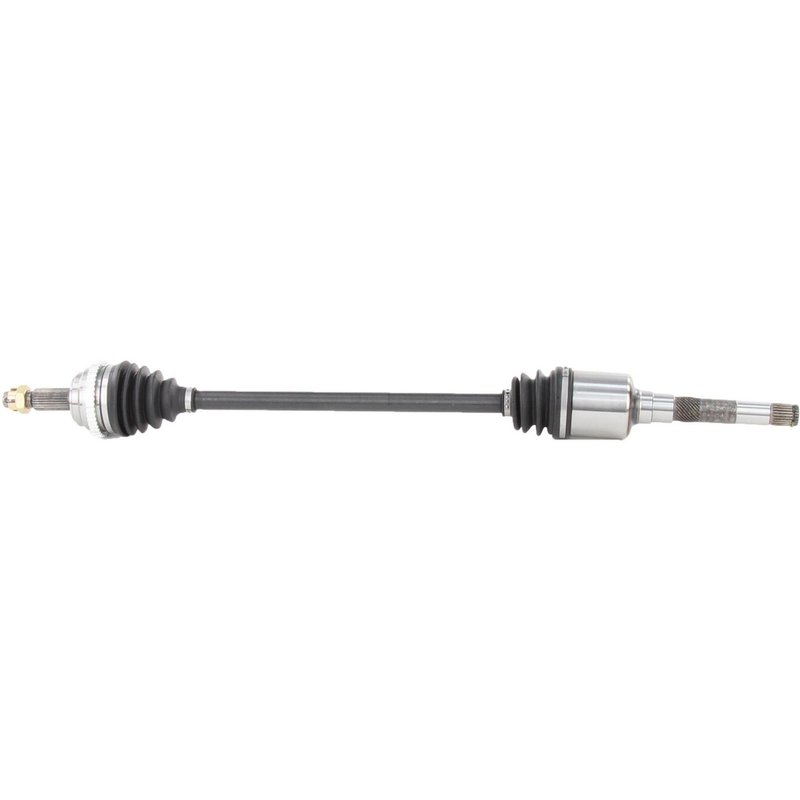

TrakMotive MI-8090 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft MI-8090

The TrakMotive CV Axle Shaft MI-8090 is designed specifically for Dodge and Plymouth Neon models, providing reliable driveline performance. This new CV axle shaft features a robust construction with precise specifications to ensure compatibility and durability.

• Compatible with Dodge and Plymouth Neon vehicles
• Includes ABS tone ring with 46 toothed ring teeth
• Neoprene boot material for enhanced durability
• Hex axle nut included with cotter pin locking mechanism
• Overall compressed length of 37.52 inches (953 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering quality CV components engineered for direct fitment and reliable driveline operation. This line emphasizes precise fitment attributes such as spline counts, boot materials, and ABS ring integration, ensuring that each axle shaft meets the specific requirements of the vehicle application. The MI-8090 model exemplifies this approach with its detailed specifications tailored for the Dodge and Plymouth Neon.

Technical Specifications and Features

The MI-8090 CV axle shaft includes a 46-tooth ABS ring with a toothed design, which is essential for accurate wheel speed sensor readings. The neoprene boot material offers resistance to wear and environmental factors, protecting the joint from contaminants. The axle nut is a hex type, measuring 1 1/4 inches (32 mm) across the flats, with a length of 1 1/2 inches (37 mm) and a height of 6/7 inches (22 mm). It features a cotter pin locking mechanism to secure the nut in place. The inboard joint is a male type with 25 splines, while the outboard joint is conventional with 26 splines, ensuring proper connection and torque transfer. The overall compressed length of 37.52 inches (953 mm) matches the OEM specifications for the intended vehicles.

Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Dodge and Plymouth Neon
• Restores proper ABS sensor function with included toothed ABS tone ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage and contamination with durable neoprene boots
• Secures wheel hub connection with included cotter pin locking axle nut

Installation Notes and Tips

When installing the TrakMotive MI-8090 CV axle shaft, ensure the axle nut is torqued to manufacturer specifications and secured with the cotter pin to prevent loosening. Verify the ABS tone ring is properly aligned with the wheel speed sensor for accurate readings. Inspect the neoprene boots for any damage during installation to maintain joint protection. This axle shaft is designed for direct fitment on compatible Dodge and Plymouth Neon models, simplifying the replacement process.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft MI-8090 is a new, not remanufactured, component built to meet or exceed OEM standards. It includes all necessary hardware such as the axle nut with a locking cotter pin. While specific warranty details are not provided, TrakMotive products typically undergo rigorous quality control to ensure durability and performance in driveline applications.
