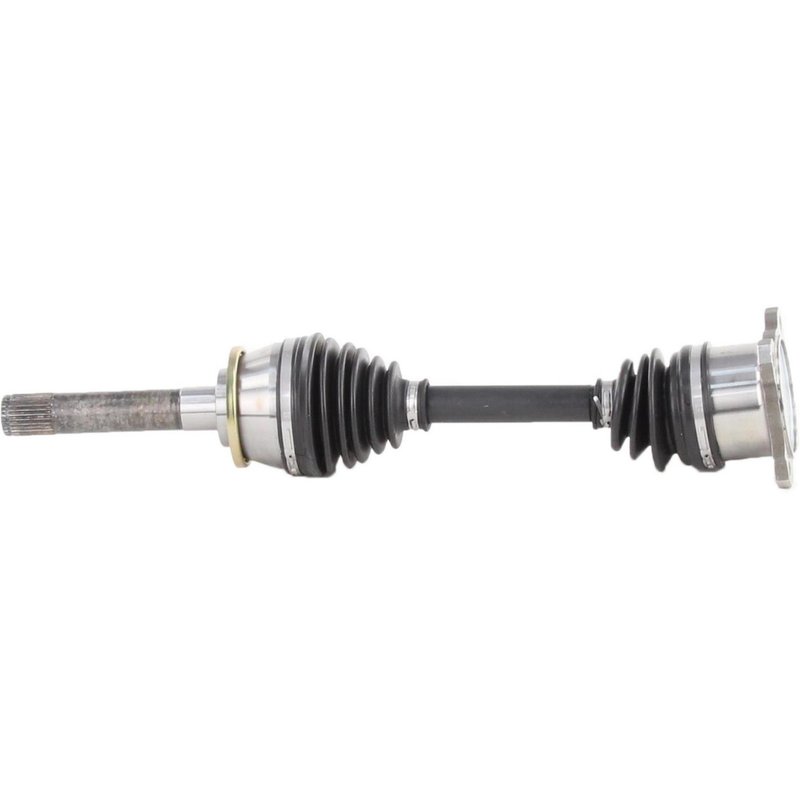

TrakMotive MI-8101 CV Axle Shaft - Front Right

CV Axle Shaft for Mitsubishi Front Right

TrakMotive MI-8101 is a new CV axle shaft for front right applications on select Mitsubishi Montero Sport, Montero, and Mighty Max models. It is built with a neoprene boot, a flange-style inboard connection, and a conventional outboard joint for direct driveline service.

This CV axle shaft is part of the TrakMotive CV Axle Shaft line and is engineered for replacement use on Mitsubishi front right driveline applications. The MI-8101 is a direct-fit option for vehicles that need a new axle assembly with the correct spline count and compressed length for the listed applications.

• New CV axle shaft for front right driveline replacement
• Neoprene boot material
• Inboard joint type: flange
• Inboard shaft connection style: flange
• Outboard joint type: conventional
• Outboard shaft connection style: conventional
• 28 outboard splines
• Overall compressed length: 20.98 in. (533 mm)
• No ABS tone ring included
• Axle nut not included

Compatible with Mitsubishi Montero Sport front right applications from 1997-2004, Mitsubishi Montero front right applications from 1992-1996, and Mitsubishi Mighty Max front right applications from 1992-1994. This part cross-references Cardone New 66-3354 for the same application.

Common Replacement Uses

• Front right axle shaft wear or joint noise
• Boot cracking or grease loss at the CV joint
• Vibration during acceleration from a worn driveline shaft
• Clicking or binding from a damaged outboard joint
• Replacement after axle removal or driveline service

Installation Notes

Verify front right fitment, spline count, and compressed length before installation. Because no axle nut is included, confirm the correct retaining hardware for the vehicle before service. ABS-equipped vehicles should be checked against the application notes, since this axle does not include an ABS tone ring.

Quality Assurance

TrakMotive backs this axle shaft with a limited lifetime warranty. The manufacturer states that its products are produced by an ISO 9001:1007 and TS 16949:2009 certified company.
