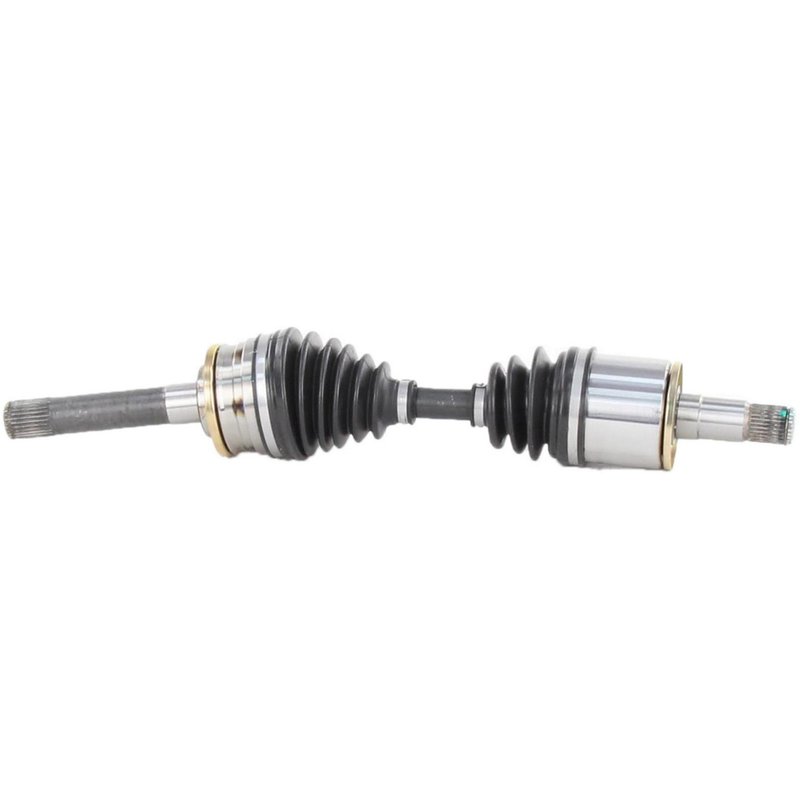

TrakMotive MI-8105 CV Axle Shaft - Front Left
| Brand | TrakMotive MI-8105 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Included | No |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 28 |
| Number Of Outboard Splines | 28 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 23.11 |
| Overall Compressed Length (mm) | 587 |
| Product line | CV Axle Shaft |
| Fits | Dodge and Mitsubishi · 8 vehicles |
New CV axle shaft. Built as a fresh replacement part, not remanufactured.
Neoprene boot material. Helps protect the joint from dirt and moisture.
ISO certified company. Made by a manufacturer certified to ISO 9001 and TS 16949 standards.
Cross-references Dayco 89101, TrakMotive MI-8105 and Walker Exhaust 93203 for the same application. See all 8.
CV Axle Shaft for Ram 50, Mighty Max, Montero, Raider
Restore front driveline performance with this TrakMotive CV Axle Shaft, part number MI-8105. It is a new axle assembly built for front left applications on select Dodge and Mitsubishi models, including Ram 50, Mighty Max, Montero, and Raider.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: MI-8105
- New replacement axle shaft
- Boot material: Neoprene
- Inboard joint type: Male
- Inboard shaft connection style: Male
- Outboard joint type: Conventional
- Outboard shaft connection style: Conventional
- 28 inboard splines and 28 outboard splines
- Overall compressed length: 23.11 in. (587 mm)
- ABS tone ring not included
- Axle nut not included
Product Details
TrakMotive MI-8105 is a front left CV axle shaft for 1989 Dodge Raider, 1989-1991 Mitsubishi Montero, and 1990-1991 Dodge Ram 50 and Mitsubishi Mighty Max. This axle shaft uses a male inboard connection and a conventional outboard joint, with 28 splines at both ends for the listed applications. TrakMotive identifies this axle as a new part built under ISO 9001:1007 and TS 16949:2009 certified quality systems.
This part cross-references Dayco 89101 for the same application.
What It Helps Fix
- Clicking or popping from a worn front CV joint
- Vibration during acceleration from a damaged axle shaft
- Grease leakage from a torn or deteriorated boot
- Noise caused by excessive axle play or spline wear
- Front left driveline failure on the listed Dodge and Mitsubishi vehicles
Installation Notes and Tips
Verify spline count, compressed length, and front left position before installation. This axle does not include an axle nut or ABS tone ring, so confirm those components are already present or sourced separately as needed for the vehicle. Check the hub, seals, and surrounding suspension parts for wear before installing the new axle shaft.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. The part is manufactured under ISO 9001:1007 and TS 16949:2009 certified quality systems for consistent production control.
| Year | Make | Model | Drive Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 1991 | Dodge | Ram 50 | 4WD | Manual | 3.0L | V6 | Front Left | CV Axle Shaft |
| 1991 | Mitsubishi | Mighty Max | 4WD | Manual | 3.0L | V6 | Front Left | CV Axle Shaft |
| 1991 | Mitsubishi | Montero | 4WD | Manual | 3.0L | V6 | Front Left | CV Axle Shaft |
| 1990 | Dodge | Ram 50 | 4WD | Manual | 3.0L | V6 | Front Left | CV Axle Shaft |
| 1990 | Mitsubishi | Mighty Max | 4WD | Manual | 3.0L | V6 | Front Left | CV Axle Shaft |
| 1990 | Mitsubishi | Montero | 4WD | Manual | 3.0L | V6 | Front Left | CV Axle Shaft |
| 1989 | Dodge | Raider | 4WD | Manual | 3.0L | V6 | Front Left | CV Axle Shaft |
| 1989 | Mitsubishi | Montero | 4WD | Manual | 3.0L | V6 | Front Left | CV Axle Shaft |
