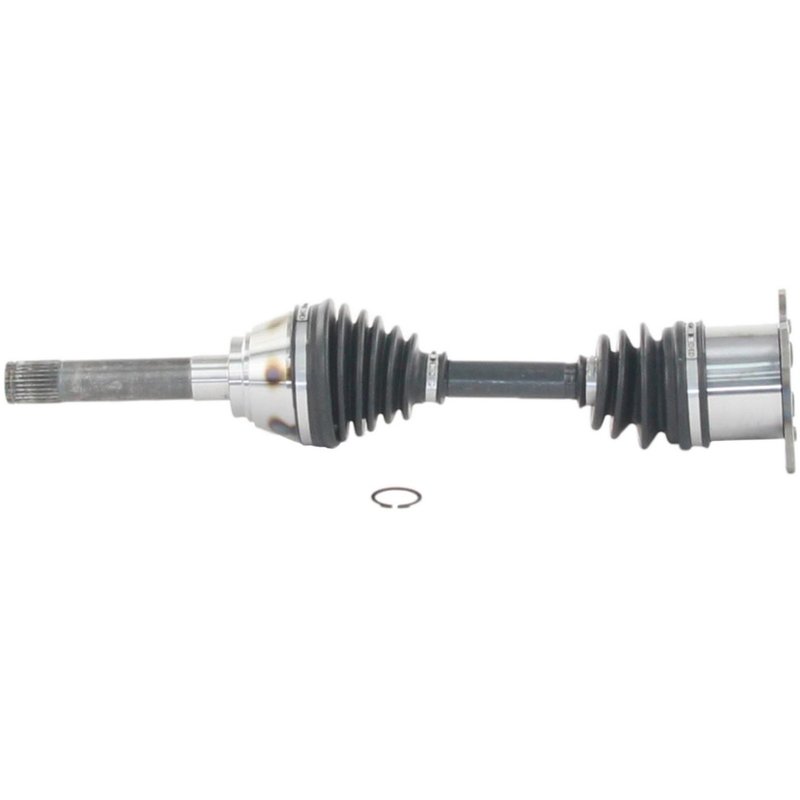

TrakMotive MI-8107 CV Axle Shaft - Front Right
| Brand | TrakMotive MI-8107 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Included | No |
| Boot Material | Neoprene |
| Inboard Joint Type | Flange |
| Inboard Shaft Connection Style | Flange |
| New Or Remanufactured | New |
| Number Of Outboard Splines | 28 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 20.08 |
| Overall Compressed Length (mm) | 510 |
| Product line | CV Axle Shaft |
| Fits | Dodge, Mitsubishi, and Chrysler · 44 vehicles |
New CV axle shaft. Fresh replacement part for driveline service.
Neoprene boot material. Helps protect the joint from dirt and moisture.
Flange inboard connection. Conventional outboard design for straightforward installation.
Cross-references Cardone New 66-3136, Cardone Reman 60-3136 and Dayco 89102 for the same application. See all 20.
CV Axle Shaft for Front Right Applications
The TrakMotive MI-8107 CV axle shaft is a new driveline replacement for front right applications on select Dodge, Mitsubishi, and Chrysler vehicles. It is built with a neoprene boot, a flange-style inboard connection, and a conventional outboard joint for direct-fit service on listed applications.
TrakMotive’s CV Axle Shaft line focuses on application-specific replacement axles for driveline repair. This MI-8107 axle is engineered for the front right position and is listed for vehicles such as the Dodge Ram 50, Mitsubishi Mighty Max, and Mitsubishi Montero.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: MI-8107
- New axle shaft construction
- Front right position
- Neoprene boot material
- Inboard joint type: flange
- Outboard joint type: conventional
- 28 outboard splines
- Overall compressed length: 20.08 in. (510 mm)
- No ABS tone ring included
- Axle nut not included
Detailed Description
The TrakMotive MI-8107 is a CV axle shaft for front right driveline service on select 1982-1993 applications, including Dodge D50, Dodge Power Ram 50, Dodge Ram 50, Dodge Colt, Dodge Raider, Chrysler New Yorker, Mitsubishi Mighty Max, and Mitsubishi Montero. This part number, MI-8107, is a direct replacement option for vehicles that use a flange inboard connection and a conventional outboard shaft connection with 28 outboard splines.
Built as a new axle shaft, this unit uses a neoprene boot and is listed without an ABS tone ring. It is intended for non-ABS applications unless otherwise noted by the vehicle listing. Cross-reference part numbers include Cardone New 66-3136 and Dayco 89102 for the same application.
Common Repair Uses
- Restoring front-wheel drive or 4x4 front axle operation after CV joint wear
- Addressing clicking or popping noises during turns
- Replacing a torn boot that has allowed grease loss and contamination
- Correcting vibration or shudder from a worn axle shaft assembly
- Repairing axle-related driveline play on listed Dodge, Mitsubishi, and Chrysler models
Installation Notes and Tips
Verify front right fitment by year, make, model, spline count, and shaft length before installation. Confirm whether the vehicle uses ABS, since this axle does not include an ABS tone ring. The axle nut is not included, so reuse or replacement should be planned separately based on the vehicle service procedure.
Fits 1982 Dodge D50, front right. Fits 1983-1986 Dodge Power Ram 50, front right. Fits 1983-1993 Dodge Ram 50, front right. Fits 1983-1991 Mitsubishi Mighty Max, front right. Fits 1983-1991 Mitsubishi Montero, front right. Fits 1987-1989 Dodge Raider, front right. Fits 1984 Dodge Colt, front right. Fits 1989 Chrysler New Yorker, front right.
Quality Assurance
TrakMotive lists this CV axle shaft as a new part and notes ISO 9001:1007 and TS 16949:2009 certified company standards. The MI-8107 also carries a limited lifetime warranty.
| Year | Make | Model | Submodel | Drive Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 1993 | Dodge | Ram 50 | — | 4WD | — | 2.4L | L4 | Front Right | CV Axle Shaft |
| 1992 | Dodge | Ram 50 | — | 4WD | — | 2.4L | L4 | Front Right | CV Axle Shaft |
| 1991 | Dodge | Ram 50 | — | 4WD | Automatic | 3.0L | V6 | Front Right | CV Axle Shaft |
| 1991 | Dodge | Ram 50 | — | 4WD | — | 2.4L | L4 | Front Right | CV Axle Shaft |
| 1991 | Mitsubishi | Mighty Max | — | 4WD | Automatic | 3.0L | V6 | Front Right | CV Axle Shaft |
| 1991 | Mitsubishi | Montero | — | 4WD | Automatic | 3.0L | V6 | Front Right | CV Axle Shaft |
| 1990 | Dodge | Ram 50 | — | 4WD | Automatic | 3.0L | V6 | Front Right | CV Axle Shaft |
| 1990 | Dodge | Ram 50 | — | 4WD | — | 2.4L | L4 | Front Right | CV Axle Shaft |
| 1990 | Mitsubishi | Mighty Max | — | 4WD | Automatic | 3.0L | V6 | Front Right | CV Axle Shaft |
| 1990 | Mitsubishi | Montero | — | 4WD | Automatic | 3.0L | V6 | Front Right | CV Axle Shaft |
| 1989 | Chrysler | New Yorker | — | — | — | 2.2L | L4 | Front Right | CV Axle Shaft |
| 1989 | Dodge | Raider | — | 4WD | Automatic | 3.0L | V6 | Front Right | CV Axle Shaft |
| 1989 | Dodge | Raider | — | 4WD | — | 2.6L | L4 | Front Right | CV Axle Shaft |
| 1989 | Dodge | Ram 50 | — | 4WD | — | 2.6L | L4 | Front Right | CV Axle Shaft |
| 1989 | Mitsubishi | Mighty Max | — | 4WD | — | 2.6L | L4 | Front Right | CV Axle Shaft |
| 1989 | Mitsubishi | Montero | — | 4WD | Automatic | 3.0L | V6 | Front Right | CV Axle Shaft |
| 1989 | Mitsubishi | Montero | — | 4WD | — | 2.6L | L4 | Front Right | CV Axle Shaft |
| 1988 | Dodge | Raider | — | — | — | — | — | Front Right | CV Axle Shaft |
| 1988 | Dodge | Ram 50 | — | 4WD | — | — | — | Front Right | CV Axle Shaft |
| 1988 | Mitsubishi | Mighty Max | — | 4WD | — | — | — | Front Right | CV Axle Shaft |
| 1988 | Mitsubishi | Montero | — | 4WD | — | — | — | Front Right | CV Axle Shaft |
| 1987 | Dodge | Raider | — | — | — | — | — | Front Right | CV Axle Shaft |
| 1987 | Dodge | Ram 50 | — | 4WD | — | — | — | Front Right | CV Axle Shaft |
| 1987 | Mitsubishi | Mighty Max | — | 4WD | — | — | — | Front Right | CV Axle Shaft |
| 1987 | Mitsubishi | Montero | — | 4WD | — | — | — | Front Right | CV Axle Shaft |
| 1986 | Dodge | Power Ram 50 | — | 4WD | — | — | — | Front Right | CV Axle Shaft |
| 1986 | Dodge | Ram 50 | — | — | — | — | — | Front Right | CV Axle Shaft |
| 1986 | Mitsubishi | Mighty Max | — | 4WD | — | — | — | Front Right | CV Axle Shaft |
| 1986 | Mitsubishi | Montero | — | 4WD | — | — | — | Front Right | CV Axle Shaft |
| 1985 | Dodge | Power Ram 50 | — | 4WD | — | — | — | Front Right | CV Axle Shaft |
| 1985 | Dodge | Ram 50 | — | 4WD | — | — | — | Front Right | CV Axle Shaft |
| 1985 | Mitsubishi | Mighty Max | — | 4WD | — | — | — | Front Right | CV Axle Shaft |
| 1985 | Mitsubishi | Montero | — | 4WD | — | — | — | Front Right | CV Axle Shaft |
| 1984 | Dodge | Colt | E | FWD | — | 1.4L | L4 | Front Right | CV Axle Shaft |
| 1984 | Dodge | Colt | DL | FWD | — | 1.4L | L4 | Front Right | CV Axle Shaft |
| 1984 | Dodge | Power Ram 50 | — | 4WD | — | — | — | Front Right | CV Axle Shaft |
| 1984 | Dodge | Ram 50 | — | 4WD | — | — | — | Front Right | CV Axle Shaft |
| 1984 | Mitsubishi | Mighty Max | — | 4WD | — | — | — | Front Right | CV Axle Shaft |
| 1984 | Mitsubishi | Montero | — | 4WD | — | — | — | Front Right | CV Axle Shaft |
| 1983 | Dodge | Power Ram 50 | — | 4WD | — | — | — | Front Right | CV Axle Shaft |
| 1983 | Dodge | Ram 50 | — | 4WD | — | — | — | Front Right | CV Axle Shaft |
| 1983 | Mitsubishi | Mighty Max | — | 4WD | — | — | — | Front Right | CV Axle Shaft |
| 1983 | Mitsubishi | Montero | — | 4WD | — | — | — | Front Right | CV Axle Shaft |
| 1982 | Dodge | D50 | — | 4WD | — | — | — | Front Right | CV Axle Shaft |
