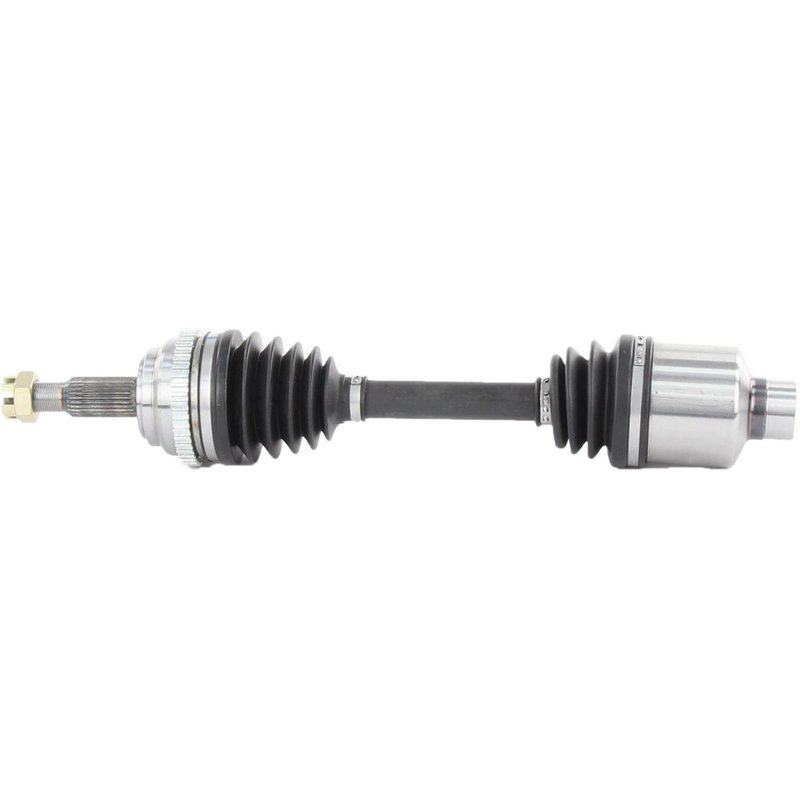

TrakMotive MI-8111 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft MI-8111

The TrakMotive CV Axle Shaft MI-8111 is engineered for reliable driveline performance in Chrysler and Dodge vehicles, specifically designed for the Neon and PT Cruiser models. This new CV axle shaft ensures precise fitment and durability for your vehicle's front-wheel-drive system.

• Compatible with Chrysler Neon and Dodge PT Cruiser
• Includes ABS tone ring with 46 toothed abs ring teeth
• Neoprene boot material for enhanced durability
• Hex head axle nut with cotter pin locking mechanism included
• Overall compressed length of 20.63 inches (524 mm)
• Female inboard joint with 32 splines and conventional outboard joint with 26 splines

Detailed Product Features and Specifications

The TrakMotive CV Axle Shaft MI-8111 is part of the CV Axle Shaft product line, designed to meet OEM specifications for driveline and axle components. This CV axle shaft features a neoprene boot that provides resistance to wear and environmental damage, helping to maintain joint integrity. The inboard joint uses a female connection style with 32 splines, while the outboard joint is conventional with 26 splines, ensuring proper engagement and smooth power transfer.

The included ABS tone ring has 46 teeth and a toothed ring type, which is essential for accurate wheel speed sensor readings. The axle nut is a hex head type measuring 1 1/4 inches (32 mm) across flats, with a height of 22 mm (6/7 inches) and a length of 37 mm (1 1/2 inches). It features a cotter pin locking mechanism and a thread size of M22*1.5, providing secure fastening and preventing loosening during operation.

Applications and Common Repair Solutions

• Replacement for worn or damaged CV axle shafts on Chrysler Neon and Dodge PT Cruiser
• Fixes issues related to torn or leaking CV boots
• Resolves vibrations or clicking noises during turns caused by joint wear
• Restores proper ABS sensor function with included tone ring
• Addresses axle nut fastening problems with included locking cotter pin

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft MI-8111, ensure the axle nut is torqued to manufacturer specifications and secured with the cotter pin to prevent loosening. Verify the ABS tone ring is properly aligned with the wheel speed sensor for accurate readings. Use appropriate tools for the hex head axle nut (1 1/4 inch or 32 mm) and inspect the neoprene boot for any damage during installation. Proper lubrication of the joints before assembly is recommended to extend service life.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component built to meet or exceed OEM standards for Chrysler and Dodge vehicles. The use of durable materials such as neoprene for the boot and precision-machined splines ensures long-lasting performance. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to support reliable driveline operation.
