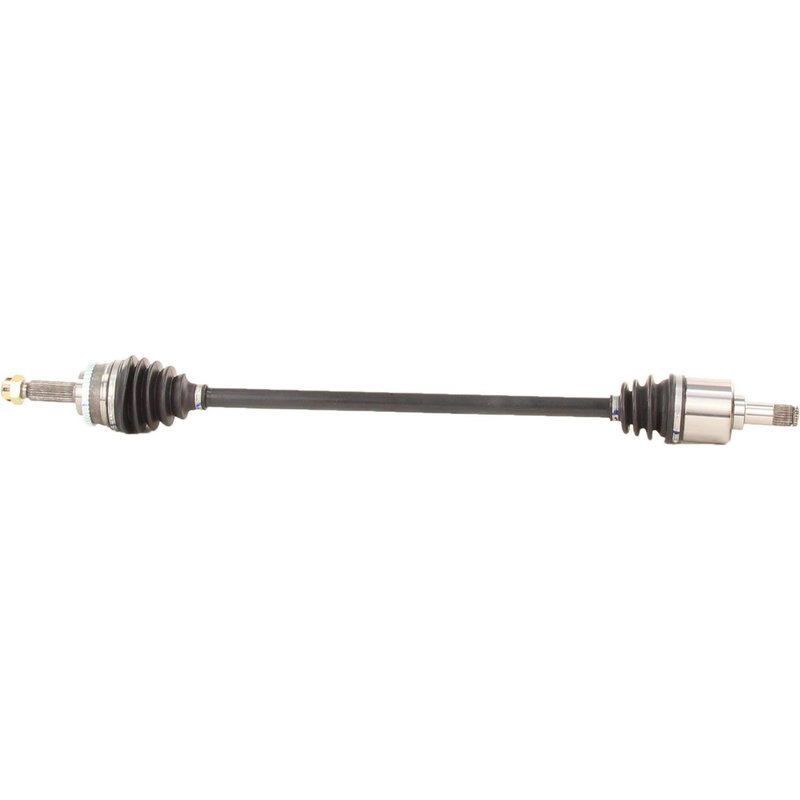

TrakMotive MI-8112 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft MI-8112 for Mitsubishi Mirage

The TrakMotive CV Axle Shaft MI-8112 is designed specifically for Mitsubishi Mirage models, providing reliable driveline performance. This new CV axle shaft features a robust construction with precise specifications to ensure compatibility and durability.

• Compatible with Mitsubishi Mirage vehicles
• Includes ABS tone ring with 43 toothed ring teeth
• Neoprene boot material for enhanced durability and protection
• Hex head axle nut included with cotter pin locking mechanism
• Overall compressed length of 36.85 inches (936 mm)
• Male inboard joint type with 25 splines
• Conventional outboard joint type with 25 splines

Detailed Specifications and Features

This TrakMotive CV Axle Shaft MI-8112 is engineered with a 43-tooth ABS ring that uses a toothed design, ensuring accurate wheel speed sensor readings. The included ABS tone ring supports anti-lock braking system functionality. The axle nut features a hex head measuring 1 1/4 inches (32 mm) across flats, with a height of 22 mm (6/7 inches) and a length of 37 mm (1 1/2 inches). It uses an M22 x 1.5 thread size and locks securely with a cotter pin to prevent loosening during operation.

The neoprene boot material offers resistance to wear and environmental factors, protecting the CV joint from contaminants. The inboard joint is a male type with 25 splines, matching the inboard shaft connection style, while the outboard joint is conventional with 25 splines, designed for a conventional shaft connection style. The overall compressed length of 36.85 inches (936 mm) ensures proper fitment and alignment within the driveline system.

About the TrakMotive CV Axle Shaft Product Line

The TrakMotive CV Axle Shaft product line focuses on delivering precise fitment and reliable driveline components for various vehicle applications. This line emphasizes quality materials and accurate specifications, such as spline counts and ABS ring integration, to maintain vehicle safety and performance. The MI-8112 model exemplifies these standards with its detailed engineering tailored for the Mitsubishi Mirage.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Mitsubishi Mirage
• Restores proper ABS sensor function with included ABS tone ring
• Eliminates axle vibration or clicking noises caused by joint wear
• Prevents grease leakage with durable neoprene boot
• Secures wheel hub connection with included axle nut and cotter pin

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft MI-8112 on a Mitsubishi Mirage, ensure the axle nut is torqued to manufacturer specifications and secured with the cotter pin to prevent loosening. Inspect the neoprene boot for any damage during installation to maintain joint protection. Verify the ABS tone ring is properly aligned with the wheel speed sensor for accurate ABS operation. It is recommended to replace axle nuts and cotter pins with new components included in the kit.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft MI-8112 is a new, not remanufactured, component built to meet OEM standards for fit and function. The product undergoes quality control inspections to ensure durability and performance. Warranty coverage details should be confirmed with the product documentation or supplier, as they may vary.
