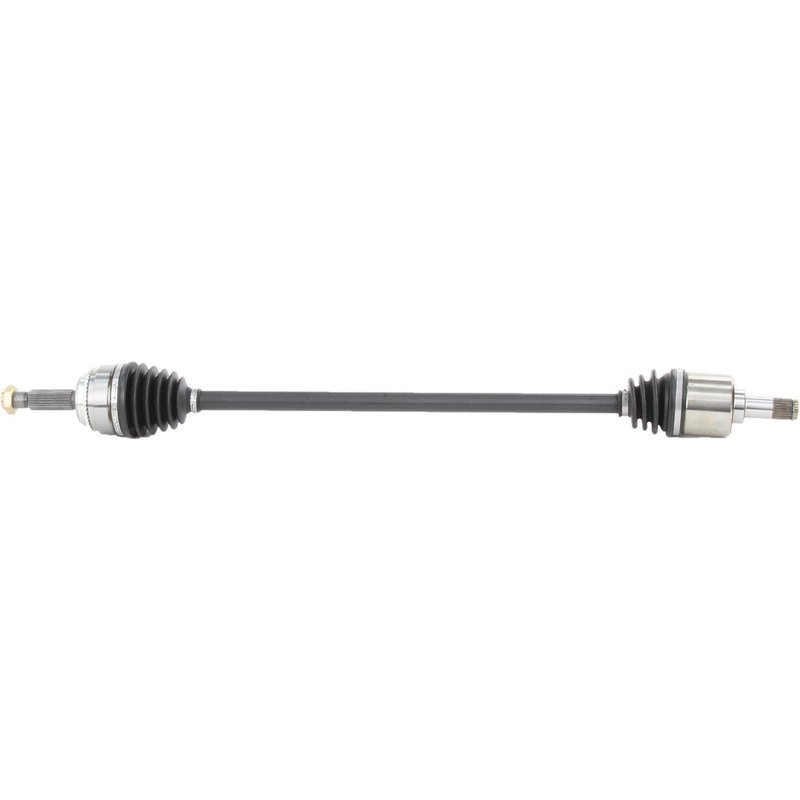

TrakMotive MI-8114 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft MI-8114 for Mitsubishi Lancer

The TrakMotive CV Axle Shaft MI-8114 is engineered specifically for Mitsubishi Lancer models, providing reliable driveline performance. Designed as a new replacement part, this CV axle shaft ensures proper fit and function for your vehicle's front-wheel-drive system.

• Compatible with Mitsubishi Lancer vehicles
• Includes a self-locking hex axle nut (M22*1.5 thread size)
• Neoprene boot material for enhanced durability
• 43-tooth ABS tone ring included for accurate wheel speed sensing
• Overall compressed length of 37.09 inches (942 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components that meet OEM specifications. This line includes CV axle shafts designed with quality materials and features such as ABS tone rings and durable boots to maintain vehicle safety and performance. The MI-8114 model exemplifies this approach by integrating a toothed ABS ring and a neoprene boot to protect the joint from contaminants and wear.

Technical Specifications and Features

This CV axle shaft features a male inboard joint type with 25 splines on both the inboard and outboard shafts, ensuring secure connection and smooth power transfer. The outboard joint uses a conventional connection style, while the axle nut is a 1 1/4 inch hex head with a 3/5 inch (15 mm) height and 1 1/2 inch (37 mm) length. The included self-locking axle nut helps maintain secure installation under driving conditions. The ABS tone ring has 43 teeth and is of the toothed type, which is essential for accurate ABS sensor readings.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Mitsubishi Lancer
• Restores proper ABS sensor function with included ABS tone ring
• Eliminates axle vibration or clicking noises during turns
• Prevents grease leakage with durable neoprene boot
• Addresses axle nut loosening issues with self-locking design

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft MI-8114, ensure the axle nut is torqued to manufacturer specifications to maintain the self-locking feature. Inspect the axle splines for proper engagement and verify the ABS tone ring is correctly positioned for sensor alignment. Use appropriate tools for the 1 1/4 inch hex axle nut to avoid damage. It is recommended to replace the axle nut included with the shaft to ensure secure fitment.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft MI-8114 is a new, remanufactured-free component designed to meet or exceed OEM standards. The neoprene boot material and robust construction contribute to long service life. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliability and performance in Mitsubishi Lancer driveline applications.
