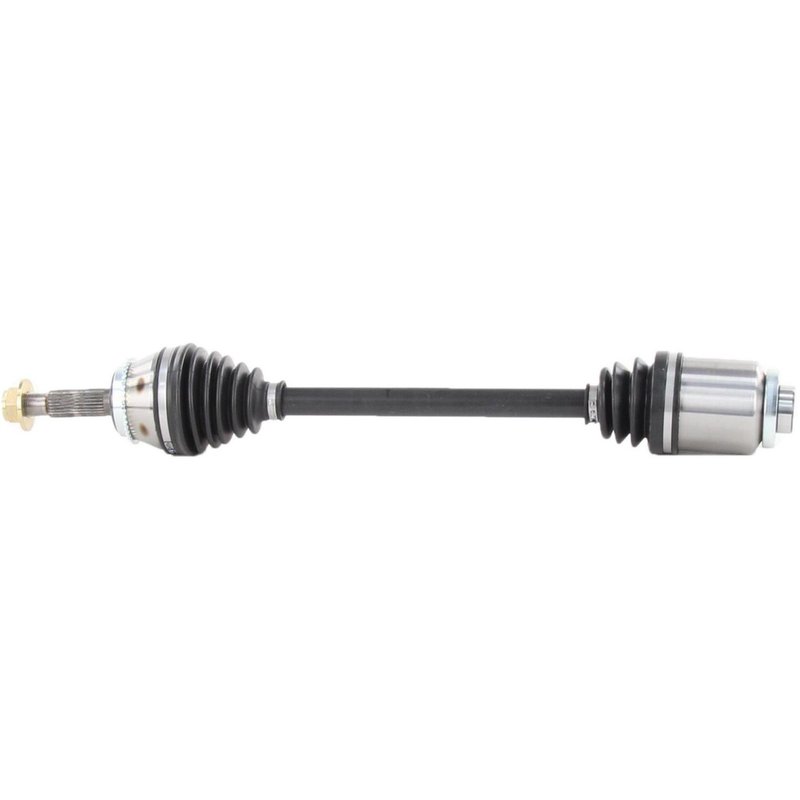

TrakMotive MI-8125 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft MI-8125 for Mitsubishi Outlander

The TrakMotive CV Axle Shaft MI-8125 is engineered specifically for Mitsubishi Outlander models, providing reliable driveline performance. This new CV axle shaft includes essential components designed to maintain smooth power transfer and vehicle stability.

• Compatible with Mitsubishi Outlander vehicles
• Includes a self-locking hex axle nut (M22*1.5 thread size)
• Neoprene boot material for enhanced durability and protection
• 43-tooth ABS ring with a toothed tone ring included
• Overall compressed length of 26.65 inches (677 mm)
• Female inboard joint and conventional outboard joint types
• Axle nut dimensions: 1 1/4 inch hex size, 5/6 inch height, 1 1/3 inch length

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise fitment and durability for driveline and axle components. This line emphasizes quality materials such as neoprene boots and includes necessary hardware like self-locking axle nuts to ensure secure installation. The MI-8125 model exemplifies this approach by combining robust construction with exact specifications tailored for the Mitsubishi Outlander.

Technical Specifications and Features

The MI-8125 CV axle shaft features a 43-tooth ABS ring with a toothed tone ring included, which supports accurate wheel speed sensor readings. The neoprene boot material offers resistance to wear and environmental factors, extending the life of the joint. The inboard joint uses a female connection style with 28-2t splines, while the outboard joint is conventional with 25 splines. The included axle nut is self-locking, hex-headed, and measures 31.8 mm across flats, ensuring a secure fit during installation.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Mitsubishi Outlander
• Resolves issues related to torn or leaking CV boots
• Addresses axle shaft vibration or clicking noises during turns
• Restores proper ABS sensor function with included tone ring
• Fixes loose or stripped axle nut connections

Installation Notes and Tips

When installing the TrakMotive MI-8125 CV axle shaft, ensure the axle nut is torqued to manufacturer specifications to maintain the self-locking feature. Inspect the mating surfaces for cleanliness and damage before assembly. The neoprene boot should be checked for proper seating to prevent contamination. This part is designed for direct replacement on Mitsubishi Outlander models, simplifying installation without modification.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft MI-8125 is a new, not remanufactured, component built to meet OEM standards. It includes a self-locking axle nut and a durable neoprene boot to ensure long service life. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to support reliable performance in driveline applications.
