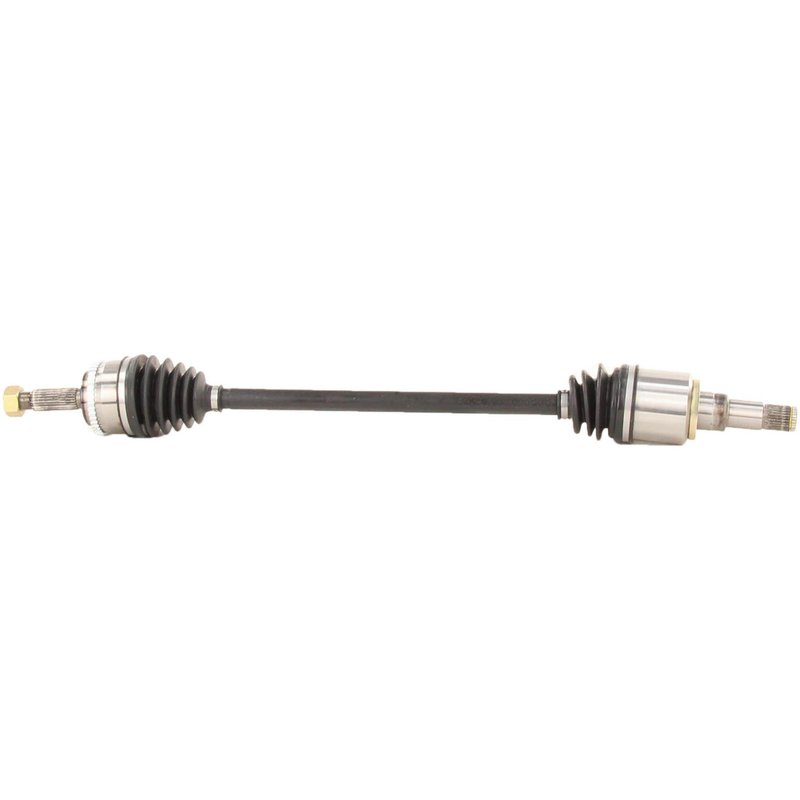

TrakMotive MI-8127 CV Axle Shaft - Rear Right

Overview of TrakMotive CV Axle Shaft MI-8127 for Mitsubishi Endeavor

The TrakMotive CV Axle Shaft MI-8127 is engineered specifically for Mitsubishi Endeavor models, providing reliable driveline performance. Designed as a new replacement part, this CV axle shaft ensures proper fit and function for your vehicle's front-wheel or all-wheel drive system.

• Compatible with Mitsubishi Endeavor vehicles
• Includes a toothed ABS tone ring with 43 teeth for accurate wheel speed sensing
• Equipped with a neoprene boot for enhanced durability and protection
• Features a male inboard joint with 28 splines and a conventional outboard joint with 25 splines
• Comes with a hex head axle nut (1 1/4 inch hex size) with cotter pin locking mechanism
• Overall compressed length of 34.25 inches (870 mm) for precise fitment

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering quality CV components designed to meet OEM specifications. This line includes shafts built with durable materials and precise engineering to maintain driveline integrity. The MI-8127 model exemplifies this approach by incorporating features such as a neoprene boot and a toothed ABS ring to ensure compatibility and longevity in Mitsubishi Endeavor vehicles.

Technical Specifications and Features

The MI-8127 CV axle shaft includes a 43-tooth ABS ring that is toothed and integrated into the assembly, providing accurate ABS sensor readings. The axle nut included is a hex head type measuring 1 1/4 inches (31.6 mm) across flats, with a height of 5/7 inches (17.8 mm) and a length of 2 1/7 inches (54.7 mm). It uses an M22 x 1.5 thread size and secures with a cotter pin locking mechanism for safety. The inboard joint is a male type with 28 splines, while the outboard joint is conventional with 25 splines, ensuring proper connection to the drivetrain. The boot is made from neoprene, offering resistance to wear and environmental factors. The overall compressed length of 34.25 inches (870 mm) matches OEM dimensions for direct replacement.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Mitsubishi Endeavor
• Resolves issues related to torn or leaking CV boots
• Addresses axle shaft vibration or clicking noises during turns
• Restores proper ABS sensor function with included toothed ABS ring
• Fixes axle nut thread or locking failures with included cotter pin secured nut

Installation Notes and Tips

When installing the TrakMotive MI-8127 CV axle shaft, ensure the axle nut is torqued to manufacturer specifications and secured with the cotter pin to prevent loosening. Inspect the mating surfaces and splines for damage before installation. The neoprene boot should be checked for proper seating to avoid premature wear. This part is designed for direct fitment on Mitsubishi Endeavor models, but verify vehicle year and drivetrain configuration for compatibility.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft MI-8127 is a new, OEM-quality replacement part manufactured to meet or exceed industry standards. It includes a durable neoprene boot and a precision-toothed ABS ring to maintain vehicle safety systems. While specific warranty details are not provided, TrakMotive products typically come with manufacturer-backed quality assurance to ensure reliable performance in Mitsubishi Endeavor vehicles.
