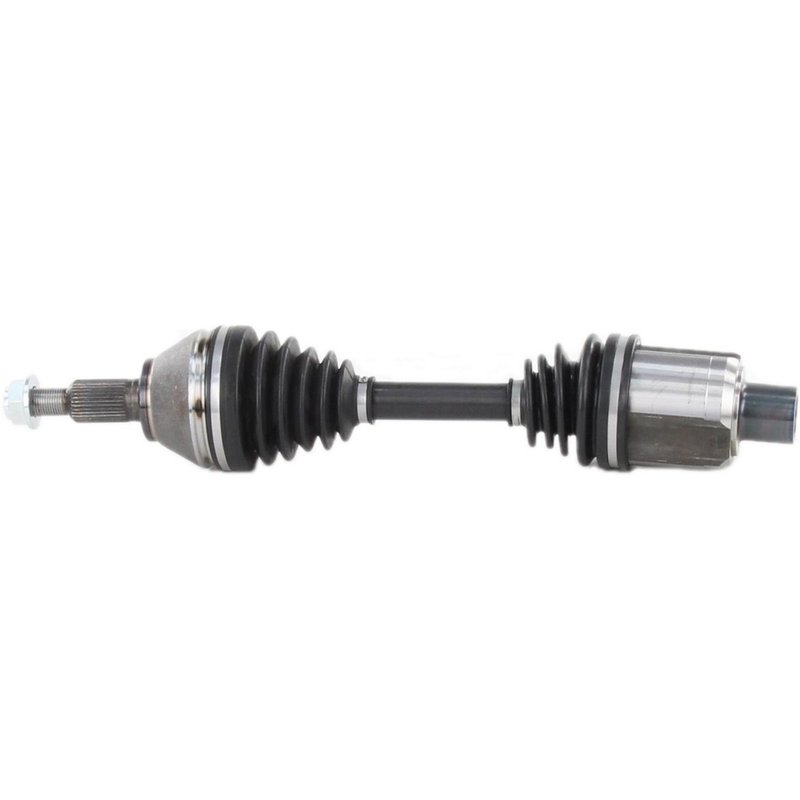

TrakMotive MI-8137 CV Axle Shaft - Front Left or Front Right
| Brand | TrakMotive MI-8137 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1 2/5 |
| Axle Nut Hex Size (mm) | 35.5 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 3/5 |
| Axle Nut Length (mm) | 41 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M24*2 |
| Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Female |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 29 |
| Number Of Outboard Splines | 33 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 23.78 |
| Overall Compressed Length (mm) | 604 |
| Product line | CV Axle Shaft |
| Fits | Dodge · 8 vehicles |
New CV axle shaft. Built as a fresh replacement for dependable driveline service.
Neoprene boot. Helps resist wear while keeping the joint protected.
Self-lock axle nut included. Convenient hardware for a more complete installation.
Cross-references Cardone Reman 60-3316, Dayco 72286 and TrakMotive MI-8137 for the same application. See all 22.
CV Axle Shaft for Ram 1500 Front Applications
TrakMotive MI-8137 is a new CV axle shaft for select 2002-2005 Dodge Ram 1500 front left and front right positions. It is built with a neoprene boot, a female inboard connection, and a conventional outboard joint for direct driveline service on the listed applications.
Key Features
- Fits 2002-2005 Dodge Ram 1500, front right
- Fits 2002-2005 Dodge Ram 1500, front left
- New CV axle shaft construction
- Neoprene boot material for driveline protection
- Female inboard shaft connection style
- Conventional outboard shaft connection style
- Includes axle nut with self-lock design
- Overall compressed length: 23.78 in. (604 mm)
- 29 inboard splines and 33 outboard splines
- TrakMotive MI-8137
Product Details
TrakMotive MI-8137 is a CV axle shaft for Dodge Ram 1500 front axle service on 2002, 2003, 2004, and 2005 models. The axle uses a female inboard joint, a conventional outboard joint, and a neoprene boot to support the driveline connection specified for these Ram 1500 front left and front right applications. The included axle nut uses an M24x2 thread, hex head, and self-locking design. TrakMotive MI-8137 is also referenced by interchange numbers used in the aftermarket for the same application.
This part cross-references Cardone Reman 60-3316 and Dayco 72286 for the same application.
Common Problems This Part Can Address
- Clicking or popping from a worn front CV axle during turns
- Vibration from a damaged axle shaft or worn joints
- Grease leakage from a torn or deteriorated boot
- Clunking during acceleration or load transfer
- Front driveline noise on Dodge Ram 1500 trucks
Installation Notes and Tips
Verify front left or front right placement before ordering. This axle is listed for 2002-2005 Dodge Ram 1500 applications and is not for use on lifted vehicles. Confirm spline count, compressed length, and axle nut specifications against the original part before installation. ABS axles fit non-ABS applications unless otherwise noted, and this unit does not include an ABS tone ring.
Quality Assurance
TrakMotive identifies this axle as a new part from an ISO 9001:1007 and TS 16949:2009 certified company. The MI-8137 is backed by a limited lifetime warranty.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2005 | Dodge | Ram 1500 | 4WD | Front Right | Not for use on lifted vehicles; CV Axle Shaft |
| 2005 | Dodge | Ram 1500 | 4WD | Front Left | Not for use on lifted vehicles; CV Axle Shaft |
| 2004 | Dodge | Ram 1500 | 4WD | Front Right | Not for use on lifted vehicles; CV Axle Shaft |
| 2004 | Dodge | Ram 1500 | 4WD | Front Left | Not for use on lifted vehicles; CV Axle Shaft |
| 2003 | Dodge | Ram 1500 | 4WD | Front Right | Not for use on lifted vehicles; CV Axle Shaft |
| 2003 | Dodge | Ram 1500 | 4WD | Front Left | Not for use on lifted vehicles; CV Axle Shaft |
| 2002 | Dodge | Ram 1500 | 4WD | Front Right | Not for use on lifted vehicles; CV Axle Shaft |
| 2002 | Dodge | Ram 1500 | 4WD | Front Left | Not for use on lifted vehicles; CV Axle Shaft |
