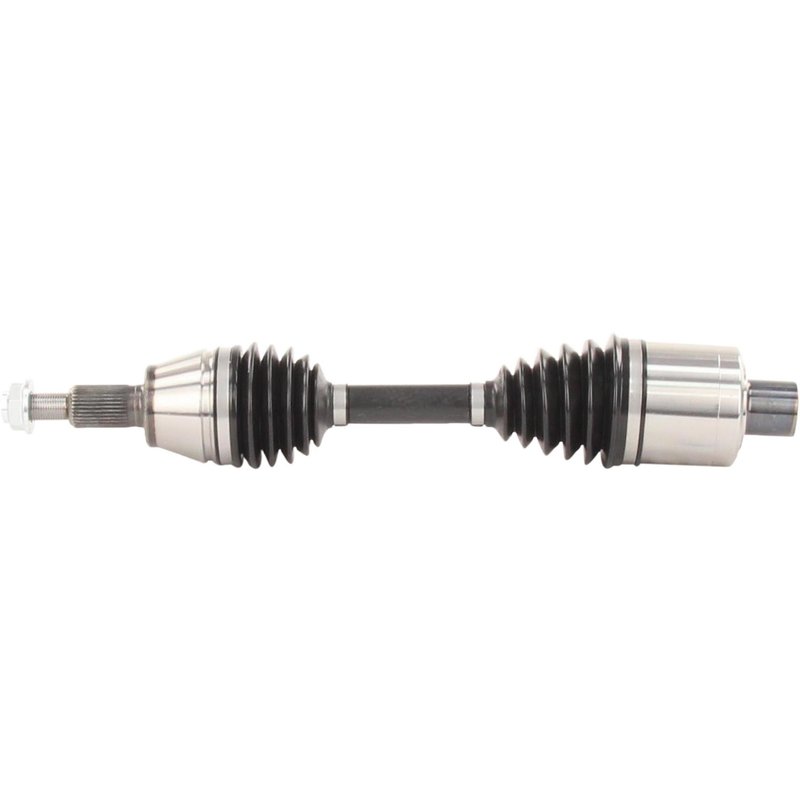

TrakMotive MI-8137HDX CV Axle Shaft - Front
| Brand | TrakMotive MI-8137HDX |
|---|---|
| Position | Front |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.91 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1.4 |
| Axle Nut Hex Size (mm) | 35.5 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.61 |
| Axle Nut Length (mm) | 40.99 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Thread Size | M24*2 |
| Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Spline |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 29 |
| Number Of Outboard Splines | 33 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 23.78 |
| Overall Compressed Length (mm) | 604 |
| Overall Extended Length (in) | 26.13 |
| Overall Extended Length (mm) | 664 |
| Product line | Extreme Climate CV Axle Shaft |
| Fits | Dodge · 4 vehicles |
Extreme climate design. Premium grease and TPE boots help maintain OE performance in extreme temperatures.
New CV axle shaft. A direct replacement for worn driveline components.
Includes axle nut. Self-locking hardware is provided for a cleaner install.
Cross-references TrakMotive MI-8137HDX and 72286XD for the same application. See all 2.
Extreme Climate CV Axle for Ram 1500
TrakMotive MI-8137HDX is a new front CV axle shaft for 2002-2005 Dodge Ram 1500 applications. It is built for extreme temperature service and uses premium 7023B grease with TPE boots to help maintain OE-style performance in hot and cold conditions.
Key Features
- Fits 2002-2005 Dodge Ram 1500, front
- TrakMotive Extreme Climate CV Axle Shaft
- Part number MI-8137HDX
- Premium 7023B grease for temperature-stable lubrication
- TPE boot construction for harsh-weather durability
- New axle assembly with included axle nut
- Axle nut specs: M24 x 2 thread, 35.5 mm hex size, self-locking design
- Inboard joint type: female; outboard joint type: conventional
- Inboard splines: 29; outboard splines: 33
- Overall compressed length: 604 mm; overall extended length: 664 mm
Product Details
The TrakMotive Extreme Climate CV Axle Shaft line is built for vehicles that see wide temperature swings and demanding road conditions. MI-8137HDX uses specialized grease and boot materials to help preserve driveline operation across extreme weather, while maintaining OE-style fit and function for the front axle position on the Dodge Ram 1500. This part cross-references 72286XD for the same application.
Common Issues This Part Can Address
- Clicking or popping noises during turns from a worn CV joint
- Vibration or shudder from a damaged front axle shaft
- Grease loss caused by cracked or deteriorated boots
- Driveline noise related to worn spline or joint interfaces
- Front axle service needs on a 2002-2005 Dodge Ram 1500
Installation Notes and Tips
Verify front axle fitment by year, make, model, and suspension configuration before installation. This application is not for use with lifted or modified suspensions. Inspect axle seals, hub components, and surrounding driveline parts during replacement, and confirm the axle nut thread size and locking style match the vehicle specification. Proper torque procedures should be followed during installation.
Quality Assurance
TrakMotive manufactures this new CV axle shaft for direct replacement use in confirmed front-fit Dodge Ram 1500 applications. The Extreme Climate product line focuses on maintaining OE performance characteristics in severe temperature conditions through specialized grease and boot materials.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2005 | Dodge | Ram 1500 | 4WD | Front | Not For Use With Lifted or Modified Suspensions; Extreme Climate CV Axle Shaft |
| 2004 | Dodge | Ram 1500 | 4WD | Front | Not For Use With Lifted or Modified Suspensions; Extreme Climate CV Axle Shaft |
| 2003 | Dodge | Ram 1500 | 4WD | Front | Not For Use With Lifted or Modified Suspensions; Extreme Climate CV Axle Shaft |
| 2002 | Dodge | Ram 1500 | 4WD | Front | Not For Use With Lifted or Modified Suspensions; Extreme Climate CV Axle Shaft |
