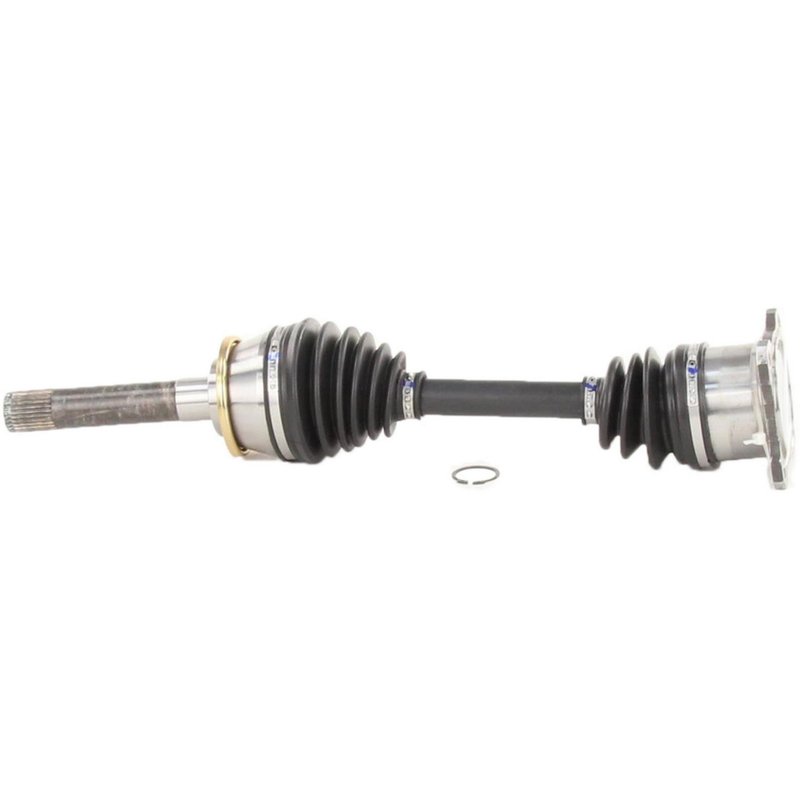

TrakMotive MI-8149 CV Axle Shaft - Front Right
| Brand | TrakMotive MI-8149 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Included | No |
| Boot Material | Neoprene |
| Inboard Joint Type | Flange |
| Inboard Shaft Connection Style | Flange |
| New Or Remanufactured | New |
| Number Of Outboard Splines | 28 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 20.87 |
| Overall Compressed Length (mm) | 530 |
| Product line | CV Axle Shaft |
| Fits | Mitsubishi · 8 vehicles |
New CV axle shaft. Built as a fresh replacement part, not remanufactured.
Neoprene boot material. Helps protect the joint with durable, flexible sealing.
Flange and conventional joints. Uses common connection styles for straightforward service.
Cross-references TrakMotive MI-8149, 80-4210 and 239149 for the same application. See all 6.
Front Right CV Axle Shaft for Montero
TrakMotive MI-8149 is a new front right CV axle shaft for select Mitsubishi Montero applications. It is built with a neoprene boot, a flange-style inboard connection, and a conventional outboard joint for direct driveline replacement on the listed vehicles.
Compatible with 1994-2000 Mitsubishi Montero front right applications, this CV axle shaft is made for vehicles that need a precise replacement for worn or damaged axle assemblies. TrakMotive MI-8149 is engineered as a new part and is backed by the brand’s limited lifetime warranty.
Key Features
- New CV axle shaft for the front right position
- Neoprene boot material for axle boot durability
- Flange inboard joint and flange shaft connection style
- Conventional outboard joint and shaft connection style
- 28 outboard splines
- Overall compressed length: 20.87 in. (530 mm)
- No ABS tone ring included
- No axle nut included
Product Details
TrakMotive MI-8149 is a CV axle shaft for Mitsubishi Montero front right fitments from 1994 through 2000, including 1994-1996 Montero front right, 1996-1997 Montero front right from 11/96, and 1998-2000 Montero front right. The axle uses a flange-style inboard design and a conventional outboard joint, with a neoprene boot to help protect the assembly from road debris and moisture. This part cross-references MB620252 for the same application.
Common Replacement Reasons
- Clicking or popping during turns from a worn CV joint
- Vibration from a damaged or unbalanced axle assembly
- Torn boot or grease loss at the axle shaft
- Front right driveline noise on Mitsubishi Montero models
- Axle wear after high mileage or off-road use
Installation Notes
Verify front right fitment by year and build date before installation, especially for 1996-1997 Montero models with the 11/96 cutoff. Confirm spline count, flange connection style, and overall length match the original axle before assembly. The axle nut is not included, and ABS tone ring is not included.
Quality Assurance
TrakMotive manufactures this CV axle shaft as a new replacement part and states ISO 9001:1007 and TS 16949:2009 certification for its company quality systems. MI-8149 also carries a limited lifetime warranty.
| Year | Make | Model | Submodel | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2000 | Mitsubishi | Montero | Base | — | — | — | Front Right | CV Axle Shaft |
| 1999 | Mitsubishi | Montero | Base | — | — | — | Front Right | CV Axle Shaft |
| 1998 | Mitsubishi | Montero | Base | — | — | — | Front Right | CV Axle Shaft |
| 1997 | Mitsubishi | Montero | — | — | — | — | Front Right | From 11/96; CV Axle Shaft |
| 1996 | Mitsubishi | Montero | — | — | 3.5L | V6 | Front Right | To 11/96; CV Axle Shaft |
| 1996 | Mitsubishi | Montero | — | Automatic | 3.0L | V6 | Front Right | From 11/96; CV Axle Shaft |
| 1995 | Mitsubishi | Montero | — | — | 3.5L | V6 | Front Right | To 11/96; CV Axle Shaft |
| 1994 | Mitsubishi | Montero | — | — | 3.5L | V6 | Front Right | To 11/96; CV Axle Shaft |
