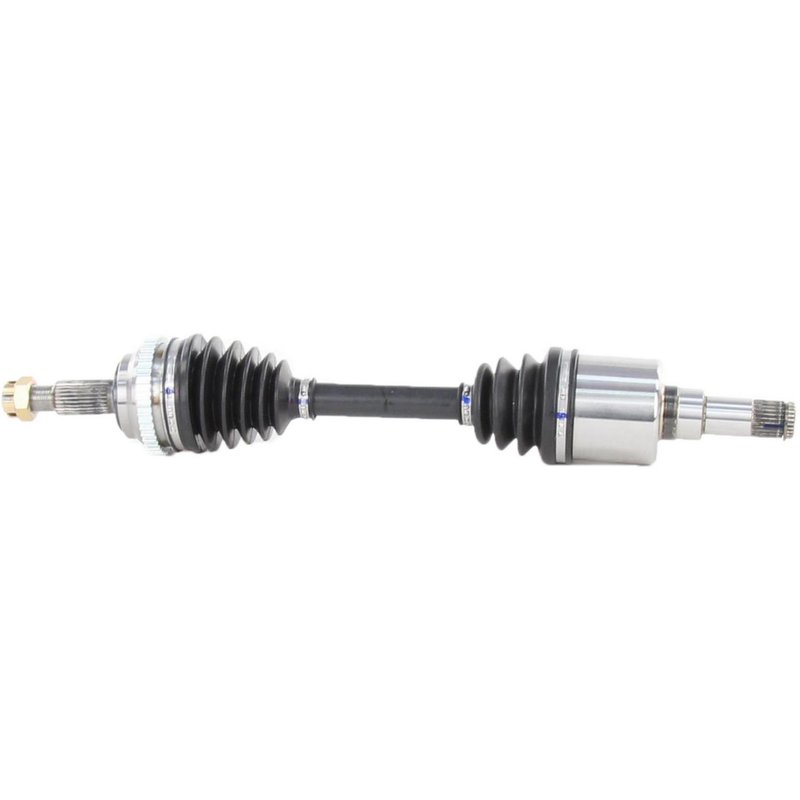

TrakMotive MI-8155 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft MI-8155 for Dodge Neon

The TrakMotive CV Axle Shaft MI-8155 is designed specifically for Dodge Neon models, providing reliable driveline performance. This new CV axle shaft features a robust construction with precise specifications to ensure compatibility and durability.

• Compatible with Dodge Neon vehicles
• Includes ABS tone ring with 46 toothed abs ring teeth
• Neoprene boot material for enhanced durability
• Hex head axle nut with cotter pin locking mechanism included
• Overall compressed length of 23.31 inches (592 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering quality CV components engineered for direct fit and reliable operation. This line emphasizes precise fitment and includes essential hardware such as axle nuts and ABS tone rings to meet OEM specifications. The MI-8155 model exemplifies this approach with its detailed design features tailored for Dodge Neon applications.

Technical Specifications and Features

The MI-8155 CV axle shaft includes a 46-tooth ABS ring with a toothed design, ensuring accurate wheel speed sensor readings. The neoprene boot material offers resistance to wear and environmental factors, protecting the joint from contaminants. The axle nut is a hex type with a 1 1/4 inch (32 mm) hex size, 6/7 inch (22 mm) height, and 1 1/2 inch (37 mm) length, secured by a cotter pin locking system for added safety. The inboard joint is male type with 27 splines, while the outboard joint is conventional with 26 splines, providing a secure connection to the drivetrain. The overall compressed length measures 23.31 inches (592 mm), matching OEM dimensions for proper fitment.

Common Applications and Problem Resolution

• Replacement of worn or damaged CV axle shafts on Dodge Neon vehicles
• Restoring proper ABS sensor function with included ABS tone ring
• Eliminating axle vibration or clicking noises during turns
• Addressing boot damage or grease leakage to prevent joint failure
• Ensuring secure axle nut fastening with included hardware

Installation Notes and Tips

When installing the TrakMotive MI-8155 CV axle shaft, verify compatibility with your Dodge Neon model year and drivetrain configuration. Use the included hex axle nut and cotter pin locking mechanism to secure the axle properly. Inspect the neoprene boot for any damage during installation and ensure the ABS tone ring is correctly positioned for sensor alignment. Proper torque specifications should be followed to maintain safety and performance.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component built to meet or exceed OEM standards. TrakMotive ensures quality through precise manufacturing and material selection. While specific warranty details are not provided here, TrakMotive products typically come with manufacturer-backed warranties to protect against defects in materials and workmanship.
