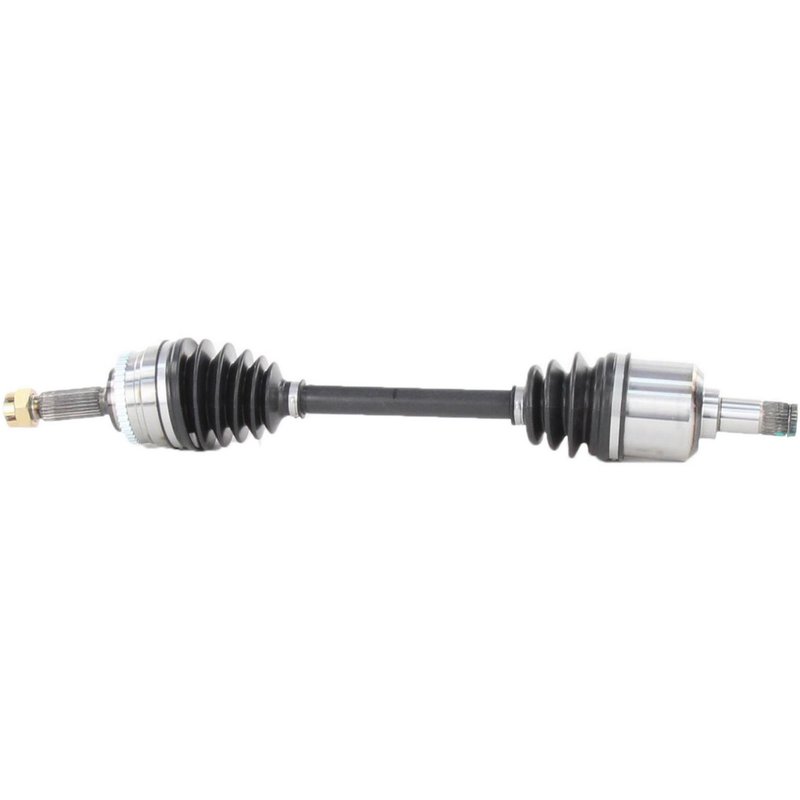

TrakMotive MI-8162 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft MI-8162 for Mitsubishi Eclipse

The TrakMotive CV Axle Shaft MI-8162 is engineered specifically for Mitsubishi Eclipse models, providing reliable driveline performance. Designed as a new replacement part, this CV axle shaft ensures precise fitment and durability for your vehicle's front-wheel or all-wheel drive system.

• Compatible with Mitsubishi Eclipse vehicles
• Includes a neoprene boot for enhanced durability
• Equipped with a 43-tooth ABS ring and included tone ring
• Features a hex head axle nut with cotter pin locking
• Overall compressed length of 24.92 inches (633 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering high-quality constant velocity components designed to meet or exceed OEM specifications. This line emphasizes precise engineering, including correct spline counts and joint types, to ensure smooth power transfer and long service life. The MI-8162 model exemplifies these standards with its male inboard joint and conventional outboard joint, tailored for the Mitsubishi Eclipse.

Technical Specifications and Features

The MI-8162 CV axle shaft features a neoprene boot material that offers resistance to wear and environmental factors. It includes a 43-tooth ABS ring with a toothed design and an ABS tone ring for accurate wheel speed sensor readings. The axle nut is a hex type measuring 1 1/4 inches (32 mm) across flats, with a height of 22 mm (6/7 inches) and a length of 37 mm (1 1/2 inches). The nut uses an M22x1.5 thread size and secures with a cotter pin locking mechanism to prevent loosening during operation. The inboard joint is male type with 27 splines, while the outboard joint is conventional with 25 splines, ensuring compatibility with the Mitsubishi Eclipse driveline system.

Common Applications and Problem Resolution

• Replacement of worn or damaged CV axle shafts on Mitsubishi Eclipse
• Restoring proper ABS sensor function with included tone ring
• Eliminating axle vibration or clicking noises during turns
• Addressing boot tears or leaks to prevent grease loss
• Securing axle nut with cotter pin to maintain safe driveline operation

Installation Notes and Tips

When installing the TrakMotive MI-8162 CV axle shaft, ensure the axle nut is torqued to manufacturer specifications and secured with the included cotter pin. Verify the ABS tone ring is properly aligned with the sensor to maintain accurate wheel speed readings. Inspect the neoprene boot for any damage during installation to prevent premature failure. This part is designed for direct replacement on Mitsubishi Eclipse models, but always confirm fitment with your vehicle's year and trim.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft MI-8162 is a new, OEM-quality replacement part manufactured to meet strict industry standards. It includes all necessary components such as the axle nut and ABS tone ring for a complete installation. While specific warranty details are not provided, TrakMotive products typically adhere to quality control processes to ensure reliability and performance in automotive driveline applications.
