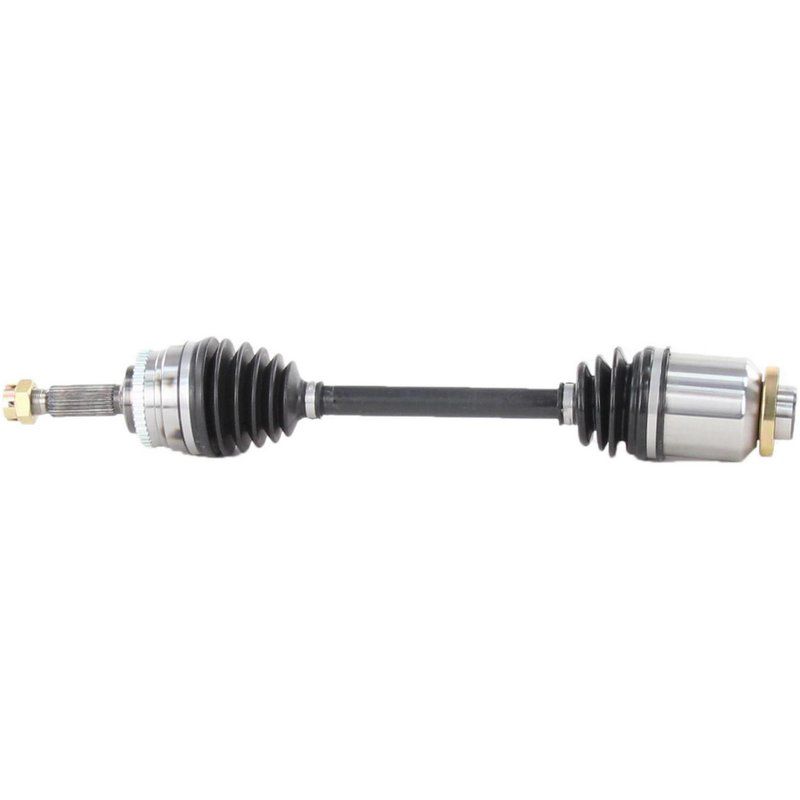

TrakMotive MI-8163 CV Axle Shaft - Front Right
| Brand | TrakMotive MI-8163 |
|---|---|
| Position | Front Right |
| Abs Ring Tooth Count | 43 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 6/7 |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Cotter Pin |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Female |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 26-2T |
| Number Of Outboard Splines | 25 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 23.5 |
| Overall Compressed Length (mm) | 597 |
| Product line | CV Axle Shaft |
| Fits | Mitsubishi · 3 vehicles |
New axle shaft. Built as a direct replacement for driveline and CV component applications.
Neoprene boot. Durable material helps protect the joint from wear and contamination.
ABS tone ring included. Toothed ring and axle nut are included for a complete install.
Cross-references Anchor 2640, Cardone Reman 60-3427 and Cardone Reman 60-3428 for the same application. See all 11.
CV Axle Shaft for Mitsubishi Eclipse
TrakMotive MI-8163 is a new CV axle shaft for the front right position on 2003-2005 Mitsubishi Eclipse models. It is built with a neoprene boot, a female inboard connection, and a conventional outboard joint for direct driveline service on the listed application.
Key Features
- Fits 2003-2005 Mitsubishi Eclipse, front right
- TrakMotive CV Axle Shaft, part number MI-8163
- New replacement axle shaft for driveline repair
- Neoprene boot material for joint protection
- Female inboard shaft connection style
- Conventional outboard shaft connection style
- Includes axle nut with M22 x 1.5 thread, 32 mm hex size, and cotter pin locking type
- ABS tone ring included with 43-tooth toothed ring
- Overall compressed length: 23.5 in. (597 mm)
Product Details
MI-8163 is a front right CV axle shaft engineered for the 2003, 2004, and 2005 Mitsubishi Eclipse. The axle uses a 26-2T inboard spline count and 25 outboard splines, along with a female inboard joint and conventional outboard joint configuration. The included ABS tone ring and 43-tooth toothed ring support vehicles that require ABS signal transfer at the axle assembly. TrakMotive identifies this part as a new unit, not remanufactured, and the axle nut is included for the specified application. This part cross-references Cardone Reman 60-3427 for the same application.
Common Repair Applications
- Front right axle noise or vibration during acceleration
- Clicking or popping from a worn CV joint
- Torn boot or grease loss at the axle assembly
- ABS warning concerns related to a damaged tone ring
- Driveline wear on a Mitsubishi Eclipse front axle
Installation Notes
Verify spline count, compressed length, and ABS ring requirements before installation. Confirm the front right position and axle nut specifications match the vehicle before assembly. Inspect related hub, seal, and suspension components during replacement to help prevent repeat driveline issues. Use proper torque procedures and follow the vehicle service manual for final installation.
Quality Assurance
TrakMotive states that this CV axle shaft is backed by a limited lifetime warranty. The brand also notes ISO 9001:1007 and TS 16949:2009 certification, supporting controlled manufacturing and quality management practices.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2005 | Mitsubishi | Eclipse | 3.0L | V6 | Front Right | CV Axle Shaft |
| 2004 | Mitsubishi | Eclipse | 3.0L | V6 | Front Right | CV Axle Shaft |
| 2003 | Mitsubishi | Eclipse | 3.0L | V6 | Front Right | CV Axle Shaft |
