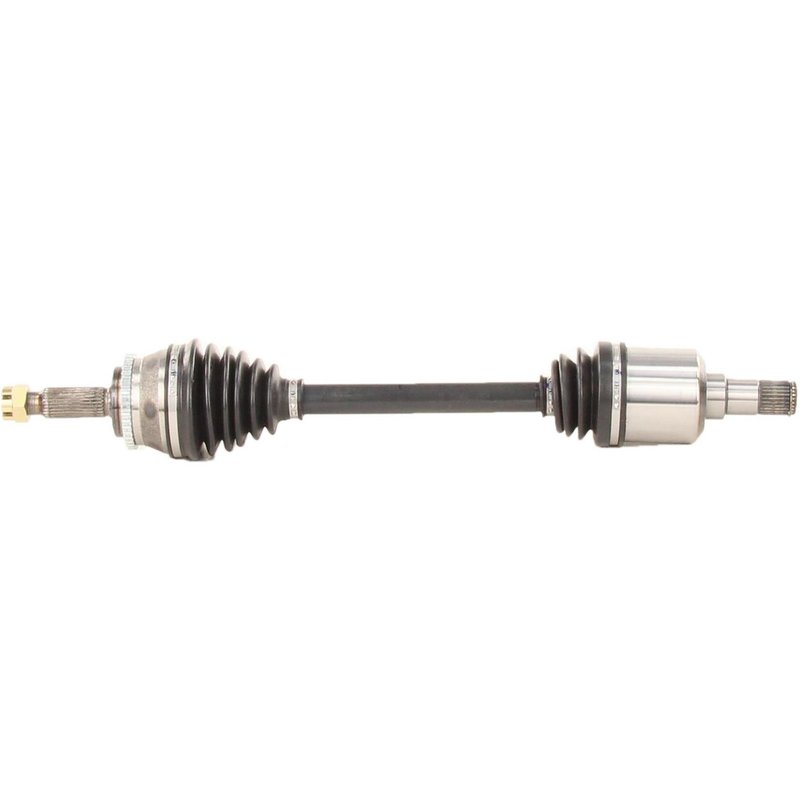

TrakMotive MI-8165 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft MI-8165 for Mitsubishi Endeavor

The TrakMotive CV Axle Shaft MI-8165 is engineered specifically for Mitsubishi Endeavor models, providing reliable driveline performance. This new CV axle shaft includes essential components designed to maintain proper vehicle function and safety.

• Compatible with Mitsubishi Endeavor vehicles
• Includes ABS tone ring with 43 toothed ring teeth
• Neoprene boot material for durability and protection
• Hex head axle nut with cotter pin locking mechanism included
• Overall compressed length of 26.61 inches (676 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering new, high-quality CV components designed to meet OEM specifications. This line emphasizes durability and precise fitment, ensuring that each CV axle shaft, including the MI-8165, integrates seamlessly with the vehicle’s driveline system. The inclusion of a toothed ABS ring and neoprene boots highlights the line’s attention to both performance and longevity.

Technical Specifications and Features

The MI-8165 CV axle shaft features a 43-tooth ABS ring with a toothed design, which is included to maintain accurate wheel speed sensor readings. The axle nut is a hex head type measuring 1 1/4 inches (32 mm) across the flats, with a height of 22 mm (6/7 inch) and a length of 37 mm (1 1/2 inch). It uses an M22 x 1.5 thread size and includes a cotter pin locking mechanism for secure installation. The neoprene boot material offers resistance to wear and environmental factors, protecting the inboard and outboard joints. The inboard joint is a male type with 28 splines, while the outboard joint is conventional with 27 splines. The overall compressed length of the axle shaft is 26.61 inches (676 mm), ensuring proper fitment within the driveline assembly.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Mitsubishi Endeavor
• Restores proper ABS sensor function with included toothed ABS ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage with durable neoprene boots
• Secures wheel hub connection with included cotter pin locking axle nut

Installation Notes and Tips

When installing the TrakMotive MI-8165 CV axle shaft, ensure the cotter pin locking axle nut is properly secured to prevent loosening during operation. Verify the ABS tone ring is correctly positioned to maintain accurate sensor readings. Use appropriate torque specifications for the M22 x 1.5 axle nut thread size. Inspect the neoprene boots for any damage during installation to maintain joint protection. This part is designed for direct replacement on Mitsubishi Endeavor models, simplifying the installation process.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft MI-8165 is a new, not remanufactured, component built to meet or exceed OEM standards. It includes all necessary hardware such as the axle nut and ABS tone ring to ensure complete assembly. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliability and performance in driveline applications.
