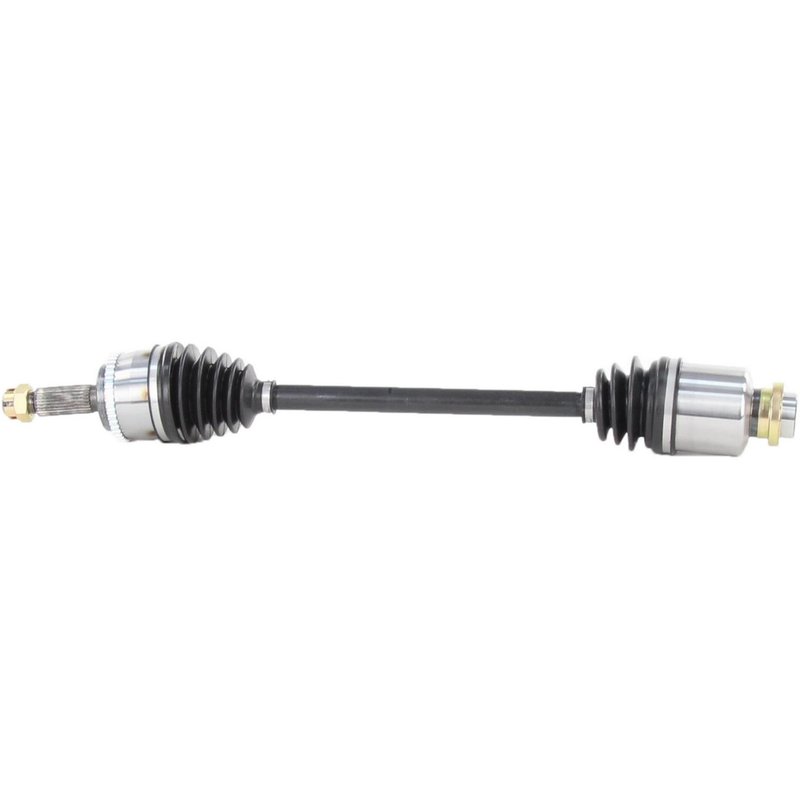

TrakMotive MI-8166 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft MI-8166 for Mitsubishi Endeavor

The TrakMotive CV Axle Shaft MI-8166 is engineered specifically for Mitsubishi Endeavor models, providing reliable driveline performance. This new CV axle shaft is designed to meet OEM specifications, ensuring proper fit and function for your vehicle.

• Compatible with Mitsubishi Endeavor
• Includes ABS tone ring with 43 toothed ring teeth
• Neoprene boot material for durability and protection
• Hex head axle nut with cotter pin locking mechanism included
• Overall compressed length of 27.76 inches (705 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering quality CV components designed to restore driveline integrity. This line features new CV axle shafts built with durable materials and precise specifications, including ABS tone rings and secure axle nut assemblies. The MI-8166 model exemplifies this line by combining a neoprene boot, conventional outboard joint, and female inboard joint connection for a reliable replacement part.

Technical Specifications and Features

The MI-8166 CV axle shaft includes a 43-tooth ABS ring with a toothed design, which is essential for accurate wheel speed sensor readings. The neoprene boot material offers resistance to wear and environmental factors, extending the life of the joint. The axle nut is a hex head type measuring 1 1/4 inches (32 mm) across flats, with a length of 1 1/2 inches (37 mm) and a height of 6/7 inches (22 mm). It features a cotter pin locking type and thread size M22*1.5, ensuring secure installation and retention. The inboard joint is female type with 26-2t splines, while the outboard joint is conventional with 27 splines, matching the factory specifications for Mitsubishi Endeavor vehicles.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Mitsubishi Endeavor
• Restores proper ABS sensor function with included ABS tone ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage with durable neoprene boot
• Secures wheel hub connection with included axle nut and cotter pin

Installation Notes and Tips

When installing the MI-8166 CV axle shaft, ensure the axle nut is torqued to manufacturer specifications and secured with the cotter pin to prevent loosening. Verify the ABS tone ring is properly aligned with the wheel speed sensor for accurate readings. Inspect the neoprene boot for any damage during installation to maintain joint protection. This part is designed for direct replacement on Mitsubishi Endeavor models, so no modifications should be necessary.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft MI-8166 is a new, remanufactured-free component built to meet or exceed OEM standards. It includes the axle nut and ABS tone ring to ensure complete assembly compatibility. While specific warranty details are not provided, TrakMotive products typically undergo rigorous quality control to ensure durability and performance in driveline applications.
