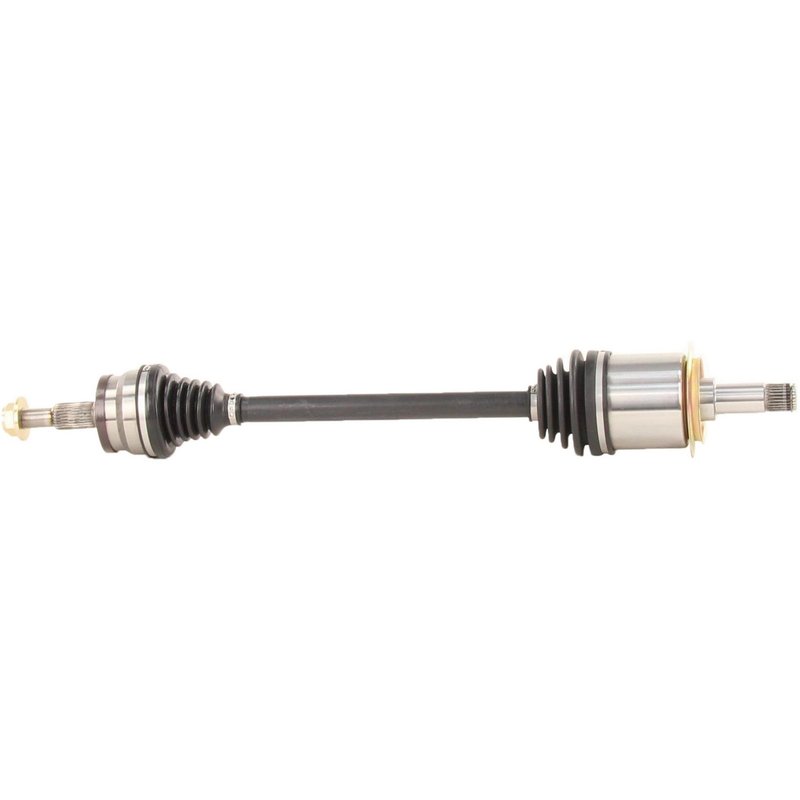

TrakMotive MI-8174 CV Axle Shaft - Rear Right

Overview of TrakMotive CV Axle Shaft MI-8174

The TrakMotive CV Axle Shaft MI-8174 is engineered for Chrysler and Dodge vehicles, including the 300, Charger, and Magnum models. Designed to deliver reliable driveline performance, this new CV axle shaft features a magnetic ABS tone ring and a durable neoprene boot for long-lasting operation.

• Compatible with Chrysler 300, Dodge Charger, and Dodge Magnum
• Magnetic ABS ring with 48 teeth for accurate wheel speed sensing
• Includes ABS tone ring for seamless integration with vehicle systems
• Neoprene boot material for enhanced durability and protection
• Self-locking hex axle nut (M22*1.5 thread size) included for secure installation
• Overall compressed length of 31.97 inches (812 mm)
• Male inboard joint and conventional outboard joint types
• 27 splines on both inboard and outboard shafts for precise fitment

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering dependable CV components designed to meet OEM specifications. This line emphasizes quality materials and precise engineering, ensuring compatibility and performance for driveline and axle repairs. The MI-8174 model exemplifies this approach with its integrated ABS tone ring and robust construction tailored for select Chrysler and Dodge vehicles.

Technical Description and Features

The MI-8174 CV axle shaft is a new, direct replacement part featuring a magnetic ABS ring with 48 teeth, which enhances wheel speed signal accuracy for ABS systems. The neoprene boot material provides resistance against environmental factors such as dirt, moisture, and temperature variations, extending the life of the joint. The axle nut included is a self-locking hex type with a 1 1/4 inch (31.8 mm) hex size and a thread size of M22*1.5, ensuring a secure fit. Both the inboard and outboard shafts have 27 splines, with the inboard joint designed as male and the outboard joint as conventional, matching factory specifications. The overall compressed length of 31.97 inches (812 mm) fits the specified vehicle models precisely.

Common Applications and Problem Resolution

• Replacement of worn or damaged CV axle shafts on Chrysler 300, Dodge Charger, and Magnum
• Restoring proper ABS sensor function with included magnetic ABS tone ring
• Eliminating axle vibration or clicking noises during turns
• Addressing torn or leaking CV boots to prevent joint contamination
• Securing axle connection with self-locking axle nut to prevent loosening

Installation Notes and Tips

When installing the MI-8174 CV axle shaft, ensure the vehicle is properly supported and the wheel hub is accessible. Verify that the ABS tone ring aligns correctly with the sensor to maintain ABS functionality. Use the included self-locking hex axle nut and torque it to manufacturer specifications to avoid loosening. Inspect the neoprene boot for any damage during installation and confirm that the splines engage fully on both inboard and outboard connections. Proper installation will help maintain driveline integrity and vehicle safety.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft MI-8174 is manufactured to meet or exceed OEM standards for fit, form, and function. This new axle shaft undergoes rigorous quality control to ensure durability and performance. While specific warranty details are not provided here, TrakMotive products typically come with a limited warranty against defects in materials and workmanship. Consult product documentation or the manufacturer for exact warranty terms.
