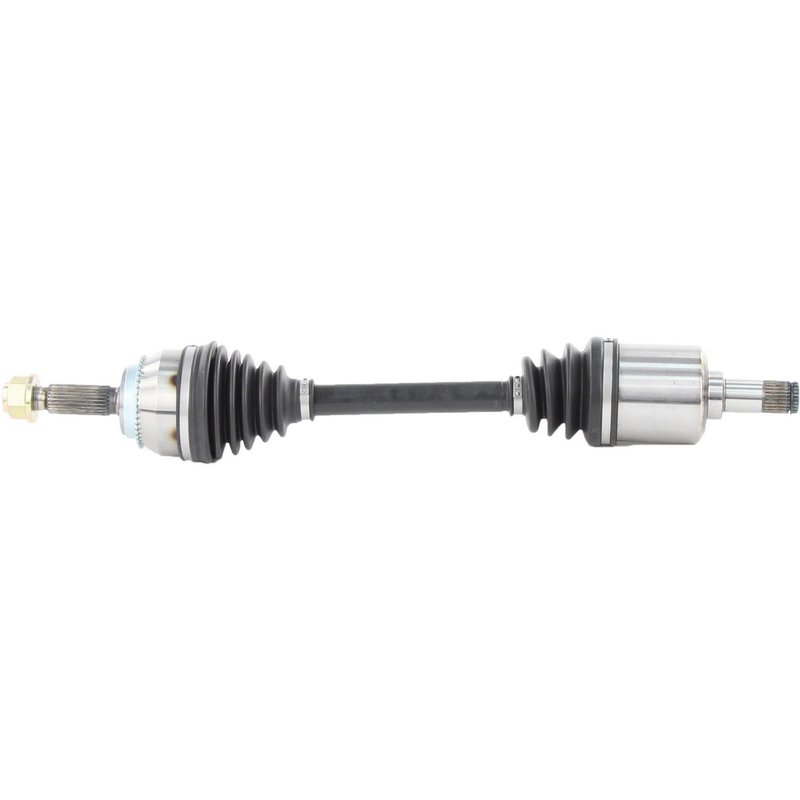

TrakMotive MI-8177 CV Axle Shaft - Front Left
| Brand | TrakMotive MI-8177 |
|---|---|
| Position | Front Left |
| Abs Ring Tooth Count | 43 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 26 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.4 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 3/7 |
| Axle Nut Length (mm) | 36.2 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Splines | 25 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 24.88 |
| Overall Compressed Length (mm) | 632 |
| Product line | CV Axle Shaft |
| Fits | Mitsubishi · 4 vehicles |
New replacement shaft. Built as a new CV axle shaft for straightforward service replacement.
Neoprene boot. Durable boot material helps protect the joint from road debris and moisture.
ABS tone ring included. Toothed ring is included for applications that use ABS sensing.
Cross-references TrakMotive MI-8177, 80-4218 and 89127 for the same application. See all 16.
CV Axle Shaft for Mitsubishi Outlander
TrakMotive MI-8177 is a new CV axle shaft for the front left position on 2003-2006 Mitsubishi Outlander models. It is built for direct driveline replacement on the Mitsubishi Outlander and includes the axle nut and ABS tone ring details needed for the listed application.
Key Features
- Fits 2003-2006 Mitsubishi Outlander, front left
- New CV axle shaft for driveline and axle service
- Overall compressed length: 24.88 in. (632 mm)
- Inboard joint type: male; outboard joint type: conventional
- 27 inboard splines and 25 outboard splines
- ABS tone ring included with 43-tooth toothed ring
- Neoprene boot material
- Axle nut included: M22 x 1.5, self-locking, hex head
Product Details
TrakMotive MI-8177 is a CV axle shaft for the front left side of the 2003-2006 Mitsubishi Outlander. The shaft measures 24.88 inches compressed and uses a male inboard connection with a conventional outboard joint. It also includes a toothed ABS ring with 43 teeth, making it a direct replacement choice for the specified Outlander application. This part cross-references Mitsubishi OE numbers such as MR580851 and MR580853 for the same application.
Common Repair Symptoms
- Clicking or popping during turns from a worn CV joint
- Vibration under acceleration from a damaged axle shaft
- Torn boot or grease loss at the CV joint
- ABS warning concerns related to a damaged tone ring area
- Excessive driveline play or noise from axle wear
Installation Notes
Verify spline count, compressed length, and axle nut thread size before installation. Confirm the front left position and ABS configuration on the vehicle before ordering. Inspect the hub, seals, and mating components during replacement to help ensure proper fit and operation on the Mitsubishi Outlander.
Quality Assurance
TrakMotive manufactures this CV axle shaft as a new replacement part and identifies the line with ISO 9001:1007 and TS 16949:2009 certified company standards. MI-8177 is backed by a limited lifetime warranty.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2006 | Mitsubishi | Outlander | FWD | Front Left | CV Axle Shaft |
| 2005 | Mitsubishi | Outlander | FWD | Front Left | CV Axle Shaft |
| 2004 | Mitsubishi | Outlander | FWD | Front Left | CV Axle Shaft |
| 2003 | Mitsubishi | Outlander | FWD | Front Left | CV Axle Shaft |
