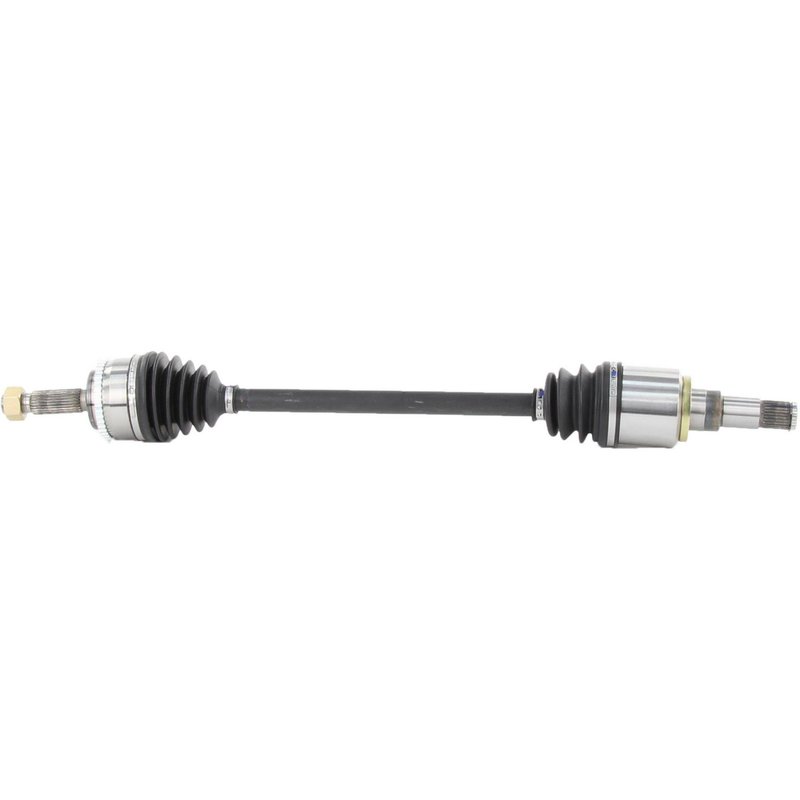

TrakMotive MI-8178 CV Axle Shaft - Rear Left
| Brand | TrakMotive MI-8178 |
|---|---|
| Position | Rear Left |
| Abs Ring Tooth Count | 43 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 5/7 |
| Axle Nut Height (mm) | 17.8 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.6 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 2 1/7 |
| Axle Nut Length (mm) | 54.7 |
| Axle Nut Locking Type | Cotter Pin |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 28 |
| Number Of Outboard Splines | 25 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 31.5 |
| Overall Compressed Length (mm) | 800 |
| Product line | CV Axle Shaft |
| Fits | Mitsubishi · 8 vehicles |
New axle shaft. Built with a neoprene boot for dependable CV joint protection.
ABS tone ring included. Toothed ring with 43 teeth for accurate wheel speed signal pickup.
Hardware included. Axle nut comes with a cotter-pin locking type for secure installation.
Cross-references Dayco 89715, TrakMotive MI-8178 and 239178 for the same application. See all 6.
Rear Left CV Axle Shaft for Mitsubishi Endeavor
TrakMotive MI-8178 is a new rear left CV axle shaft for 2004-2008 Mitsubishi Endeavor and 2009-2011 Mitsubishi Endeavor applications. Built as a direct driveline replacement, it includes the axle nut and ABS tone ring details needed for the listed fitment.
Key Features
- Fits 2004-2008 Mitsubishi Endeavor, rear left
- Fits 2009-2011 Mitsubishi Endeavor, rear left
- New CV axle shaft for driveline and axle service
- Overall compressed length: 31.5 in. (800 mm)
- Inboard joint type: male; outboard joint type: conventional
- 28 inboard splines and 25 outboard splines
- Neoprene boot material for axle boot construction
- ABS tone ring included; 43-tooth toothed ring
- Axle nut included: M22 x 1.5 thread, 31.6 mm hex size, cotter pin locking type
Detailed Description
TrakMotive MI-8178 is a CV axle shaft engineered for the rear left position on Mitsubishi Endeavor models from 2004 through 2011. This axle shaft is a new replacement part with a 31.5-inch compressed length, male inboard connection, conventional outboard connection, and a neoprene boot. The included ABS tone ring uses a toothed design with 43 teeth, and the axle nut is supplied with M22 x 1.5 threads and a cotter pin locking style. This part cross-references Dayco 89715 for the same application.
Common Repair Uses
- Replacing a worn or noisy rear left CV axle on a Mitsubishi Endeavor
- Restoring driveline operation after axle vibration or clicking during turns
- Addressing torn boot or grease loss at the axle assembly
- Replacing a damaged ABS tone ring or axle nut during axle service
- Servicing 2004-2011 Mitsubishi Endeavor rear axle driveline components
Installation Notes and Tips
Verify spline count, compressed length, and ABS ring configuration before installation. Confirm rear left placement and match the axle nut thread size and hex size to the vehicle’s hub hardware. Inspect related seals, bearings, and suspension components during replacement to help prevent repeat driveline noise or leakage.
Quality Assurance
TrakMotive identifies this CV axle shaft as a new part and notes ISO 9001:1007 and TS 16949:2009 certification. The MI-8178 also carries a limited lifetime warranty.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2011 | Mitsubishi | Endeavor | AWD | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2010 | Mitsubishi | Endeavor | AWD | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2009 | Mitsubishi | Endeavor | — | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2008 | Mitsubishi | Endeavor | AWD | Rear Left | CV Axle Shaft |
| 2007 | Mitsubishi | Endeavor | AWD | Rear Left | CV Axle Shaft |
| 2006 | Mitsubishi | Endeavor | AWD | Rear Left | CV Axle Shaft |
| 2005 | Mitsubishi | Endeavor | AWD | Rear Left | CV Axle Shaft |
| 2004 | Mitsubishi | Endeavor | AWD | Rear Left | CV Axle Shaft |
