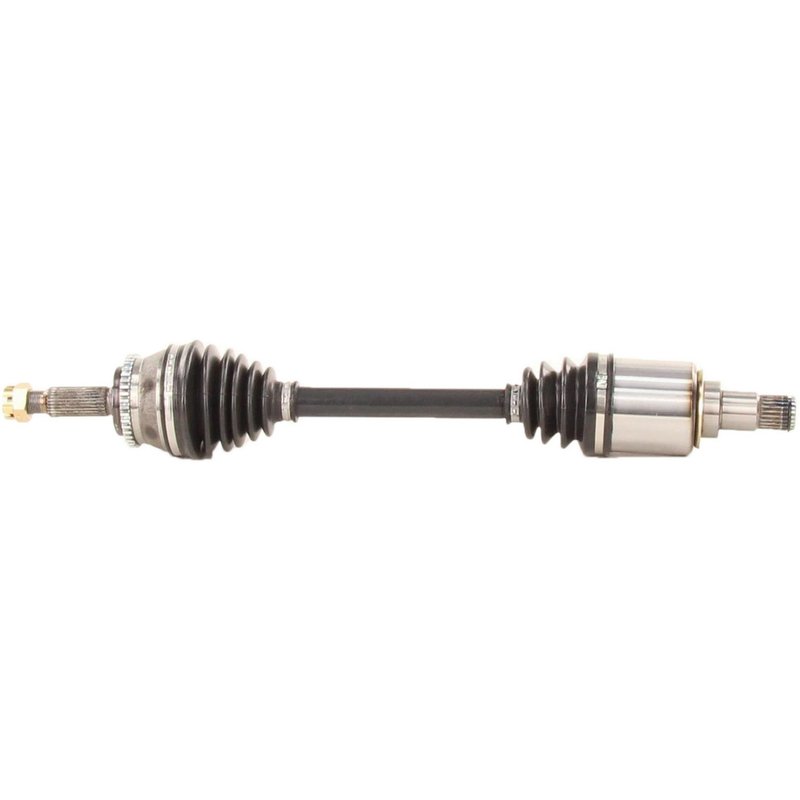

TrakMotive MI-8185 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft MI-8185 for Mitsubishi Eclipse

The TrakMotive CV Axle Shaft MI-8185 is engineered specifically for Mitsubishi Eclipse models, providing reliable driveline performance. This new CV axle shaft is designed to meet OEM specifications, ensuring proper fit and function for your vehicle.

• Compatible with Mitsubishi Eclipse vehicles
• Includes ABS tone ring with 43 toothed ring teeth
• Neoprene boot material for enhanced durability
• Hex head axle nut with cotter pin locking mechanism included
• Overall compressed length of 25.79 inches (655 mm)
• Inboard joint type: Male with 24 splines
• Outboard joint type: Conventional with 27 splines

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering quality CV components designed to restore driveline integrity. This line emphasizes precise fitment and durability, featuring components such as ABS tone rings and neoprene boots to protect against wear and environmental damage. The MI-8185 model exemplifies these qualities with its robust construction and inclusion of necessary hardware like the axle nut and cotter pin locking system.

Technical Specifications and Features

The MI-8185 CV axle shaft includes a toothed ABS ring with 43 teeth, which is essential for accurate wheel speed sensor readings. The neoprene boot material offers resistance to cracking and deterioration, extending the life of the joint. The axle nut features a hex head measuring 1 1/4 inches (32 mm) across flats, with a height of 22 mm (6/7 inch) and a length of 37 mm (1 1/2 inch). It uses an M22 x 1.5 thread size and secures with a cotter pin locking type to prevent loosening during operation. The inboard joint is male type with 24 splines, while the outboard joint is conventional with 27 splines, ensuring compatibility with the Mitsubishi Eclipse driveline system. The overall compressed length of 25.79 inches (655 mm) matches OEM dimensions for proper installation.

Common Applications and Problem Solving

• Replacement of worn or damaged CV axle shafts on Mitsubishi Eclipse
• Restoring ABS sensor functionality with included toothed ABS tone ring
• Eliminating axle vibration or clicking noises during turns
• Addressing torn or leaking CV boots to prevent joint contamination
• Ensuring secure axle nut fastening with included cotter pin locking system

Installation Notes and Tips

When installing the TrakMotive MI-8185 CV axle shaft, verify compatibility with your specific Mitsubishi Eclipse model year. Use proper torque specifications for the axle nut and ensure the cotter pin is correctly installed to secure the nut. Inspect the CV boots for any damage during installation and confirm the ABS tone ring is properly aligned with the wheel speed sensor. Lubricate splines as recommended to facilitate smooth assembly and prevent premature wear.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component designed to meet or exceed OEM standards. TrakMotive products undergo quality control inspections to ensure durability and fitment accuracy. While specific warranty details are not provided, the new condition and OEM-level specifications support reliable performance for Mitsubishi Eclipse driveline repairs.
