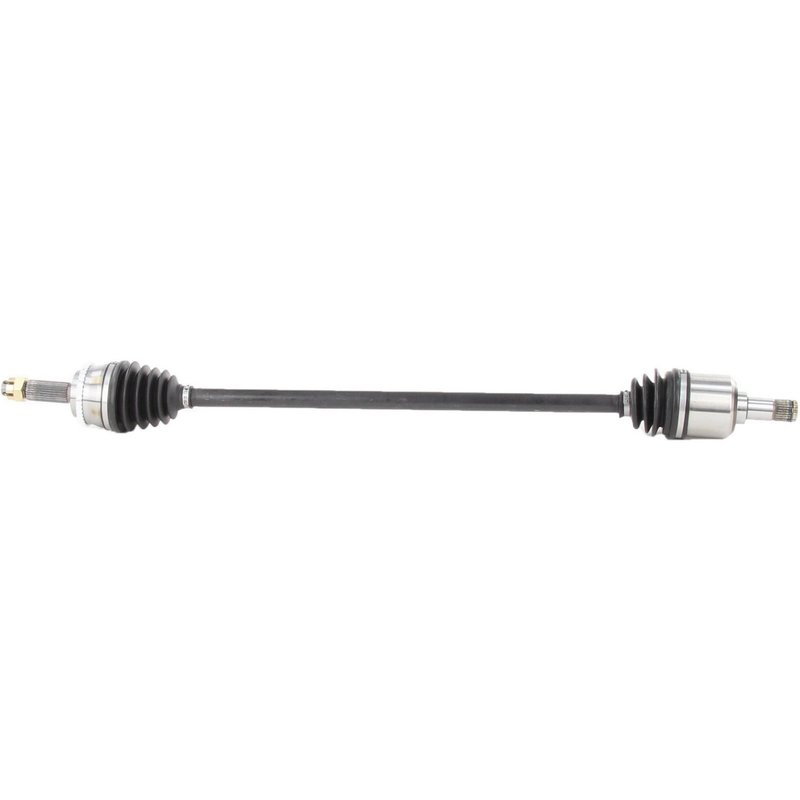

TrakMotive MI-8186 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft MI-8186

The TrakMotive CV Axle Shaft MI-8186 is engineered for reliable driveline performance in Mitsubishi Eclipse and Galant models. Designed as a new replacement part, it ensures precise fitment and durability for your vehicle's front-wheel or all-wheel drive system.

• Compatible with Mitsubishi Eclipse and Galant
• Includes a toothed ABS tone ring with 43 teeth
• Neoprene boot material for enhanced joint protection
• Hex head axle nut with cotter pin locking mechanism included
• Overall compressed length of 39.02 inches (991 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering quality CV components designed to meet or exceed OEM specifications. This line emphasizes durability and precise engineering, featuring components such as ABS tone rings and neoprene boots to maintain optimal driveline function. The MI-8186 model is part of this line, offering a complete axle shaft assembly with included hardware for straightforward installation.

Technical Specifications and Features

This CV axle shaft features a male inboard joint type with 27 splines on both the inboard and outboard ends, ensuring secure shaft connections. The outboard joint uses a conventional style, compatible with the specified Mitsubishi models. The included ABS tone ring is toothed with 43 teeth, aiding in accurate wheel speed sensor readings. The axle nut is a hex type, measuring 1 1/4 inches (32 mm) across flats, 6/7 inches (22 mm) in height, and 1 1/2 inches (37 mm) in length, with an M22x1.5 thread size and a cotter pin locking mechanism for secure fastening. The neoprene boot material provides resistance to wear and environmental factors, protecting the CV joints from contaminants.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Mitsubishi Eclipse and Galant
• Restores proper ABS sensor function with included toothed ABS tone ring
• Eliminates axle vibration or clicking noises caused by joint wear
• Addresses grease leakage from torn or degraded CV boots
• Ensures secure wheel attachment with included axle nut and cotter pin

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft MI-8186, verify compatibility with your specific Mitsubishi Eclipse or Galant model year. Use the included axle nut and cotter pin to secure the shaft properly, ensuring the hex nut is torqued to manufacturer specifications. Inspect the neoprene boot for any damage during installation and confirm the ABS tone ring is correctly positioned for sensor alignment. Proper lubrication of the CV joints before assembly is recommended to extend service life.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft MI-8186 is a new, remanufactured-free component designed to meet OEM standards for fit and function. It includes all necessary hardware for installation, such as the axle nut and cotter pin. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliability and performance in Mitsubishi Eclipse and Galant vehicles.
