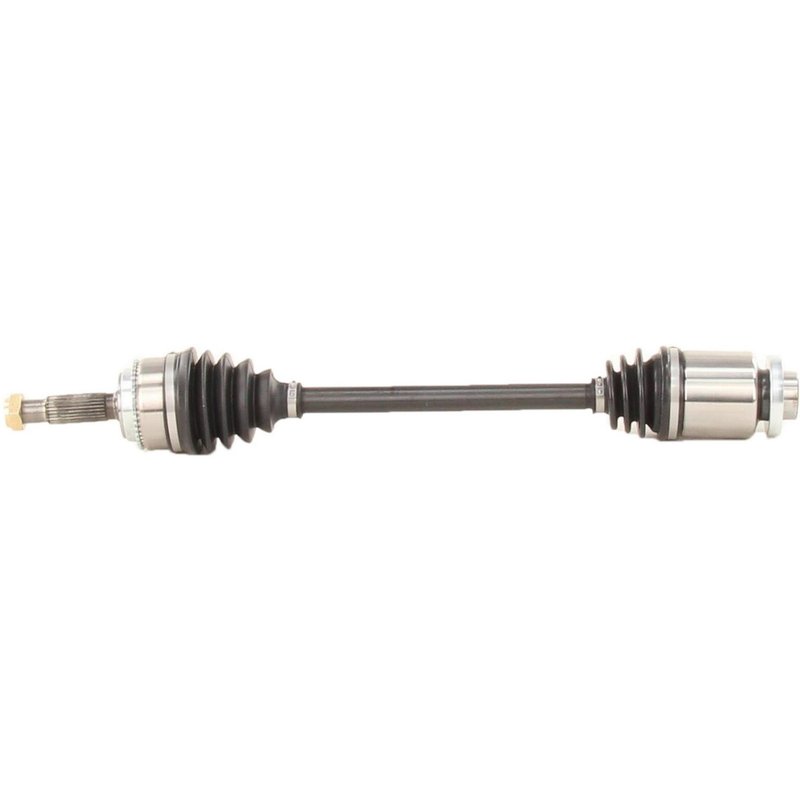

TrakMotive MI-8192 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft MI-8192 for Mitsubishi Lancer

The TrakMotive CV Axle Shaft MI-8192 is engineered specifically for Mitsubishi Lancer models, providing reliable driveline performance. This new CV axle shaft is designed to maintain proper wheel alignment and smooth power transfer from the transmission to the wheels.

• Compatible with Mitsubishi Lancer vehicles
• Includes a self-locking hex axle nut (M22*1.5 thread size)
• Neoprene boot material for enhanced durability
• 43-tooth ABS ring with included tone ring for accurate wheel speed sensing
• Overall compressed length of 25.98 inches (660 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise fit and reliable driveline components for various vehicle applications. The MI-8192 model features a conventional outboard joint and a female inboard joint connection style, ensuring compatibility with the Mitsubishi Lancer’s driveline system. This product line emphasizes quality materials such as neoprene boots and includes necessary hardware like the self-locking axle nut for secure installation.

Technical Specifications and Features

The MI-8192 CV axle shaft includes a 43-tooth ABS ring with a toothed design and an ABS tone ring, which is essential for accurate anti-lock braking system operation. The axle nut is a hex head type measuring 1 1/4 inches (32 mm) across flats, with a height of 15 mm (3/5 inch) and a length of 37 mm (1 1/2 inch). The nut features a self-locking mechanism to prevent loosening during operation. The inboard joint is female with 28-2t splines, while the outboard joint is conventional with 25 splines, providing a secure and precise fit. The neoprene boot material offers resistance to wear and environmental factors, extending the service life of the axle shaft.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Mitsubishi Lancer
• Resolves issues related to clicking or popping noises during turns
• Addresses vibration or shuddering caused by axle shaft wear
• Restores proper ABS sensor function with included tone ring
• Prevents grease leakage with durable neoprene boot

Installation Notes and Tips

When installing the TrakMotive MI-8192 CV axle shaft, ensure the axle nut is torqued to manufacturer specifications to maintain the self-locking feature. Verify the correct alignment of the inboard and outboard splines for a secure fit. Inspect the neoprene boot for any damage during installation to prevent premature failure. It is recommended to replace the axle nut included with the shaft to ensure proper locking and safety.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component designed to meet OEM standards for fit and function. The inclusion of a self-locking axle nut and durable neoprene boot reflects the product’s focus on reliability. Warranty details should be confirmed with the distributor or manufacturer, as coverage may vary.
