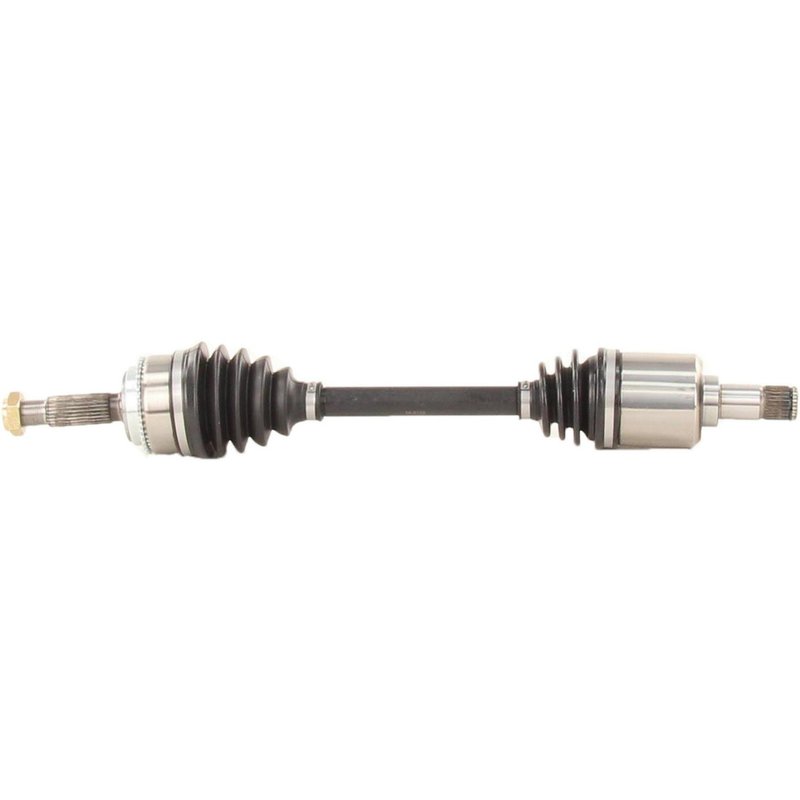

TrakMotive MI-8193 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft MI-8193 for Mitsubishi Lancer

The TrakMotive CV Axle Shaft MI-8193 is engineered specifically for Mitsubishi Lancer models, providing reliable driveline performance. This new CV axle shaft is designed to meet OEM specifications, ensuring proper fit and function for your vehicle.

• Compatible with Mitsubishi Lancer
• Includes self-locking hex axle nut (M22*1.5 thread size)
• Neoprene boot material for enhanced durability
• 43-tooth ABS ring with toothed tone ring included
• Overall compressed length of 24.29 inches (617 mm)
• Inboard joint type: Male with 27 splines
• Outboard joint type: Conventional with 25 splines

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components that maintain vehicle stability and smooth power transfer. This CV axle shaft model MI-8193 is part of that line, featuring a robust neoprene boot and a self-locking hex axle nut to ensure secure installation and long-lasting performance in Mitsubishi Lancer vehicles.

Technical Specifications and Features

This CV axle shaft includes a 43-tooth ABS ring with a toothed tone ring, which is essential for accurate wheel speed sensor readings and ABS functionality. The axle nut is a 1 1/4 inch (32 mm) hex head, 1 1/2 inch (37 mm) in length, and 3/5 inch (15 mm) in height, designed with a self-locking mechanism to prevent loosening during operation. The neoprene boot material offers resistance to wear and environmental factors, protecting the joint from contaminants. The inboard joint uses a male connection style with 27 splines, while the outboard joint is conventional with 25 splines, ensuring compatibility with the Mitsubishi Lancer's driveline system. The overall compressed length of 24.29 inches (617 mm) matches OEM dimensions for proper fitment.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Mitsubishi Lancer
• Restores proper ABS sensor function with included toothed ABS ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage and contamination with durable neoprene boot
• Secures wheel hub connection with self-locking axle nut

Installation Notes and Tips

Ensure the vehicle is safely lifted and supported before removing the old CV axle shaft. Verify the spline counts and joint types match the replacement part MI-8193. Use the included self-locking hex axle nut (M22*1.5 thread) and torque to manufacturer specifications. Inspect the neoprene boot for proper seating to prevent premature wear. Confirm ABS tone ring alignment for accurate sensor readings after installation.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft MI-8193 is a new, not remanufactured, component built to meet or exceed OEM standards. It includes a self-locking axle nut and a neoprene boot designed for durability. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliable performance in Mitsubishi Lancer vehicles.
