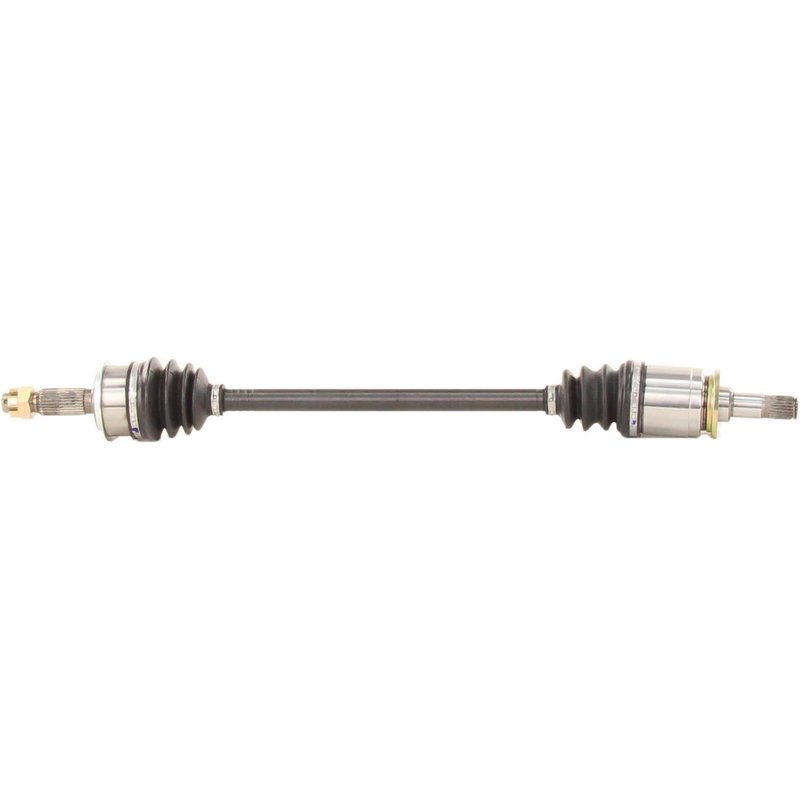

TrakMotive MI-8207 CV Axle Shaft - Rear Left

Overview of TrakMotive CV Axle Shaft MI-8207

The TrakMotive CV Axle Shaft MI-8207 is designed specifically for Mitsubishi Outlander models, providing reliable driveline performance. This new CV axle shaft ensures proper power transfer from the transmission to the wheels, maintaining vehicle stability and handling.

• Compatible with Mitsubishi Outlander vehicles
• Includes axle nut with cotter pin locking type
• Neoprene boot material for durability and protection
• Hex head axle nut measuring 1 1/4 inch (32 mm)
• Overall compressed length of 29.65 inches (753 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering new, high-quality CV components engineered for precise fitment and durability. The MI-8207 model features a male inboard joint type with 23 splines and a conventional outboard joint with 27 splines, ensuring compatibility and smooth operation within the driveline system of the Mitsubishi Outlander.

Technical Specifications and Features

This CV axle shaft includes a neoprene boot designed to resist wear and environmental damage. The axle nut is included and features a hex head with a 1 1/4 inch (32 mm) size, 6/7 inch (22 mm) height, and 1 1/2 inch (37 mm) length. It uses a cotter pin locking mechanism for secure installation. The inboard shaft connection style is male, matching the 23 inboard splines, while the outboard connection is conventional with 27 splines. The overall compressed length of 29.65 inches (753 mm) ensures proper fitment within the driveline assembly.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Mitsubishi Outlander
• Eliminates clicking or popping noises during turns caused by joint wear
• Resolves vibration issues related to axle imbalance or joint failure
• Prevents grease leakage with durable neoprene boot
• Restores proper driveline function and vehicle handling

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft MI-8207, ensure the cotter pin locking axle nut is properly secured to prevent loosening. Verify the spline counts and connection styles match the vehicle’s specifications. Use appropriate torque settings for the hex head axle nut to maintain safety and performance. Inspect the neoprene boot for any damage during installation to ensure long-term protection.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft MI-8207 is a new, remanufactured-free component designed to meet OEM standards. It includes the axle nut and features durable materials such as neoprene for the boot. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliable performance on Mitsubishi Outlander vehicles.
