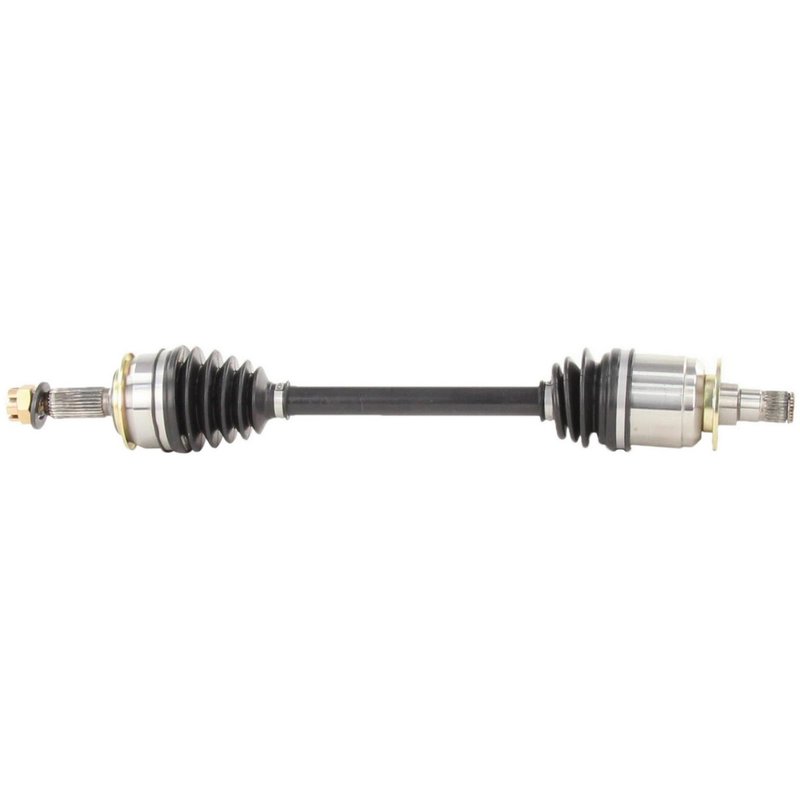

TrakMotive MI-8216 CV Axle Shaft - Rear Left
Overview of TrakMotive CV Axle Shaft MI-8216 for Mitsubishi Lancer
The TrakMotive CV Axle Shaft MI-8216 is designed specifically for Mitsubishi Lancer models, providing reliable driveline performance. This new CV axle shaft ensures proper fitment and durability for your vehicle's front-wheel-drive system.
- Compatible with Mitsubishi Lancer vehicles
- Includes axle nut with cotter pin locking type
- Neoprene boot material for enhanced joint protection
- Inboard and outboard spline connection styles
- Overall compressed length of 26.5 inches (673 mm)
TrakMotive CV Axle Shaft Product Line Details
The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components engineered for specific vehicle applications. The MI-8216 model features a male inboard joint with 27 splines and a conventional outboard joint also with 27 splines, ensuring compatibility and smooth power transfer. The included axle nut is a hex head type with a cotter pin locking mechanism, designed for secure installation and long-term reliability.
Technical Specifications and Features
This CV axle shaft is constructed with a neoprene boot to protect the joints from contaminants and wear. The axle nut measures 0.87 inches (22 mm) in height, with a 1.26-inch (32 mm) hex size, and a thread size of M22*1.5. The axle nut length is 1.45 inches (36.95 mm), providing a secure fit. Both the inboard and outboard shaft connections use spline styles with 27 splines each, ensuring proper engagement and torque transfer. The overall compressed length of 26.5 inches (673 mm) matches OEM specifications for a precise fit.
Common Applications and Problem Solving
- Replacement for worn or damaged CV axle shafts on Mitsubishi Lancer
- Resolves issues with axle vibration or clicking noises during turns
- Addresses grease leakage from torn or damaged CV boots
- Fixes axle shaft failure due to joint wear or corrosion
- Restores driveline stability and smooth power delivery
Installation Notes and Tips
When installing the TrakMotive MI-8216 CV Axle Shaft, ensure the cotter pin locking axle nut is properly secured to prevent loosening. Verify spline engagement on both inboard and outboard joints for correct fitment. Use appropriate torque specifications for the axle nut to maintain safety and performance. Inspect the neoprene boot for any damage during installation to maintain joint protection.
Quality Assurance and Warranty
The TrakMotive CV Axle Shaft MI-8216 is a new, not remanufactured, component designed to meet or exceed OEM standards. It undergoes quality control inspections to ensure durability and fitment accuracy. This part includes the axle nut and is backed by TrakMotive's commitment to reliable automotive components. Warranty details should be confirmed with the distributor or manufacturer.
| Brand | TrakMotive |
| Part Number | MI-8216 |
| Position | CV Axle Shaft, Rear Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.87 |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (in) | 1.26 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.45 |
| Axle Nut Length (mm) | 36.95 |
| Axle Nut Locking Type | Cotter Pin |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 26.5 |
| Overall Compressed Length (mm) | 673 |
This part fits 20 vehicles. Search below:
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 2015 | Mitsubishi | Lancer | Evolution MR | Rear Left | CV Axle Shaft |
| 2015 | Mitsubishi | Lancer | Evolution GSR | Rear Left | CV Axle Shaft |
| 2015 | Mitsubishi | Lancer | Evolution Final Edition | Rear Left | CV Axle Shaft |
| 2014 | Mitsubishi | Lancer | Evolution MR | Rear Left | CV Axle Shaft |
| 2014 | Mitsubishi | Lancer | Evolution GSR | Rear Left | CV Axle Shaft |
| 2013 | Mitsubishi | Lancer | Evolution MR | Rear Left | CV Axle Shaft |
| 2013 | Mitsubishi | Lancer | Evolution GSR | Rear Left | CV Axle Shaft |
| 2012 | Mitsubishi | Lancer | Evolution MR | Rear Left | CV Axle Shaft |
| 2012 | Mitsubishi | Lancer | Evolution GSR | Rear Left | CV Axle Shaft |
| 2011 | Mitsubishi | Lancer | Evolution MR | Rear Left | CV Axle Shaft |
| 2011 | Mitsubishi | Lancer | Evolution MR Touring | Rear Left | CV Axle Shaft |
| 2011 | Mitsubishi | Lancer | Evolution GSR | Rear Left | CV Axle Shaft |
| 2010 | Mitsubishi | Lancer | Evolution SE | Rear Left | CV Axle Shaft |
| 2010 | Mitsubishi | Lancer | Evolution MR | Rear Left | CV Axle Shaft |
| 2010 | Mitsubishi | Lancer | Evolution MR Touring | Rear Left | CV Axle Shaft |
| 2010 | Mitsubishi | Lancer | Evolution GSR | Rear Left | CV Axle Shaft |
| 2009 | Mitsubishi | Lancer | Evolution MR | Rear Left | CV Axle Shaft |
| 2009 | Mitsubishi | Lancer | Evolution GSR | Rear Left | CV Axle Shaft |
| 2008 | Mitsubishi | Lancer | Evolution MR | Rear Left | CV Axle Shaft |
| 2008 | Mitsubishi | Lancer | Evolution GSR | Rear Left | CV Axle Shaft |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
