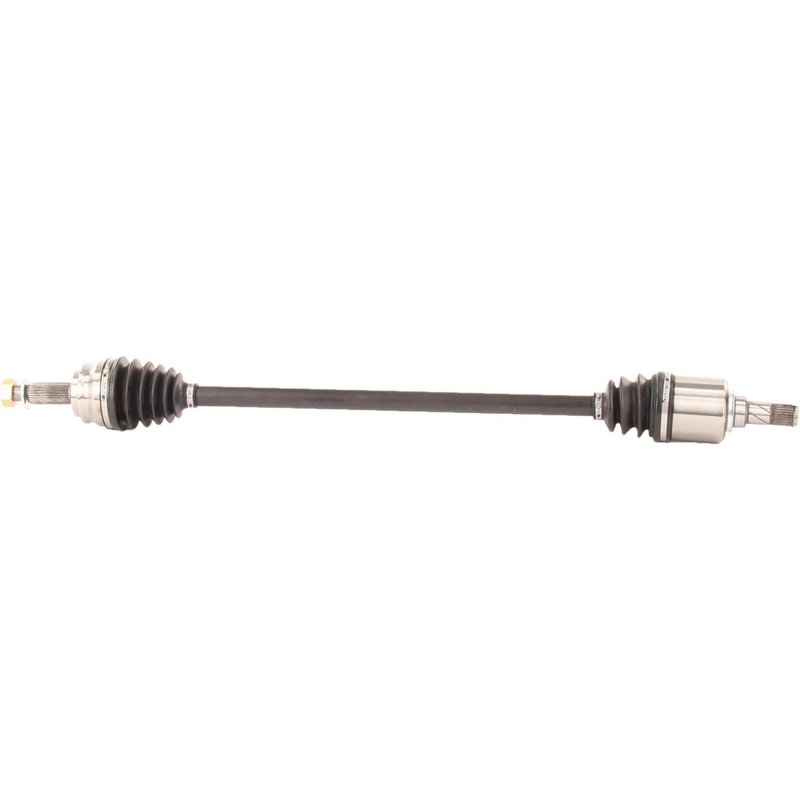

TrakMotive MI-8223 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft MI-8223 for Mitsubishi Lancer

The TrakMotive CV Axle Shaft MI-8223 is designed specifically for Mitsubishi Lancer models, providing reliable driveline performance. This new CV axle shaft ensures proper fitment and durability for your vehicle's front-wheel-drive system.

• Compatible with Mitsubishi Lancer
• New CV axle shaft with part number MI-8223
• Includes axle nut with hex head type
• Inboard joint type: Male with 27 splines
• Outboard joint type: Conventional with 28 splines
• Overall compressed length: 37.95 inches (964 mm)
• Axle nut thread size: M22*1.5 with standard locking

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components engineered for specific vehicle applications. The MI-8223 model is part of this line, offering a new, direct-fit CV axle shaft designed to meet OEM specifications for the Mitsubishi Lancer. This ensures compatibility and performance without the need for modifications.

Technical Specifications and Features

The MI-8223 CV axle shaft features a male inboard joint with 27 splines and a conventional outboard joint with 28 splines, both utilizing spline shaft connection styles for secure engagement. The included axle nut has a hex head type measuring 1.26 inches (32 mm) across flats, with a height of 0.59 inches (15 mm) and a length of 1.45 inches (36.95 mm). The axle nut thread size is M22*1.5 with a standard locking mechanism, ensuring proper torque retention during operation. The overall compressed length of the axle shaft is 37.95 inches (964 mm), matching the OEM dimensions for the Mitsubishi Lancer.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Mitsubishi Lancer
• Eliminates clicking or popping noises during turns caused by joint wear
• Restores smooth power transfer to front wheels
• Addresses vibration issues related to axle imbalance or joint failure
• Prevents grease leaks from torn CV boots by installing a new shaft assembly

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft MI-8223, ensure the vehicle is securely lifted and supported. Remove the old axle shaft carefully, noting the spline engagement and joint orientation. Use the included axle nut with the specified M22*1.5 thread size and torque it to the manufacturer's recommended specifications. Verify that the inboard and outboard joints seat properly to avoid premature wear. It is advisable to inspect related suspension and drivetrain components during installation.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft MI-8223 is a new, direct-fit replacement part manufactured to meet or exceed OEM standards. While specific warranty details are not provided, TrakMotive products typically undergo rigorous quality control to ensure durability and performance. For warranty information, refer to the product packaging or contact the manufacturer directly.
