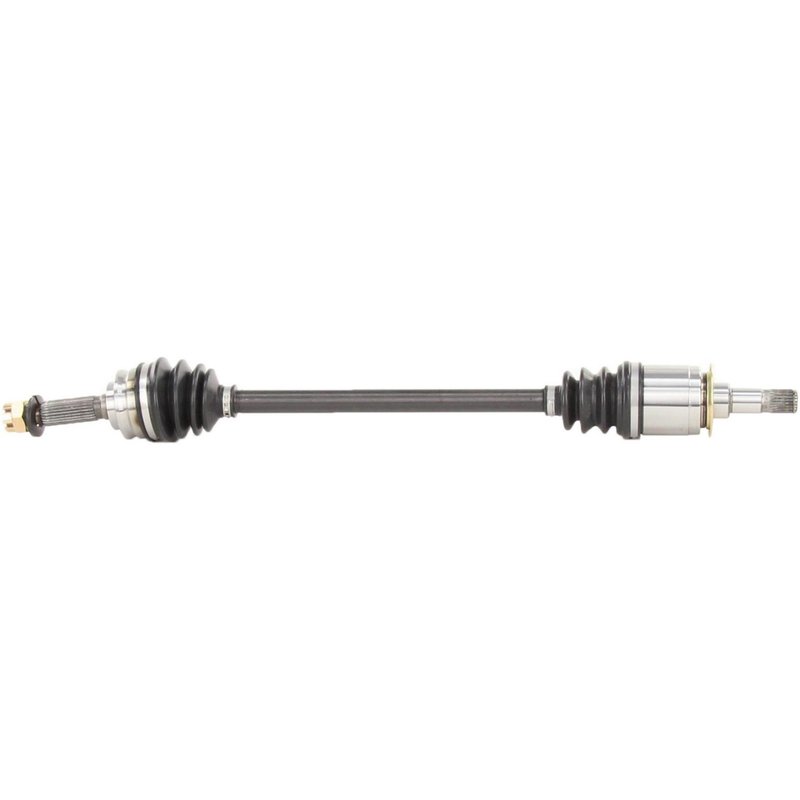

TrakMotive MI-8225 CV Axle Shaft - Rear Left
| Brand | TrakMotive MI-8225 |
|---|---|
| Position | Rear Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.87 |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (in) | 1.26 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.45 |
| Axle Nut Length (mm) | 36.95 |
| Axle Nut Locking Type | Cotter Pin |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 23 |
| Number Of Outboard Splines | 25 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 29.65 |
| Overall Compressed Length (mm) | 753 |
| Product line | CV Axle Shaft |
| Fits | Mitsubishi and Chevrolet · 29 vehicles |
New axle shaft. Fresh replacement part with a neoprene boot for dependable sealing.
Spline connections. Male inboard and conventional outboard joints for secure engagement.
Axle nut included. Comes with a hex nut and cotter pin locking type.
Cross-references TrakMotive MI-8225, 3715A007 and 3715A319 for the same application. See all 3.
CV Axle Shaft for Rear Left Applications
TrakMotive MI-8225 is a new CV axle shaft built for rear left driveline service on select Mitsubishi, Chevrolet, and Mitsubishi Outlander Sport applications. It is engineered with a neoprene boot, spline-style shaft connections, and included axle nut details for a direct replacement approach.
Key Features
- Brand: TrakMotive CV Axle Shaft, part number MI-8225
- New axle shaft construction for rear left placement
- Neoprene boot material for CV joint protection
- Male inboard joint with spline connection style
- Conventional outboard joint with spline connection style
- 23 inboard splines and 25 outboard splines
- Axle nut included with M22 x 1.5 thread size and cotter pin locking type
- No ABS tone ring included
- Overall compressed length: 29.65 in. (753 mm)
Detailed Description
TrakMotive MI-8225 is a rear left CV axle shaft for 2013-2017 Mitsubishi Lancer, 2016 Chevrolet Trax, 2008-2013 Mitsubishi Outlander, and 2011-2012 Mitsubishi Outlander Sport applications. This CV axle shaft is built as a new replacement unit and uses a neoprene boot to help protect the joint area from road debris and moisture. The axle includes the nut specification needed for service, with a 32 mm hex size, M22 x 1.5 thread, and cotter pin locking style.
TrakMotive’s CV Axle Shaft line focuses on replacement driveline components for passenger vehicles, and MI-8225 follows that approach with application-specific spline counts and compressed length for the listed rear left fitments. This part cross-references Mitsubishi OE numbers 3715A007 and 3715A319 for the same application.
What This Part Helps Address
- Clicking or popping noises from a worn CV joint
- Vibration during acceleration from a damaged axle assembly
- Grease leakage caused by a torn or deteriorated boot
- Excessive driveline play from worn splines or joint wear
- Rear left axle replacement needs on listed Mitsubishi and Chevrolet models
Installation Notes and Tips
Verify rear left fitment by matching the vehicle year, model, spline count, and compressed length before installation. Confirm axle nut thread size and locking style during service, and inspect surrounding suspension and hub components for wear that could affect axle performance. This axle does not include an ABS tone ring.
Quality Assurance
TrakMotive states that this CV axle shaft is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:1007 and TS 16949:2009 certification, reflecting controlled production and quality management practices.
| Year | Make | Model | Submodel | Drive Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 2017 | Mitsubishi | Lancer | ES | — | — | — | — | Rear Left | CV Axle Shaft |
| 2017 | Mitsubishi | Lancer | SEL | — | — | 2.4L | L4 | Rear Left | CV Axle Shaft |
| 2017 | Mitsubishi | Lancer | SE | — | — | 2.4L | L4 | Rear Left | CV Axle Shaft |
| 2016 | Chevrolet | Trax | — | FWD | Manual | 1.8L | L4 | Rear Left | CV Axle Shaft |
| 2016 | Chevrolet | Trax | — | FWD | Automatic | 1.8L | L4 | Rear Left | CV Axle Shaft |
| 2016 | Chevrolet | Trax | — | FWD | Automatic | 1.4L | L4 | Rear Left | CV Axle Shaft |
| 2016 | Chevrolet | Trax | — | FWD | Manual | 1.4L | L4 | Rear Left | CV Axle Shaft |
| 2016 | Mitsubishi | Lancer | ES | — | — | — | — | Rear Left | CV Axle Shaft |
| 2016 | Mitsubishi | Lancer | SEL | — | — | 2.4L | L4 | Rear Left | CV Axle Shaft |
| 2016 | Mitsubishi | Lancer | SE | — | — | 2.4L | L4 | Rear Left | CV Axle Shaft |
| 2016 | Mitsubishi | Lancer | GT | — | — | 2.4L | L4 | Rear Left | CV Axle Shaft |
| 2015 | Mitsubishi | Lancer | SE | — | — | 2.4L | L4 | Rear Left | CV Axle Shaft |
| 2015 | Mitsubishi | Lancer | GT | — | — | 2.4L | L4 | Rear Left | CV Axle Shaft |
| 2014 | Mitsubishi | Lancer | GT | — | — | 2.4L | L4 | Rear Left | CV Axle Shaft |
| 2014 | Mitsubishi | Lancer | GT Sportback | — | — | 2.4L | L4 | Rear Left | CV Axle Shaft |
| 2013 | Mitsubishi | Lancer | GT | — | — | 2.4L | L4 | Rear Left | CV Axle Shaft |
| 2013 | Mitsubishi | Lancer | GT Sportback | — | — | 2.4L | L4 | Rear Left | CV Axle Shaft |
| 2013 | Mitsubishi | Outlander | SE | — | — | 2.4L | L4 | Rear Left | 5 Passenger; CV Axle Shaft |
| 2013 | Mitsubishi | Outlander | ES | — | — | 2.4L | L4 | Rear Left | 5 Passenger; CV Axle Shaft |
| 2012 | Mitsubishi | Outlander | SE | — | — | 2.4L | L4 | Rear Left | 5 Passenger; CV Axle Shaft |
| 2012 | Mitsubishi | Outlander | ES | — | — | 2.4L | L4 | Rear Left | 5 Passenger; CV Axle Shaft |
| 2012 | Mitsubishi | Outlander Sport | — | — | — | — | — | Rear Left | CV Axle Shaft |
| 2011 | Mitsubishi | Outlander | SE | — | — | 2.4L | L4 | Rear Left | 5 Passenger; CV Axle Shaft |
| 2011 | Mitsubishi | Outlander | ES | — | — | 2.4L | L4 | Rear Left | 5 Passenger; CV Axle Shaft |
| 2011 | Mitsubishi | Outlander Sport | — | — | — | — | — | Rear Left | CV Axle Shaft |
| 2010 | Mitsubishi | Outlander | SE | — | — | 2.4L | L4 | Rear Left | 5 Passenger; CV Axle Shaft |
| 2010 | Mitsubishi | Outlander | ES | — | — | 2.4L | L4 | Rear Left | 5 Passenger; CV Axle Shaft |
| 2009 | Mitsubishi | Outlander | — | — | — | 2.4L | L4 | Rear Left | 5 Passenger; CV Axle Shaft |
| 2008 | Mitsubishi | Outlander | — | — | — | 2.4L | L4 | Rear Left | 5 Passenger; CV Axle Shaft |
