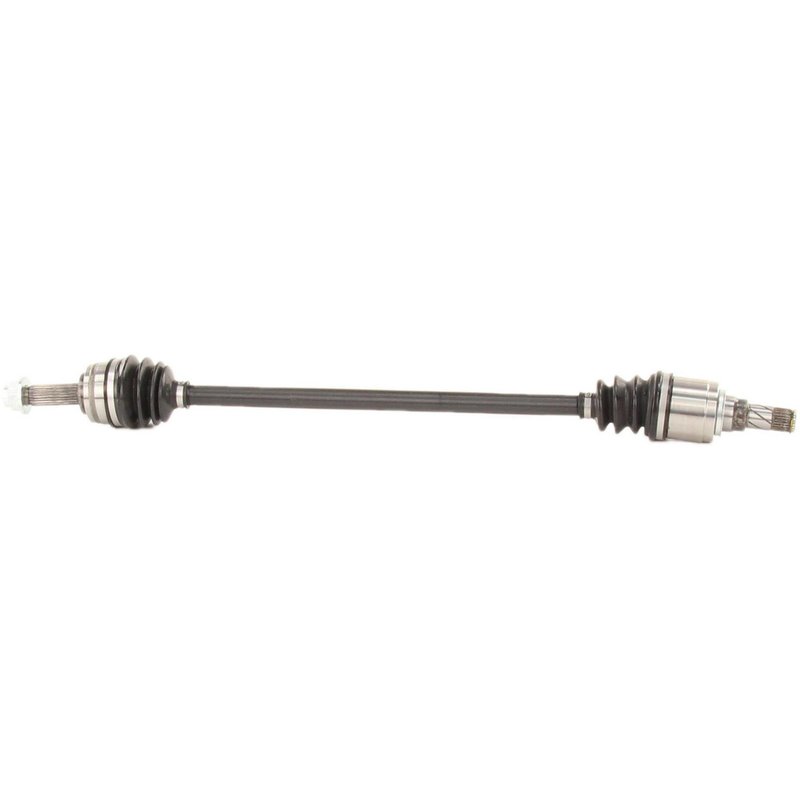

TrakMotive MI-8232 CV Axle Shaft - Front Right
| Brand | TrakMotive MI-8232 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.94 |
| Axle Nut Height (mm) | 24 |
| Axle Nut Hex Size (in) | 1.26 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.26 |
| Axle Nut Length (mm) | 36.95 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 25 |
| Number Of Outboard Splines | 24 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 33.78 |
| Overall Compressed Length (mm) | 858 |
| Product line | CV Axle Shaft |
| Fits | Mitsubishi · 7 vehicles |
OE-style replacement. New CV axle shaft with spline connections for straightforward installation.
Neoprene boot material. Helps resist wear while keeping the joint protected.
Axle nut included. Stake-lock design with hex head for secure fastening.
Cross-references TrakMotive MI-8232, 3815A424 and NCV51101 for the same application. See all 4.
CV Axle Shaft for Mitsubishi Mirage Front Right
TrakMotive MI-8232 is a new front right CV axle shaft for select Mitsubishi Mirage and Mirage G4 applications. It is built with a neoprene boot, spline-style shaft connections, and a conventional outboard joint for direct driveline service on listed vehicles.
Key Features
- Fits 2014-2015 Mitsubishi Mirage, front right
- Fits 2017-2018 Mitsubishi Mirage, front right
- Fits 2017-2018 Mitsubishi Mirage G4, front right
- New CV axle shaft with 25 inboard splines and 24 outboard splines
- Neoprene boot material for driveline protection
- Includes axle nut with M22 x 1.5 thread, 32 mm hex size, and stake locking type
- No ABS tone ring included
- Overall compressed length: 33.78 in. (858 mm)
TrakMotive MI-8232 is a replacement CV axle shaft for front right service on the Mitsubishi Mirage and Mitsubishi Mirage G4. The axle uses a male inboard joint, spline inboard and outboard shaft connections, and a conventional outboard joint layout to match the listed fitment. This part cross-references Mitsubishi OE-style numbers such as 3815A424 and NCV51101 for the same application.
Common Repair Symptoms
- Clicking or popping during turns from a worn outer CV joint
- Vibration or shudder during acceleration from axle wear
- Grease leakage from a damaged boot
- Clunking or driveline noise from excessive axle play
- Loss of smooth power transfer to the front right wheel
Installation Notes
Verify front right fitment by year, model, and axle configuration before installation. Confirm axle nut thread size, hex size, and locking style match the vehicle specification. Inspect hub, seals, and surrounding suspension components during replacement, and torque fasteners to the vehicle manufacturer’s service data.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. The manufacturer states its products are made by an ISO 9001:1007 and TS 16949:2009 certified company, supporting consistent production and quality control.
| Year | Make | Model | Transmission | Position | Notes |
|---|---|---|---|---|---|
| 2018 | Mitsubishi | Mirage | Automatic CVT | Front Right | CV Axle Shaft |
| 2018 | Mitsubishi | Mirage G4 | Automatic CVT | Front Right | CV Axle Shaft |
| 2017 | Mitsubishi | Mirage | Automatic CVT | Front Right | CV Axle Shaft |
| 2017 | Mitsubishi | Mirage G4 | Automatic CVT | Front Right | CV Axle Shaft |
| 2015 | Mitsubishi | Mirage | Automatic | Front Right | CV Axle Shaft |
| 2015 | Mitsubishi | Mirage | Automatic CVT | Front Right | CV Axle Shaft |
| 2014 | Mitsubishi | Mirage | Automatic CVT | Front Right | CV Axle Shaft |
| No rows match your filter. | |||||
