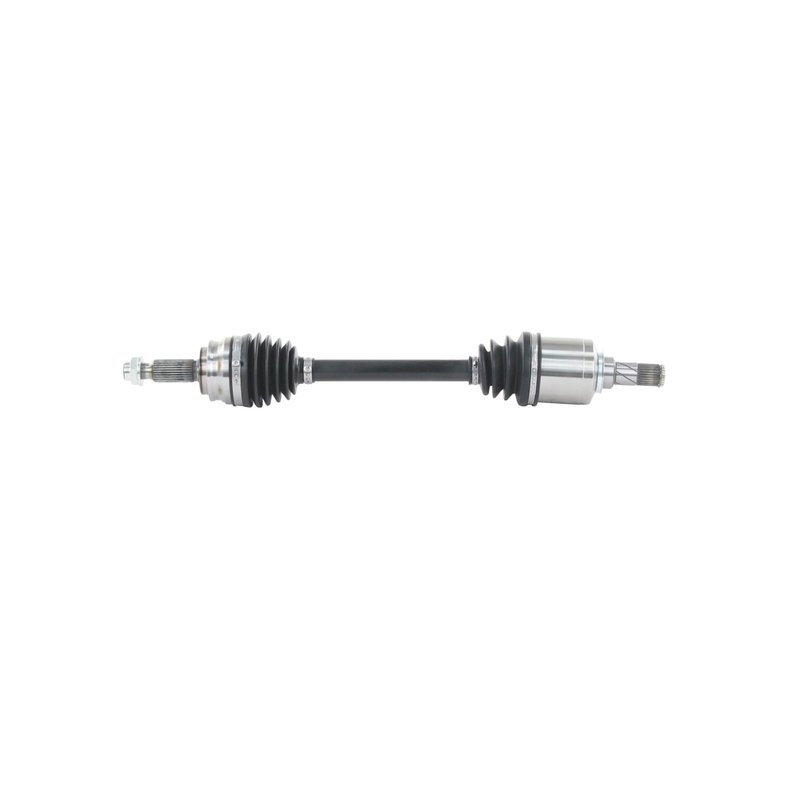

TrakMotive MI-86005 CV Axle Shaft - Front Left

TrakMotive MI-86005 Front Left CV Axle Shaft

The TrakMotive AAR CV Axle Shaft MI-86005 is a premium replacement for the front left driveline position on select Mitsubishi applications. It is built for OE AAR design fitment and includes the axle nut specified for the application.

Key Features

• Premium-grade CV axle shaft for front left installation
• OE AAR design for Mitsubishi Outlander, Outlander Sport, and RVR applications
• Inboard joint type: male with spline connection
• 27 inboard splines and 28 outboard splines
• Inboard boot material: neoprene
• Outboard boot material: thermoplastic
• Axle nut included; M22x1.5 thread, 32 mm hex size, stake locking type
• Overall compressed length: 651 mm; overall extended length: 703 mm

Detailed Description

TrakMotive MI-86005 is a front left CV axle shaft for 2008-2020 Mitsubishi Outlander, 2013-2020 Mitsubishi Outlander Sport, and 2013-2019 Mitsubishi RVR. This AAR CV Axle Shaft follows the OE AAR design and uses a conventional outboard joint with spline connections at both ends for direct driveline replacement. The axle is configured with a male inboard joint, neoprene inboard boot, and thermoplastic outboard boot for the specified Mitsubishi fitments.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application. TrakMotive MI-86005 is a direct-fit option for Mitsubishi Outlander front left axle replacement, Mitsubishi Outlander Sport front left axle replacement, and Mitsubishi RVR front left CV axle service.

What It Is Used For

• Replacing a worn or noisy front left CV axle shaft
• Restoring smooth power transfer from the transaxle to the wheel
• Addressing clicking or popping during turns caused by CV joint wear
• Correcting vibration or shudder related to axle shaft wear
• Servicing damaged boots, splines, or axle nut hardware on the listed Mitsubishi models

Installation Notes and Tips

Verify the vehicle’s front left application, spline count, and axle nut thread size before installation. Confirm compressed and extended length against the original axle shaft to ensure proper fitment on the Mitsubishi Outlander, Outlander Sport, or RVR. Use the included axle nut with the specified 32 mm hex size and stake-style locking method during installation.

Quality Assurance

TrakMotive identifies this as a premium-grade AAR CV axle shaft built to OE design specifications for the listed applications. Part number MI-86005 is the referenced replacement identifier for this front left driveline service part.
