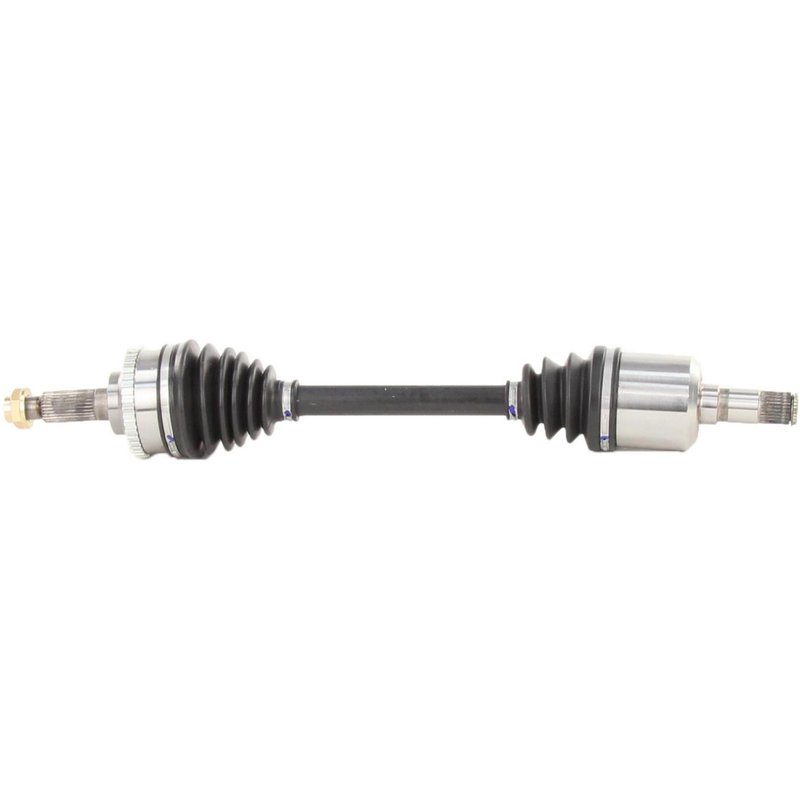

TrakMotive MZ-8010 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft MZ-8010 for Mazda Millenia

The TrakMotive CV Axle Shaft MZ-8010 is engineered specifically for Mazda Millenia models, providing reliable driveline performance. Designed as a new replacement part, this axle shaft ensures precise fitment and durability for your vehicle's CV components.

• Compatible with Mazda Millenia vehicles
• Includes a neoprene boot for enhanced protection
• Equipped with a 44-tooth ABS ring and included tone ring
• Features a hex head axle nut with stake locking
• Overall compressed length of 26.06 inches (662 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering quality CV components designed to meet OEM specifications. This line emphasizes durability and precise engineering, ensuring that each axle shaft, including the MZ-8010, integrates seamlessly with the vehicle’s driveline system. The inclusion of features such as a neoprene boot and ABS tone ring highlights the line’s attention to both performance and safety.

Technical Specifications and Features

The MZ-8010 CV Axle Shaft includes a 44-tooth ABS ring with a toothed design and an ABS tone ring for accurate wheel speed sensor readings. The axle nut is a hex type with a 1 1/4 inch (31.8 mm) hex size, 4/5 inch (20 mm) height, and a length of 1 1/3 inches (34.4 mm). It uses a stake locking mechanism and has an M22*1.5 thread size. The shaft features 28 splines on both the inboard and outboard ends, with the inboard joint type being male and the outboard joint conventional. The neoprene boot material offers resistance to wear and environmental factors, contributing to the longevity of the joint.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Mazda Millenia
• Restores proper ABS sensor function with included tone ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage with durable neoprene boot
• Ensures secure wheel attachment with included stake locking axle nut

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft MZ-8010, ensure compatibility with your Mazda Millenia model year. Use proper torque specifications for the M22*1.5 axle nut and verify the stake locking mechanism is properly engaged to prevent loosening. Inspect the neoprene boot for any damage during installation to maintain joint protection. It is recommended to replace axle nuts with the included new hardware to ensure secure fitment.

Quality Assurance and Warranty

This CV Axle Shaft is a new, not remanufactured, component designed to meet or exceed OEM standards. TrakMotive products undergo rigorous quality control to ensure durability and performance. While specific warranty details are not provided, the new condition and OEM-level specifications support reliable service life when installed correctly.
