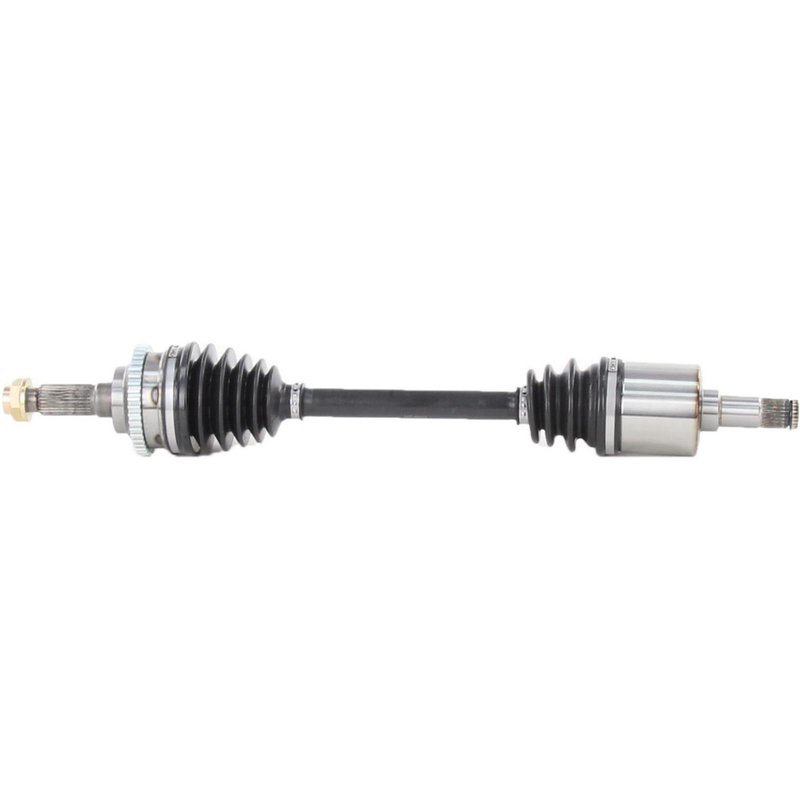

TrakMotive MZ-8012 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft MZ-8012

The TrakMotive CV Axle Shaft MZ-8012 is engineered for reliable driveline performance in select Kia and Mazda vehicles. Designed specifically for models such as the Kia Sephia and Mazda Protege, this new CV axle shaft ensures precise fitment and durability.

• Compatible with Kia MX-3, Mazda Protege, and Kia Sephia models
• Includes a neoprene boot for enhanced protection
• Equipped with a 44-tooth ABS ring and included tone ring
• Features a hex head axle nut with stake locking mechanism
• Overall compressed length of 24.76 inches (629 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering quality CV components designed to meet OEM specifications. This line emphasizes precise engineering, including correct spline counts and joint types, to ensure compatibility and performance. The MZ-8012 model exemplifies this approach with its male inboard joint and conventional outboard joint, providing a reliable connection for the driveline system.

Technical Specifications and Features

This CV axle shaft features a neoprene boot material that offers resistance to wear and environmental factors. The inboard joint is a male type with 24 splines, while the outboard joint is conventional with 26 splines, ensuring proper engagement with the vehicle’s drivetrain. The included ABS ring has 44 teeth and a toothed design, complete with a tone ring to maintain accurate ABS sensor readings. The axle nut is a hex head type measuring 1 1/4 inches (31.8 mm) across flats, with a height of 4/5 inch (20 mm) and a length of 1 1/3 inches (34.4 mm). It uses an M22x1.5 thread size and features a stake locking mechanism for secure installation.

Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Kia MX-3, Mazda Protege, and Kia Sephia
• Addresses issues such as torn or leaking CV boots
• Resolves axle vibration or clicking noises during turns
• Corrects ABS sensor errors caused by faulty tone rings
• Fixes axle nut loosening or improper torque retention

Installation Notes and Tips

Ensure the axle nut is torqued to manufacturer specifications and properly staked to prevent loosening. Verify the correct orientation of the male inboard joint and conventional outboard joint during installation. Inspect the neoprene boot for any damage before installation to maintain joint protection. Confirm the ABS tone ring is properly seated to avoid sensor malfunctions.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft MZ-8012 is a new, not remanufactured, component built to meet OEM standards. It includes all necessary hardware such as the axle nut with a stake locking feature to ensure secure fitment. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls for durability and performance.
