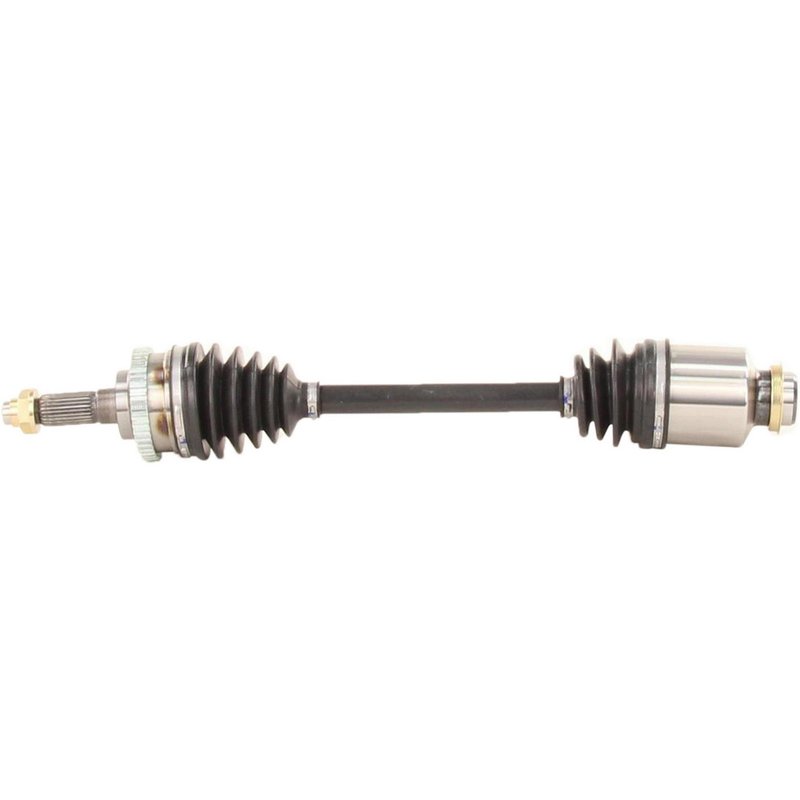

TrakMotive MZ-8019 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft MZ-8019 for Kia Sephia

The TrakMotive CV Axle Shaft MZ-8019 is designed specifically for Kia Sephia models, providing reliable driveline performance. This new CV axle shaft features a neoprene boot and includes a complete axle nut assembly for secure installation.

• Compatible with Kia Sephia vehicles
• Includes axle nut with stake locking type and hex head
• Neoprene boot material for durability and protection
• 44-tooth ABS ring with included tone ring for accurate ABS sensor function
• Overall compressed length of 24.17 inches (614 mm)

Detailed Specifications of the CV Axle Shaft MZ-8019

This TrakMotive CV Axle Shaft from the CV Axle Shaft product line is engineered to meet OEM standards for Kia Sephia driveline components. It features a female inboard joint type with 28-2t splines and a conventional outboard joint with 26 splines. The axle nut included has a hex head measuring 1 1/4 inches (31.8 mm) across flats, with a height of 4/5 inch (20 mm) and a length of 1 1/3 inches (34.4 mm). The nut uses an M22x1.5 thread size and a stake locking mechanism to ensure secure fastening. The ABS ring is a toothed type with 44 teeth and includes the ABS tone ring for proper sensor operation. The neoprene boot material offers resistance to wear and environmental factors, extending the life of the joint.

Applications and Common Issues Addressed

• Replacement for worn or damaged CV axle shafts on Kia Sephia
• Resolves clicking or popping noises during turns caused by joint wear
• Fixes vibration or shuddering issues related to axle imbalance or damage
• Restores proper ABS sensor function with included tone ring
• Prevents grease leakage and contamination with durable neoprene boot

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft MZ-8019, ensure the axle nut is torqued to manufacturer specifications and properly staked to prevent loosening. The included hex head axle nut simplifies installation with standard tools. Verify the ABS tone ring is correctly positioned to maintain accurate sensor readings. Inspect the mating surfaces and splines for cleanliness and damage before assembly to ensure a secure fit. This part is designed for direct replacement on compatible Kia Sephia models.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft MZ-8019 is a new, not remanufactured, component built to meet or exceed OEM quality standards. It undergoes rigorous testing to ensure durability and performance in driveline applications. While specific warranty details are not provided, TrakMotive products typically come with manufacturer-backed coverage to protect against defects in materials and workmanship.
