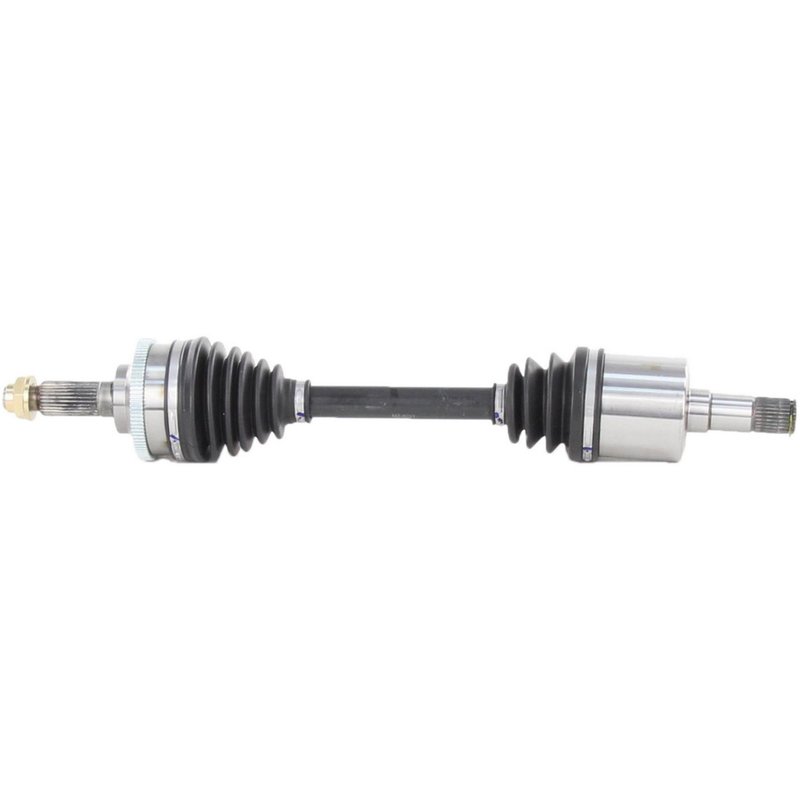

TrakMotive MZ-8021 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft MZ-8021

The TrakMotive CV Axle Shaft MZ-8021 is engineered for reliable driveline performance in select Ford and Mazda vehicles. Designed to meet OEM specifications, this new CV axle shaft ensures proper fit and function for models including the Ford Probe and Mazda 626 and MX-6.

• Compatible with Ford 626, Mazda MX-6, and Ford Probe models
• Includes ABS tone ring with 90 toothed ring count for accurate wheel speed sensing
• Equipped with a neoprene boot for enhanced durability and protection
• Axle nut included with hex head, stake locking type, and M22x1.5 thread size
• Overall compressed length of 23.78 inches (604 mm) for precise fitment

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering high-quality constant velocity components designed to restore driveline integrity. This line emphasizes exact fitment and durability, featuring components such as ABS tone rings and neoprene boots to maintain vehicle safety systems and protect against contaminants. The MZ-8021 part exemplifies these standards with its comprehensive design tailored for specific Ford and Mazda applications.

Technical Specifications and Features

This CV axle shaft features a male inboard joint type with 28 splines and a conventional outboard joint also with 28 splines, ensuring secure shaft connections. The included ABS tone ring is toothed with 90 teeth, supporting accurate anti-lock braking system operation. The axle nut is a hex head type measuring 1 1/4 inches (31.8 mm) across flats, with a height of 4/5 inch (20 mm) and a length of 1 1/3 inches (34.4 mm). It uses a stake locking mechanism to maintain secure fastening during operation. The neoprene boot material provides resistance to wear and environmental factors, extending the service life of the joint.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Ford Probe, Mazda 626, and MX-6
• Restores proper ABS sensor function with included toothed ABS tone ring
• Eliminates axle vibration and noise caused by joint wear or boot failure
• Prevents grease leakage and contamination with durable neoprene boot
• Secures wheel hub connection with included axle nut and stake locking

Installation Notes and Tips

Ensure compatibility by verifying vehicle make and model before installation. Use proper torque specifications for the M22x1.5 axle nut and confirm the stake locking is correctly engaged to prevent loosening. Inspect the CV boot for any damage during installation and replace if necessary. The overall compressed length of 23.78 inches (604 mm) should match the original axle shaft to maintain driveline geometry.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft MZ-8021 is a new, not remanufactured, component built to meet or exceed OEM standards. It includes an ABS tone ring and axle nut to provide a complete replacement solution. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliable performance and durability.
