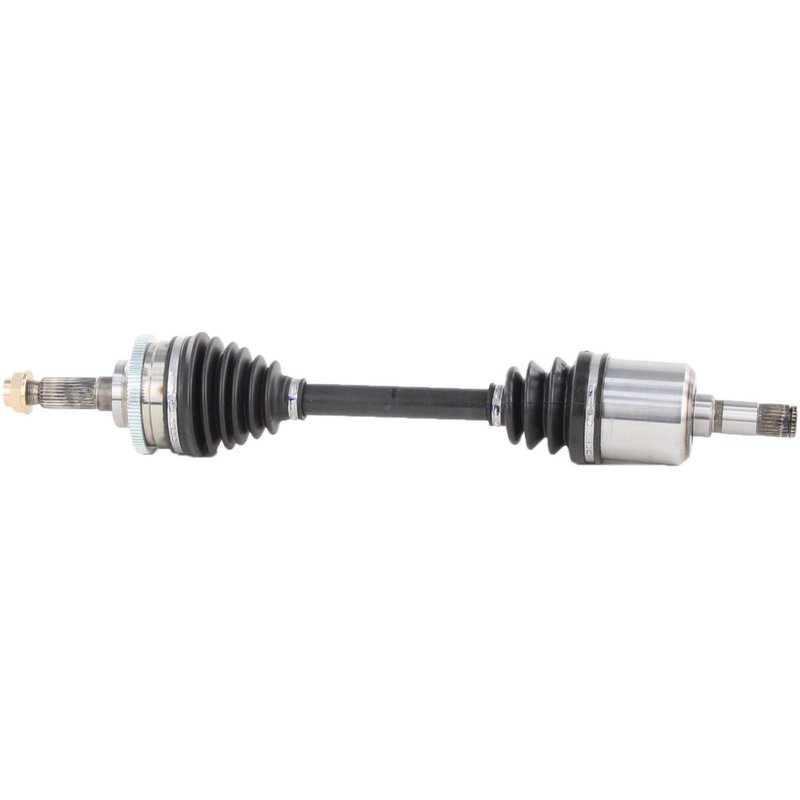

TrakMotive MZ-8023 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft MZ-8023

The TrakMotive CV Axle Shaft MZ-8023 is engineered for reliable driveline performance in select Ford and Mazda vehicles. Designed to meet OEM specifications, this new CV axle shaft ensures consistent power transfer and durability for your vehicle's front-wheel or all-wheel drive system.

• Compatible with Ford Probe and Mazda 626, MX-6 models
• Includes a neoprene boot for enhanced protection against contaminants
• Equipped with a 90-tooth ABS ring and included tone ring for accurate wheel speed sensing
• Features a hex head axle nut with stake locking for secure installation
• Overall compressed length of 24.02 inches (610 mm) for precise fitment

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering high-quality constant velocity components designed to restore driveline integrity. This line emphasizes compatibility with specific vehicle makes and models, ensuring that each axle shaft meets exacting standards for spline count, joint type, and boot material. The MZ-8023 model exemplifies this approach by combining a male inboard joint and conventional outboard joint with durable neoprene boots and a robust ABS tone ring system.

Technical Specifications and Features

This CV axle shaft features a male inboard joint type with 26 splines and a conventional outboard joint also with 26 splines, providing a secure and precise connection to the drivetrain. The included ABS ring has 90 teeth and a toothed design, paired with an ABS tone ring to maintain accurate wheel speed data for ABS systems. The axle nut is a hex head type measuring 1 1/4 inches (31.8 mm) across flats, with a height of 4/5 inch (20 mm) and a length of 1 1/3 inches (34.4 mm). It uses an M22x1.5 thread size and a stake locking mechanism to prevent loosening during operation. The neoprene boot material offers resistance to wear and environmental damage, extending the service life of the joint.

Applications and Common Issues Addressed

• Replacement for worn or damaged CV axle shafts on Ford Probe and Mazda 626, MX-6
• Resolves clicking or popping noises during turns caused by joint wear
• Eliminates vibration or shuddering under acceleration due to axle imbalance
• Prevents grease leakage and contamination with durable neoprene boots
• Restores proper ABS sensor function with integrated ABS tone ring

Installation Notes and Tips

Ensure compatibility by verifying vehicle make, model, and year before installation. Use the included hex axle nut with stake locking to secure the axle shaft properly. It is recommended to inspect related suspension and drivetrain components during replacement. Proper torque specifications should be followed to avoid premature wear or failure. The neoprene boot should be checked for any damage during installation to maintain joint protection.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft MZ-8023 is a new, not remanufactured, component built to meet or exceed OEM standards. It undergoes rigorous quality control to ensure durability and performance. While specific warranty details are not provided here, TrakMotive products typically come with manufacturer-backed warranties covering defects in materials and workmanship.
