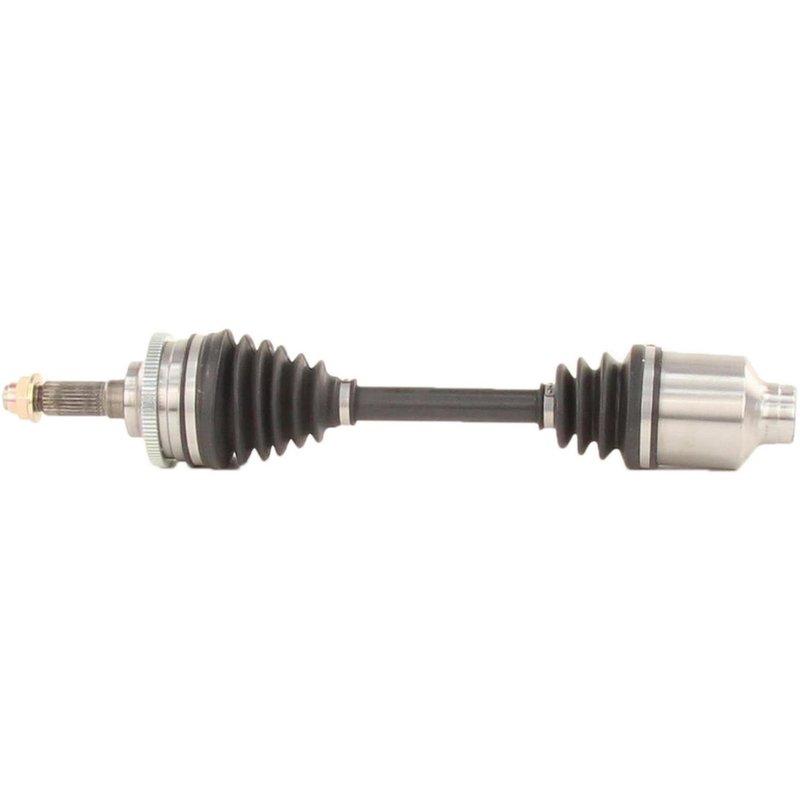

TrakMotive MZ-8024 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft MZ-8024

The TrakMotive CV Axle Shaft MZ-8024 is engineered for reliable driveline performance in select Ford and Mazda vehicles. Designed to meet OEM specifications, this new CV axle shaft ensures proper fit and function for models including the Ford Probe and Mazda 626 and MX-6.

• Compatible with Ford 626, Mazda MX-6, and Ford Probe models
• Includes a toothed ABS tone ring with 90 teeth for accurate wheel speed sensing
• Equipped with a neoprene boot for enhanced durability and protection
• Axle nut features a hex head design with stake locking for secure installation
• Overall compressed length of 21.69 inches (551 mm) for precise fitment

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering quality CV components designed to restore driveline integrity. This line emphasizes compatibility with specific vehicle makes and models, ensuring that each axle shaft meets the mechanical and dimensional requirements necessary for proper operation. The MZ-8024 part is a new, not remanufactured, component that includes all necessary hardware such as the axle nut and ABS tone ring, streamlining replacement procedures.

Technical Specifications and Features

This CV axle shaft features a female inboard joint type with 26-2 splines and a conventional outboard joint with 26 splines, providing a secure connection to the drivetrain. The included ABS tone ring is toothed with 90 teeth, supporting accurate anti-lock braking system functionality. The axle nut is a hex head type measuring 1 1/4 inches (31.8 mm) across flats, with a height of 4/5 inch (20 mm) and a length of 1 1/3 inches (34.4 mm). It uses an M22x1.5 thread size and a stake locking mechanism to prevent loosening during operation. The neoprene boot material offers resistance to wear and environmental factors, helping to maintain joint integrity over time.

Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Ford 626, Mazda MX-6, and Ford Probe
• Restores proper ABS sensor function by including the correct toothed ABS tone ring
• Eliminates axle vibration and noise caused by joint wear or boot failure
• Prevents grease leakage and contamination with durable neoprene boot
• Secures drivetrain connection with included axle nut and proper locking mechanism

Installation Notes and Tips

Ensure compatibility by verifying vehicle make and model before installation. The included axle nut requires a 1 1/4 inch (31.8 mm) hex socket for tightening. Use a torque wrench to apply manufacturer-recommended torque values and stake the axle nut to secure it properly. Inspect the CV boot for any damage during installation and replace if necessary. Proper alignment of the inboard and outboard splines is critical to avoid drivetrain issues.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft MZ-8024 is a new component manufactured to meet or exceed OEM standards. It includes all necessary hardware for installation and is designed for durability and reliable performance. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure fit and function for the specified Ford and Mazda models.
