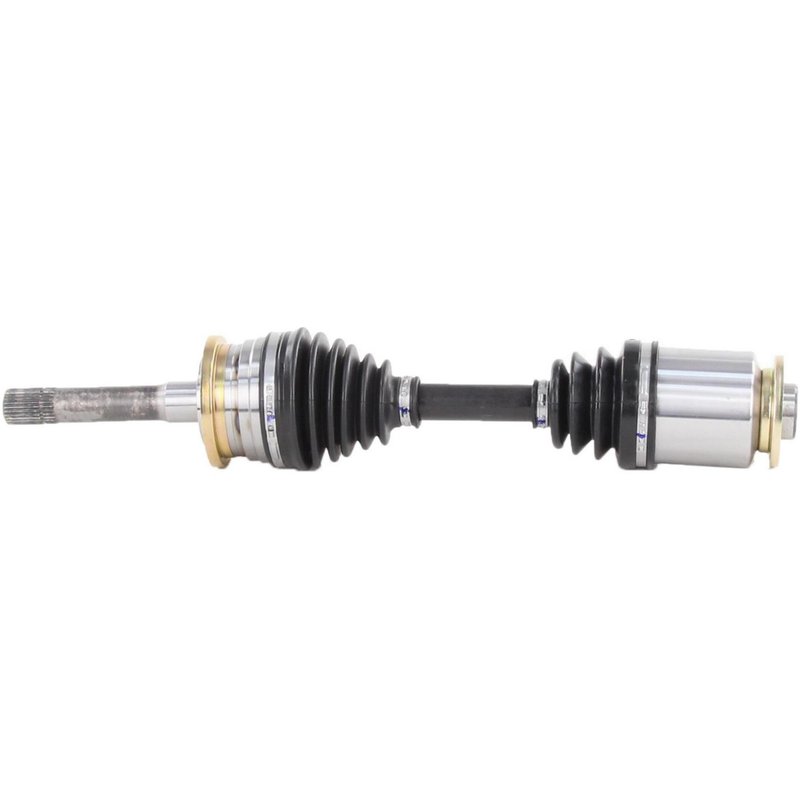

TrakMotive MZ-8043 CV Axle Shaft - Front Left
| Brand | TrakMotive MZ-8043 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Bolt Hex Size (mm) | 13 |
| Axle Bolt Length (mm) | 45.3 |
| Axle Bolt Thread Size | M8*1.25 |
| Axle Nut Included | No |
| Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Female |
| New Or Remanufactured | New |
| Number Of Bolt Holes | 1 |
| Number Of Inboard Splines | 26-2T |
| Number Of Outboard Shaft Bolts | 1 |
| Number Of Outboard Splines | 26 |
| Outboard Joint Type | Male |
| Outboard Shaft Connection Style | Male |
| Overall Compressed Length (in) | 21.1 |
| Overall Compressed Length (mm) | 536 |
| Product line | CV Axle Shaft |
| Fits | Mazda · 7 vehicles |
New CV axle shaft. A direct replacement for worn driveline components.
Neoprene boot material. Helps protect the joint from dirt and moisture.
ISO 9001 and TS 16949 certified. Built by a quality-managed manufacturer.
Cross-references Anchor 2537, Cardone New 66-8020 and Cardone Reman 60-8020 for the same application. See all 22.
CV Axle Shaft for Mazda B2600 Front Left
TrakMotive MZ-8043 is a new CV axle shaft for front left applications on the 1987-1993 Mazda B2600. It is built with a neoprene boot, female inboard connection, and male outboard connection for direct driveline replacement on the specified vehicle range.
Key Features
- Part number MZ-8043 CV axle shaft
- Fits 1987-1993 Mazda B2600, front left
- New construction with a 21.1 in. (536 mm) compressed length
- Neoprene boot material for CV joint protection
- Female inboard shaft connection style
- Male outboard shaft connection style
- 26 inboard splines and 26 outboard splines
- Axle bolt thread size: M8 x 1.25
- Axle bolt hex size: 13 mm
- Axle bolt length: 45.3 mm
- No axle nut included
- No ABS tone ring included
Product Details
TrakMotive CV axle shaft MZ-8043 is engineered for the front left side of the Mazda B2600 from 1987 through 1993. The axle uses a female inboard joint and male outboard joint configuration, with 26 splines on both ends and a compressed length of 21.1 inches to match the listed application. TrakMotive identifies this as a new part and notes that ABS axles fit non-ABS applications unless otherwise noted. This part cross-references Cardone New 66-8020 for the same application.
Common Replacement Reasons
- Clicking or popping during turns from worn CV joints
- Vibration during acceleration caused by axle wear
- Torn or deteriorated CV boot allowing grease loss
- Axle shaft damage from age, road impact, or joint failure
- Front left driveline noise on a Mazda B2600
Installation Notes
Verify spline count, axle length, bolt thread size, and side before installation. Confirm front left placement on the 1987-1993 Mazda B2600 and compare the existing axle to MZ-8043 before assembly. Inspect seals, hub components, and surrounding suspension parts during replacement to help prevent repeat driveline noise.
Quality Assurance
TrakMotive states that this CV axle shaft is produced by an ISO 9001:1007 and TS 16949:2009 certified company. Manufacturer coverage includes a limited lifetime warranty.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 1993 | Mazda | B2600 | 4WD | Front Left | CV Axle Shaft |
| 1992 | Mazda | B2600 | 4WD | Front Left | CV Axle Shaft |
| 1991 | Mazda | B2600 | 4WD | Front Left | CV Axle Shaft |
| 1990 | Mazda | B2600 | 4WD | Front Left | CV Axle Shaft |
| 1989 | Mazda | B2600 | 4WD | Front Left | CV Axle Shaft |
| 1988 | Mazda | B2600 | 4WD | Front Left | CV Axle Shaft |
| 1987 | Mazda | B2600 | 4WD | Front Left | CV Axle Shaft |
