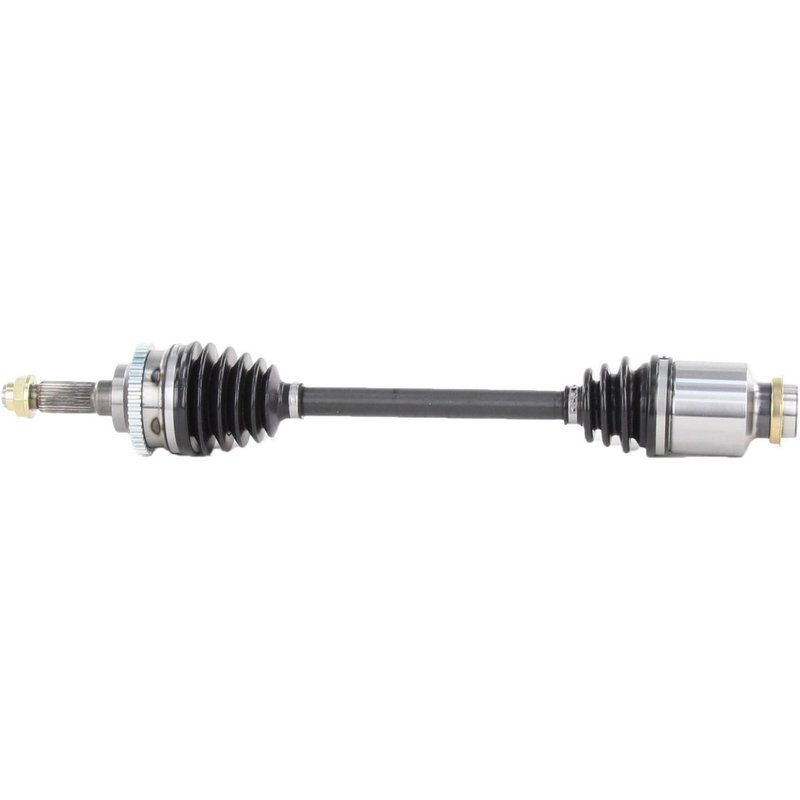

TrakMotive MZ-8053 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft MZ-8053 for Mazda Protege

The TrakMotive CV Axle Shaft MZ-8053 is engineered specifically for Mazda Protege models, providing reliable driveline performance. This new CV axle shaft is designed to meet OEM specifications, ensuring proper fit and function for your vehicle's front-wheel drive system.

• Compatible with Mazda Protege vehicles
• Includes a 44-tooth ABS ring with a toothed design for accurate wheel speed sensing
• Equipped with a neoprene boot for enhanced durability and protection
• Comes with a hex head axle nut (M22*1.5 thread size) featuring a stake locking mechanism
• Overall compressed length of 24.41 inches (620 mm) for precise fitment

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering quality CV components that maintain driveline integrity and vehicle safety. This line includes shafts with integrated ABS tone rings and durable neoprene boots to protect against contaminants and wear. The MZ-8053 model exemplifies this approach by combining essential features such as a female inboard joint and conventional outboard joint types, ensuring compatibility and performance for Mazda Protege applications.

Technical Specifications and Features

The MZ-8053 CV axle shaft features a 44-tooth ABS ring with a toothed design, which is included to support the vehicle's anti-lock braking system. The axle nut included is a hex head type measuring 1 1/4 inches (31.8 mm) across flats, with a height of 4/5 inch (20 mm) and a length of 1 1/3 inches (34.4 mm). It uses a stake locking mechanism to secure the nut in place. The shaft itself has 28-2t inboard splines with a female connection style and 26 outboard splines with a conventional joint type. The neoprene boot material offers resistance to environmental factors, extending the life of the joint and shaft assembly.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Mazda Protege
• Restores proper ABS sensor function with included toothed ABS tone ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage and contamination with durable neoprene boot
• Secures wheel hub connection with included stake-locking axle nut

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft MZ-8053 on a Mazda Protege, ensure the axle nut is torqued to manufacturer specifications and properly staked to prevent loosening. Verify the ABS tone ring is correctly aligned to maintain accurate wheel speed sensor readings. Inspect the neoprene boot for any damage during installation to ensure long-term protection. It is recommended to replace axle nuts with the included new hardware to maintain secure fitment.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component designed to meet or exceed OEM standards. TrakMotive provides quality assurance through rigorous manufacturing controls. While specific warranty details are not provided here, the product is backed by TrakMotive's commitment to durability and fitment accuracy for Mazda Protege vehicles.
