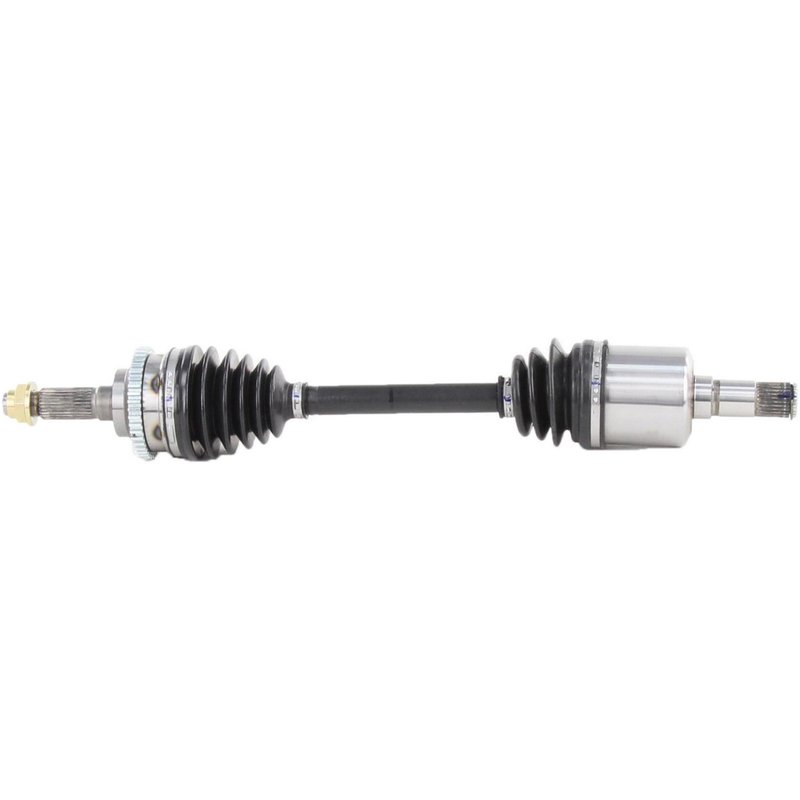

TrakMotive MZ-8055 CV Axle Shaft - Front Left
| Brand | TrakMotive MZ-8055 |
|---|---|
| Position | Front Left |
| Abs Ring Tooth Count | 44 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 4/5 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 28 |
| Number Of Outboard Splines | 26 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 24.53 |
| Overall Compressed Length (mm) | 623 |
| Product line | CV Axle Shaft |
| Fits | Mazda · 5 vehicles |
New axle shaft. Direct replacement for a worn driveline component.
Neoprene boot. Helps resist wear while keeping the joint protected.
ABS tone ring included. 44-tooth toothed ring supports ABS-equipped applications.
Cross-references Cardone New 66-8098, Cardone Reman 60-8054 and Cardone Reman 60-8098 for the same application. See all 24.
TrakMotive CV Axle Shaft MZ-8055
TrakMotive MZ-8055 is a new CV axle shaft for front left applications on select Mazda vehicles. It is built with a neoprene boot, a toothed ABS ring with 44 teeth, and the included axle nut for a direct replacement on the listed fitments.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: MZ-8055
- Fits 1992-1995 Mazda MX-3, front left
- Fits 1995 Mazda Protege, front left
- New axle shaft construction
- Neoprene boot material
- ABS tone ring included; toothed ring with 44 teeth
- Male inboard shaft connection with 28 inboard splines
- Conventional outboard joint with 26 outboard splines
- Overall compressed length: 24.53 in. (623 mm)
- Axle nut included: M22 x 1.5 thread, 31.8 mm hex size, stake locking type
Product Details
This TrakMotive CV axle shaft is engineered for front left driveline service on the 1992-1995 Mazda MX-3 and the 1995 Mazda Protege. The MZ-8055 uses a male inboard connection, a conventional outboard joint, and an integrated ABS tone ring to match the listed vehicle applications. TrakMotive identifies this axle as a new replacement part and notes that ABS axles fit non-ABS applications unless otherwise noted. This part cross-references Cardone New 66-8098 for the same application.
Common Problems This Part Can Address
- Clicking or popping during turns caused by worn CV joints
- Vibration under acceleration from a damaged axle shaft
- Torn or leaking axle boot conditions
- ABS warning concerns related to a damaged tone ring or sensor input
- Driveline noise from excessive axle wear
Installation Notes
Verify front left fitment, spline count, axle nut thread size, and overall compressed length before installation. Confirm ABS and non-ABS vehicle configuration against the application notes, and inspect the hub, seals, and mating components during replacement. Use the correct stake-style axle nut procedure for the M22 x 1.5 nut specified for this axle.
Quality Assurance
TrakMotive states that this CV axle shaft is backed by a limited lifetime warranty and produced by an ISO 9001:1007 and TS 16949:2009 certified company.
| Year | Make | Model | Drive Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 1995 | Mazda | MX-3 | FWD | Manual | 1.8L | V6 | Front Left | CV Axle Shaft |
| 1995 | Mazda | Protege | FWD | Manual | 1.8L | L4 | Front Left | CV Axle Shaft |
| 1994 | Mazda | MX-3 | — | Manual | 1.8L | V6 | Front Left | CV Axle Shaft |
| 1993 | Mazda | MX-3 | — | Manual | 1.8L | V6 | Front Left | CV Axle Shaft |
| 1992 | Mazda | MX-3 | — | Manual | 1.8L | V6 | Front Left | CV Axle Shaft |
