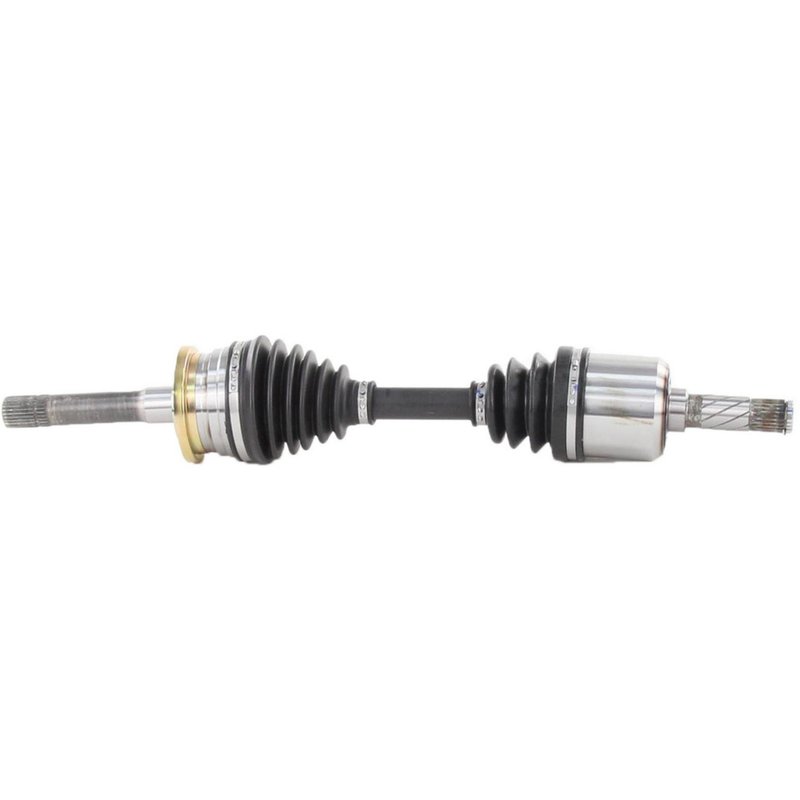

TrakMotive MZ-8057 CV Axle Shaft - Front Right
| Brand | TrakMotive MZ-8057 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Bolt Hex Size (mm) | 13 |
| Axle Bolt Length (mm) | 45.3 |
| Axle Bolt Thread Size | M8*1.25 |
| Axle Nut Included | No |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Bolt Holes | 1 |
| Number Of Inboard Splines | 26 |
| Number Of Outboard Shaft Bolts | 1 |
| Number Of Outboard Splines | 26 |
| Outboard Joint Type | Male |
| Outboard Shaft Connection Style | Male |
| Overall Compressed Length (in) | 24 |
| Overall Compressed Length (mm) | 609.5 |
| Product line | CV Axle Shaft |
| Fits | Mazda · 7 vehicles |
New replacement shaft. Built as a new CV axle shaft for straightforward replacement.
Neoprene boot material. Helps resist wear while keeping the joint protected.
ISO certified company. Manufactured by a company certified to ISO 9001 and TS 16949 standards.
Cross-references Cardone New 66-8019, Cardone Reman 60-8019 and Carlson 7702 for the same application. See all 19.
CV Axle Shaft for Mazda B2600 Front Right
TrakMotive MZ-8057 is a new CV axle shaft for the front right position on 1987-1993 Mazda B2600 models. It is built with 26 inboard splines and 26 outboard splines, a neoprene boot, and male inboard and outboard shaft connections for the listed application.
Key Features
- Fits 1987-1993 Mazda B2600, front right
- TrakMotive CV Axle Shaft, part number MZ-8057
- New axle assembly with male inboard and outboard connections
- 26 inboard splines and 26 outboard splines
- Neoprene boot material for the axle boot assembly
- Overall compressed length: 24 in. (609.5 mm)
- Axle bolt thread size: M8 x 1.25
- Axle bolt hex size: 13 mm; axle bolt length: 45.3 mm
- No axle nut included
- No ABS tone ring included
Product Details
This TrakMotive CV axle shaft is specified for the front right side of the Mazda B2600 and is listed as a direct-fit driveline replacement for the 1987-1993 model years. The MZ-8057 uses male-style shaft connections at both ends, with 26 splines on the inboard and outboard sides, and a 24-inch compressed length to match the application. TrakMotive MZ-8057 is also cross-referenced to Cardone New 66-8019 for the same application.
The TrakMotive CV Axle Shaft product line is built for driveline service work where the original axle has worn joints, damaged boots, vibration, or driveline noise. For Mazda B2600 front right axle replacement, MZ-8057 provides the listed dimensions and connection style needed for proper fitment.
Common Replacement Reasons
- Clicking or popping during turns from a worn CV joint
- Vibration under acceleration from a damaged axle shaft
- Torn or deteriorated axle boot causing grease loss
- Noise from excessive play in the front right driveline
- Axle damage from age, road impact, or joint wear
Installation Notes
Verify spline count, compressed length, bolt thread size, and shaft connection style before installation. This axle does not include an axle nut, and no ABS tone ring is included. ABS axles fit non-ABS applications unless otherwise noted by the vehicle listing.
Quality Assurance
TrakMotive states this axle is a new part and identifies the manufacturing program as ISO 9001:1007 and TS 16949:2009 certified. The MZ-8057 is covered by a limited lifetime warranty.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 1993 | Mazda | B2600 | 4WD | Front Right | CV Axle Shaft |
| 1992 | Mazda | B2600 | 4WD | Front Right | CV Axle Shaft |
| 1991 | Mazda | B2600 | 4WD | Front Right | CV Axle Shaft |
| 1990 | Mazda | B2600 | 4WD | Front Right | CV Axle Shaft |
| 1989 | Mazda | B2600 | 4WD | Front Right | CV Axle Shaft |
| 1988 | Mazda | B2600 | 4WD | Front Right | CV Axle Shaft |
| 1987 | Mazda | B2600 | 4WD | Front Right | CV Axle Shaft |
