TrakMotive MZ-8062 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft MZ-8062 for Mazda MPV

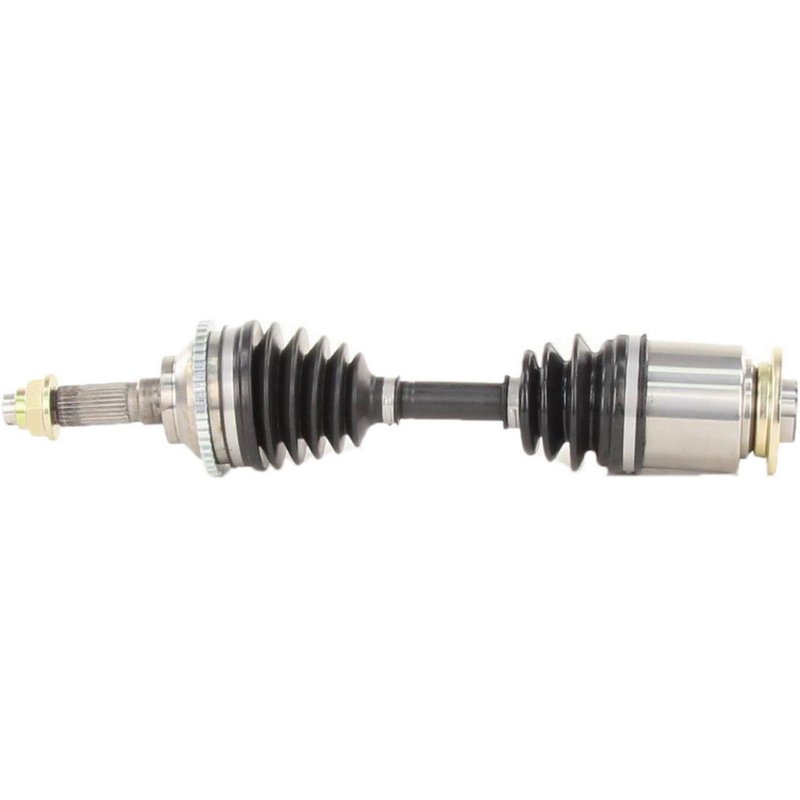

The TrakMotive CV Axle Shaft MZ-8062 is designed specifically for Mazda MPV models, providing reliable driveline performance. This new CV axle shaft features a robust construction with precise specifications to ensure compatibility and durability.

• Compatible with Mazda MPV vehicles
• Includes a neoprene boot for enhanced protection
• Equipped with a 44-tooth ABS ring and included tone ring
• Axle nut with hex head, stake locking type, and M24*1.5 thread size
• Overall compressed length of 18.74 inches (476 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering quality CV components engineered for precise fitment and reliable driveline operation. This line includes shafts with both conventional and female joint types, designed to meet OEM specifications. The MZ-8062 model features a female inboard joint and a conventional outboard joint, ensuring proper connection styles for the Mazda MPV application.

Technical Specifications and Features

This CV axle shaft includes a neoprene boot material that offers resistance to wear and environmental factors. The ABS ring is toothed with 44 teeth and comes with an included tone ring, supporting accurate ABS sensor readings. The axle nut is a hex head type, measuring 1 2/5 inches (35.6 mm) across the flats, with a height of 1 inch (23 mm) and a length of 1 1/2 inches (37.53 mm). It uses a stake locking mechanism to secure the nut firmly in place. The shaft has 26-2t inboard splines and 26 outboard splines, with an overall compressed length of 18.74 inches (476 mm).

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Mazda MPV
• Resolves issues related to torn or leaking CV boots
• Addresses ABS sensor errors caused by faulty tone rings
• Fixes axle nut loosening problems with stake locking design
• Restores driveline smoothness and reduces vibration

Installation Notes and Tips

Ensure the axle nut is torqued to manufacturer specifications and properly staked to prevent loosening. Verify the correct orientation of the female inboard joint and conventional outboard joint during installation. Inspect the neoprene boot for any damage before installation to maintain joint protection. Use appropriate tools for the 35.6 mm hex axle nut to avoid rounding or damage.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft MZ-8062 is a new, not remanufactured, component built to meet OEM standards. It includes an ABS tone ring for accurate sensor function and a durable neoprene boot for extended service life. Warranty details should be confirmed with the distributor or manufacturer, as they may vary.
