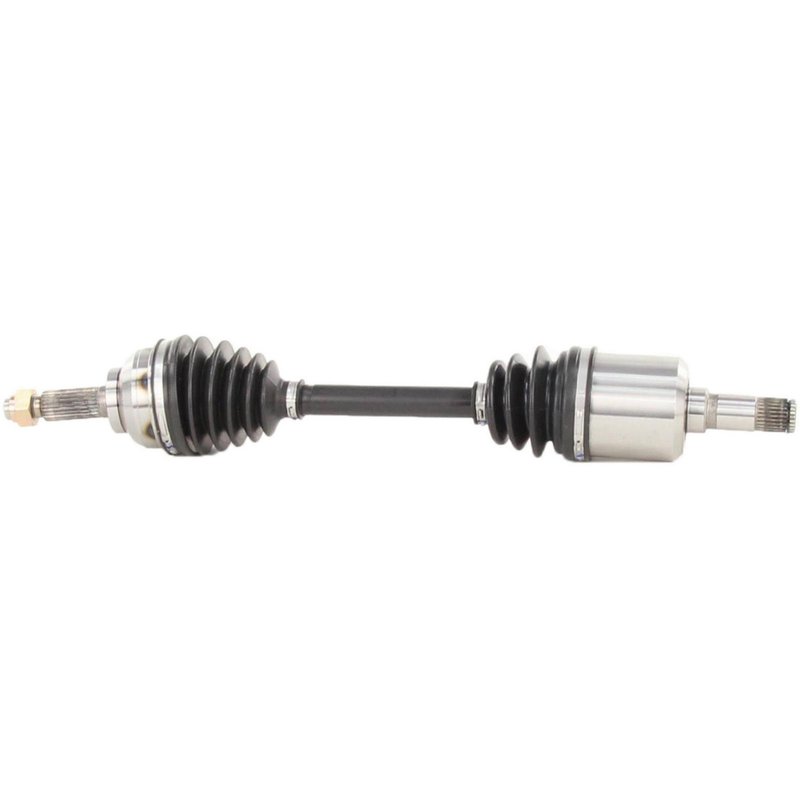

TrakMotive MZ-8063 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft MZ-8063

The TrakMotive CV Axle Shaft MZ-8063 is designed for reliable driveline performance in select Mazda and Mercury vehicles. Engineered to meet OEM specifications, this new CV axle shaft ensures proper fit and function for models like the Mazda 323 and Mercury Capri.

• Compatible with Mazda 323 and Mercury Capri models
• Includes axle nut with stake locking type for secure installation
• Neoprene boot material for enhanced durability and protection
• Overall compressed length of 23.31 inches (592 mm)
• Hex head axle nut with 1 1/8 inch (28.5 mm) hex size
• Male inboard joint and conventional outboard joint types
• New, not remanufactured, ensuring fresh components

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components that maintain vehicle integrity and performance. This line emphasizes compatibility and durability, featuring components like neoprene boots and stake-type locking axle nuts to secure the assembly. The MZ-8063 part exemplifies these qualities, providing a dependable replacement for specific Mazda and Mercury applications.

Technical Specifications and Features

This CV axle shaft features a neoprene boot designed to resist wear and environmental damage, extending the life of the joint. The inboard joint uses a male connection style with 26 splines, while the outboard joint is conventional with 24 splines, ensuring proper engagement and torque transfer. The included axle nut is a hex head type measuring 1 1/8 inches across flats, with a height of 5/7 inches (17.8 mm) and a length of 2 inches (52 mm). The axle nut thread size is M20*1.5, secured with a stake locking mechanism to prevent loosening during operation. The overall compressed length of the shaft is 23.31 inches (592 mm), matching OEM dimensions for a precise fit.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Mazda 323 and Mercury Capri
• Addresses issues with torn or leaking CV boots causing grease loss
• Resolves axle vibration or clicking noises during turns
• Fixes axle nut loosening problems with stake locking nut design
• Restores driveline integrity after joint wear or spline damage

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before beginning installation. Verify the part number MZ-8063 matches the original axle shaft specifications for your Mazda 323 or Mercury Capri. Use the included hex head axle nut with the specified M20*1.5 thread size and stake locking method to secure the axle properly. Inspect the neoprene boot for any damage during installation and apply appropriate grease to the joints as needed. Torque the axle nut to manufacturer specifications to avoid premature wear or loosening.

Quality Assurance and Warranty Information

The TrakMotive CV Axle Shaft MZ-8063 is a new, not remanufactured, component manufactured to meet or exceed OEM standards. It includes a neoprene boot for enhanced durability and a stake locking axle nut for secure fitment. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliable performance in compatible Mazda and Mercury vehicles.
