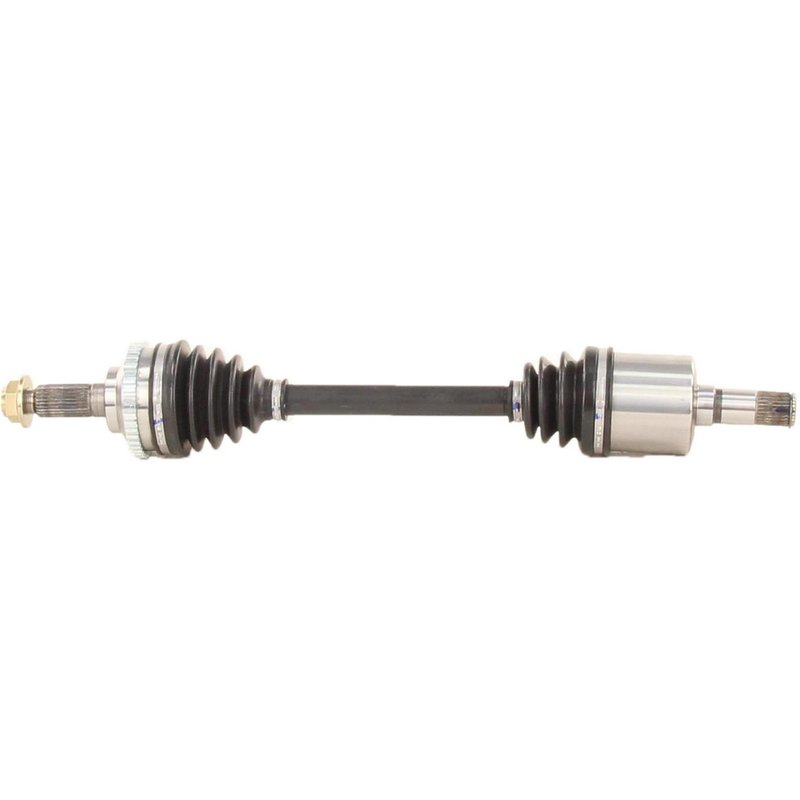

TrakMotive MZ-8095 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft MZ-8095

The TrakMotive CV Axle Shaft MZ-8095 is engineered for reliable driveline performance in select Ford and Mazda vehicles. Designed to meet OEM specifications, this new CV axle shaft ensures smooth power transfer and durability for your vehicle's front-wheel or all-wheel drive system.

• Compatible with Ford 626, Mazda MX-6, and Mazda Probe models
• Includes a neoprene boot for enhanced protection against contaminants
• Equipped with a 44-tooth ABS ring and included tone ring for accurate wheel speed sensing
• Features a hex head axle nut with stake locking for secure installation
• Overall compressed length of 24.8 inches (630 mm) for precise fitment

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering high-quality constant velocity components designed to restore driveline integrity. This line emphasizes compatibility with specific vehicle makes and models, providing new axle shafts that include essential hardware such as axle nuts and ABS tone rings. The MZ-8095 model exemplifies this approach by integrating key features like a neoprene boot and a 44-tooth ABS ring to maintain proper sensor function and protect joint components.

Technical Specifications and Features

The MZ-8095 CV axle shaft includes a male inboard joint type with 28 splines and a conventional outboard joint also with 28 splines, ensuring a secure connection to the transmission and wheel hub. The axle nut is a hex type measuring 1 1/4 inches (31.4 mm) across flats, with a length of 1 3/7 inches (36.2 mm) and a height of 5/6 inches (20.9 mm). It features an M22 x 1.5 thread size and a stake locking mechanism to prevent loosening during operation. The neoprene boot material offers resistance to wear and environmental factors, extending the life of the CV joint. The included ABS tone ring with 44 teeth supports accurate anti-lock braking system functionality.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Ford 626, Mazda MX-6, and Mazda Probe
• Restores proper ABS sensor readings by including the correct 44-tooth ABS tone ring
• Eliminates axle vibration and noise caused by joint wear or boot failure
• Prevents grease leakage and contamination with durable neoprene boot
• Secures wheel hub connection with included stake-locking hex axle nut

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft MZ-8095, ensure the axle nut is torqued to manufacturer specifications and properly staked to prevent loosening. Verify the ABS tone ring is correctly positioned to maintain sensor accuracy. Inspect the neoprene boot for any damage during installation to avoid premature joint failure. This axle shaft is designed for direct replacement on compatible Ford and Mazda models, simplifying the installation process.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft MZ-8095 is a new, not remanufactured, component built to meet or exceed OEM standards. It includes all necessary hardware for installation, such as the axle nut and ABS tone ring. While specific warranty details are not provided, TrakMotive products typically undergo rigorous quality control to ensure durability and performance in driveline applications.
