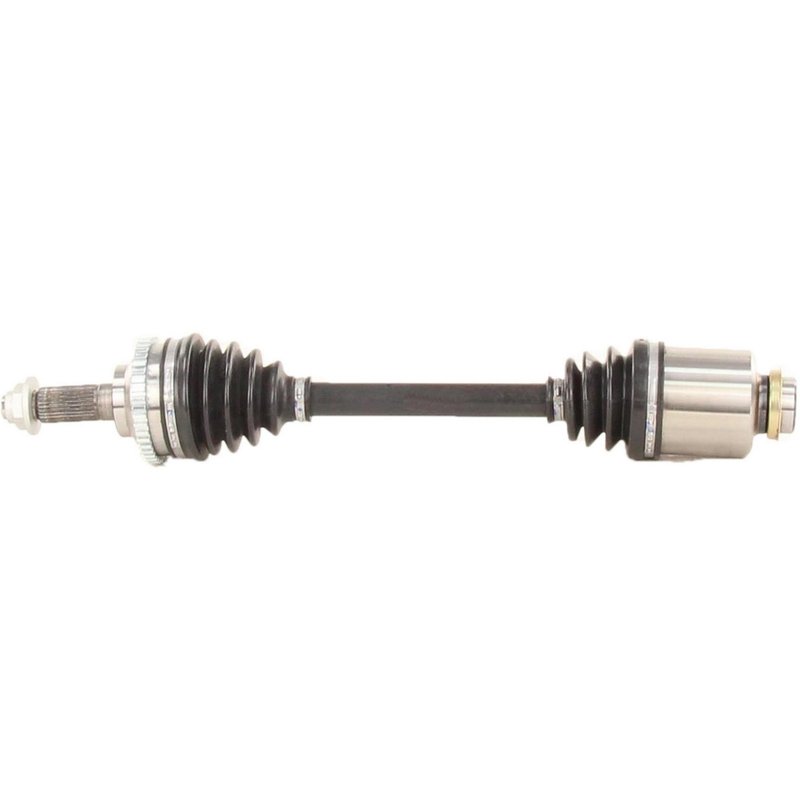

TrakMotive MZ-8097 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft MZ-8097

The TrakMotive CV Axle Shaft MZ-8097 is engineered for reliable driveline performance in select Ford and Mazda vehicles. Designed to meet OEM specifications, this new CV axle shaft ensures smooth power transfer and durability for your vehicle's front-wheel or all-wheel drive system.

• Compatible with Ford 626, Mazda MX-6, and Mazda Probe models
• Includes a neoprene boot for enhanced protection against contaminants
• Equipped with a 44-tooth ABS ring and included tone ring for accurate wheel speed sensing
• Features a hex head axle nut with stake locking for secure installation
• Overall compressed length of 22.87 inches (581 mm) for precise fitment

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering high-quality constant velocity components designed to restore driveline integrity. This line emphasizes compatibility with specific vehicle makes and models, ensuring that each axle shaft meets the exacting standards required for proper fit and function. The MZ-8097 part is a new, not remanufactured, component that includes all necessary hardware such as the axle nut and ABS tone ring, streamlining the replacement process.

Technical Specifications and Features

This CV axle shaft features a female inboard joint type with 28-2 splines and a conventional outboard joint with 28 splines, providing a secure connection to the transmission and wheel hub. The neoprene boot material offers resistance to wear and environmental damage, extending the service life of the joint. The included ABS ring has 44 teeth and a toothed design, compatible with the vehicle's anti-lock braking system for accurate wheel speed monitoring. The axle nut is a hex type with a 1 1/4 inch (31.4 mm) hex size, 5/6 inch (20.9 mm) height, and a thread size of M22x1.5, featuring a stake locking mechanism to prevent loosening during operation.

Applications and Problem Solving

• Replaces worn or damaged CV axle shafts on Ford 626, Mazda MX-6, and Mazda Probe
• Addresses issues such as clicking noises during turns caused by joint wear
• Eliminates vibration or shuddering from axle imbalance or joint failure
• Restores proper ABS sensor function with included tone ring
• Prevents grease leakage and contamination with durable neoprene boot

Installation Notes and Tips

• Verify vehicle compatibility with Ford 626, Mazda MX-6, or Mazda Probe before installation
• Use proper torque specifications for the M22x1.5 axle nut and stake to secure locking
• Inspect surrounding components such as wheel bearings and suspension parts during replacement
• Ensure the ABS tone ring is properly aligned for accurate sensor readings
• Lubricate splines and joints as recommended to facilitate smooth assembly

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft MZ-8097 is a new component manufactured to meet or exceed OEM standards. It includes all necessary hardware for installation and is constructed with durable materials such as neoprene boots and precision-machined joints. While specific warranty details are not provided, TrakMotive products typically come with manufacturer-backed quality assurance to support reliable performance in Ford and Mazda vehicles.
