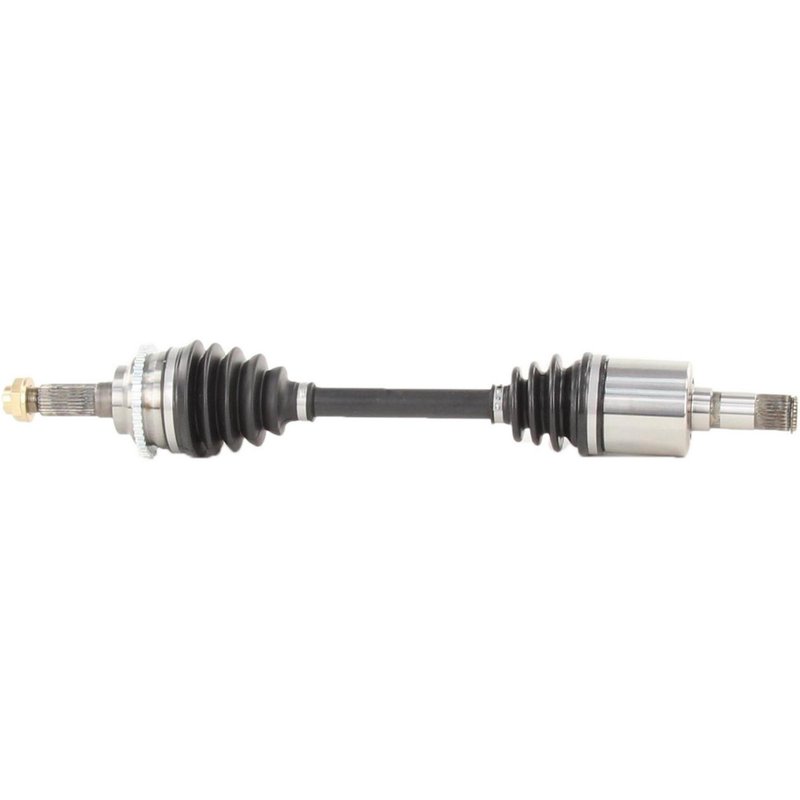

TrakMotive MZ-8103 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft MZ-8103

The TrakMotive CV Axle Shaft MZ-8103 is designed specifically for Mazda Protege and Protege5 models. This new CV axle shaft ensures reliable driveline performance with precise fitment and durable construction.

• Compatible with Mazda Protege and Protege5
• Includes ABS tone ring with 44 toothed ring teeth
• Neoprene boot material for enhanced durability
• Hex head axle nut included with stake locking type
• Overall compressed length of 24.57 inches (624 mm)

Detailed Product Features and Specifications

This TrakMotive CV Axle Shaft from the CV Axle Shaft product line features a 44-tooth ABS ring with a toothed design and includes the ABS tone ring for accurate wheel speed sensor readings. The axle nut is a hex head type measuring 1 1/4 inches (31.8 mm) across flats, with a height of 4/5 inches (20 mm) and a length of 1 1/3 inches (34.4 mm). It uses a stake locking mechanism and has an M22x1.5 thread size. The neoprene boot material provides resistance to wear and environmental factors, helping to protect the CV joint. The inboard joint is a male type with 28 splines, while the outboard joint is conventional with 26 splines, ensuring proper connection and torque transfer. The overall compressed length of the axle shaft is 24.57 inches (624 mm), matching factory specifications for a direct replacement.

About the TrakMotive CV Axle Shaft Product Line

The TrakMotive CV Axle Shaft product line focuses on delivering precise fit and reliable performance for driveline and axle components. This line includes new CV axle shafts engineered to meet OEM specifications, featuring quality materials such as neoprene boots and integrated ABS tone rings. The MZ-8103 part is a part of this line, designed to maintain proper vehicle handling and ABS functionality for Mazda Protege and Protege5 models.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Mazda Protege and Protege5
• Restores proper ABS sensor function with included ABS tone ring
• Eliminates clicking or popping noises during turns caused by joint wear
• Prevents grease leaks with durable neoprene boot
• Corrects vibration or driveline imbalance issues

Installation Notes and Tips

Ensure the axle nut is torqued to manufacturer specifications and properly stake the locking nut to prevent loosening. Verify the ABS tone ring is correctly aligned with the wheel speed sensor. Inspect the CV boots for any damage during installation and replace if necessary. This CV axle shaft is designed for direct bolt-on installation on compatible Mazda Protege and Protege5 models.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft MZ-8103 is a new, not remanufactured, component built to meet or exceed OEM standards. It includes a neoprene boot for long-lasting protection and a stake-type locking axle nut for secure fitment. While specific warranty details are not provided, TrakMotive products typically come with manufacturer-backed quality assurance to ensure reliable performance.
