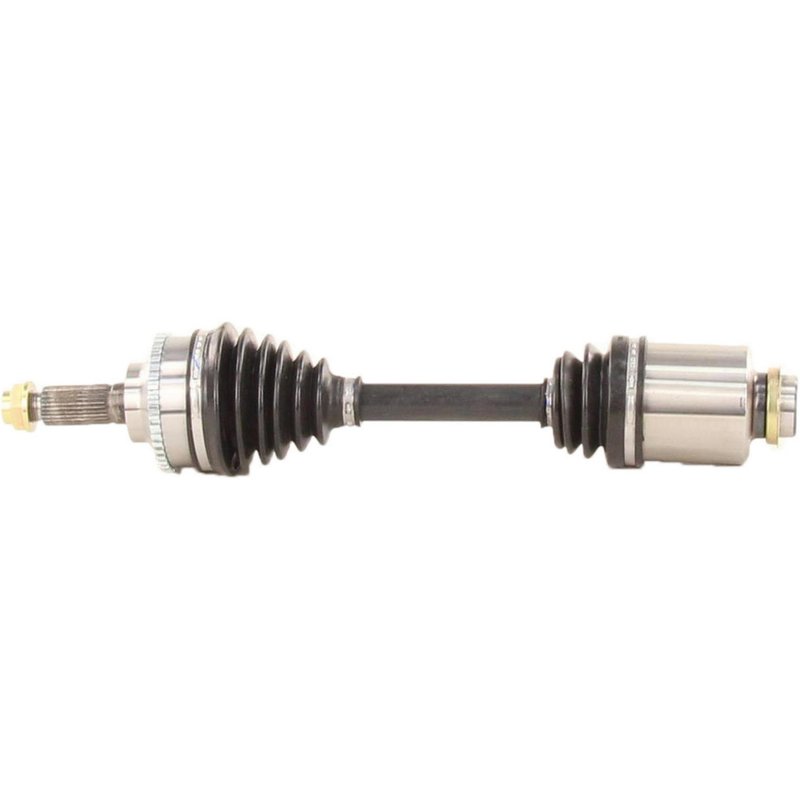

TrakMotive MZ-8109 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft MZ-8109 for Mazda MPV

The TrakMotive CV Axle Shaft MZ-8109 is engineered specifically for Mazda MPV models, providing reliable driveline performance. Designed as a new replacement part, this axle shaft ensures compatibility and durability for your vehicle's CV components.

• Compatible with Mazda MPV models
• Includes ABS tone ring with 44 toothed ring count
• Neoprene boot material for enhanced durability
• Stake locking axle nut with hex head included
• Overall compressed length of 21.46 inches (545 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise fit and reliable performance for driveline and axle components. This line includes shafts designed with specific spline counts and connection styles to match OEM specifications. The MZ-8109 model features a female inboard joint and a conventional outboard joint, ensuring proper integration with the Mazda MPV's driveline system.

Technical Specifications and Features

This CV axle shaft features a 44-tooth ABS ring type that is included with the assembly, supporting accurate wheel speed sensor readings. The axle nut is a stake locking type with a hex head measuring 1 1/4 inches (31.8 mm) across flats and a height of 4/5 inches (20 mm). The nut thread size is M22 x 1.5, and the nut length is 1 1/3 inches (34.4 mm). The neoprene boot material provides resistance to wear and environmental factors, extending the life of the joint. The inboard shaft connection is female with 28-2 splines, while the outboard shaft connection is conventional with 28 splines. The overall compressed length of 21.46 inches (545 mm) ensures proper fitment within the Mazda MPV's driveline assembly.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Mazda MPV
• Restores proper ABS sensor function with included toothed ABS ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage with durable neoprene boot
• Ensures secure wheel attachment with included stake locking axle nut

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft MZ-8109, verify compatibility with your specific Mazda MPV model year. Use proper torque specifications for the M22 x 1.5 axle nut to ensure secure fastening. Inspect the axle shaft splines and joints for proper engagement during installation. The included ABS tone ring must be aligned correctly to maintain accurate sensor readings. It is recommended to replace axle nuts with the new ones provided to maintain locking integrity.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft MZ-8109 is a new, OEM-quality replacement part designed to meet or exceed original equipment standards. Manufactured with durable materials including neoprene boots and precision-machined splines, this axle shaft supports long-term driveline reliability. Warranty information is provided by the manufacturer and should be confirmed at the time of purchase.
