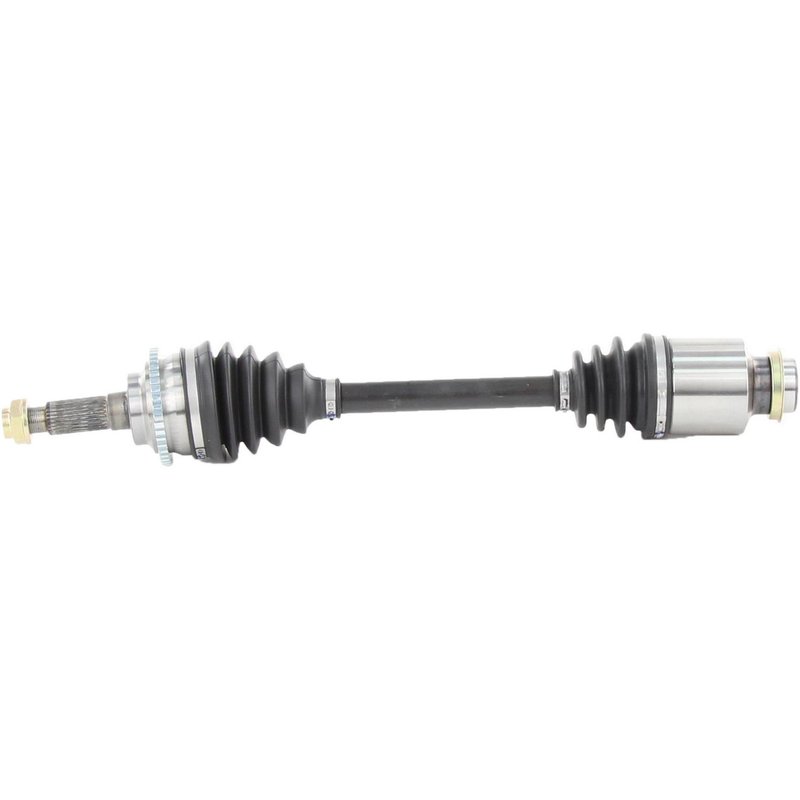

TrakMotive MZ-8117 CV Axle Shaft - Front Right
| Brand | TrakMotive MZ-8117 |
|---|---|
| Position | Front Right |
| Abs Ring Tooth Count | 44 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 4/5 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Female |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 28-2T |
| Number Of Outboard Splines | 26 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 23.23 |
| Overall Compressed Length (mm) | 590 |
| Product line | CV Axle Shaft |
| Fits | Mazda · 21 vehicles |
New axle shaft. Fresh replacement part for dependable driveline service.
Neoprene boot. Helps resist wear while keeping the joint protected.
ABS tone ring included. Ready for applications that use a toothed sensor ring.
Cross-references Cardone New 66-8099, Cardone Reman 60-8053 and Cardone Reman 60-8099 for the same application. See all 47.
CV Axle Shaft for Mazda Protege and Protege5
TrakMotive MZ-8117 is a new CV axle shaft built for front right applications on select Mazda compact models. It is specified for 1999-2003 Mazda Protege and 2002-2003 Mazda Protege5 front right service, with the axle dimensions and spline counts needed for a direct driveline replacement.
Key Features
- New CV axle shaft for front right installation
- Fits 1999-2003 Mazda Protege, front right
- Fits 2002-2003 Mazda Protege5, front right
- Inboard female connection with 28-2T splines
- Outboard conventional connection with 26 splines
- Neoprene boot material for CV joint protection
- ABS tone ring included with 44-tooth toothed ring
- Axle nut included; M22 x 1.5 thread, stake-lock style
- Overall compressed length: 23.23 in. (590 mm)
Product Details
TrakMotive CV Axle Shaft MZ-8117 is engineered as a direct replacement for the front right side on Mazda Protege and Mazda Protege5 applications listed above. The axle uses a female inboard joint, a conventional outboard joint, and the specified spline counts to match the original driveline layout. An ABS tone ring is included, and the axle nut is supplied with the correct hex size and thread specification for the application. TrakMotive identifies this CV axle shaft as a new part and notes ISO 9001:1007 and TS 16949:2009 certified manufacturing practices.
This part cross-references Monroe Shocks & Struts 801326 for the same application. If you are searching for a Mazda Protege front right CV axle shaft or a Mazda Protege5 front right axle replacement, MZ-8117 is the cataloged part number to verify against your vehicle.
Common Problems This Part Can Address
- Clicking or popping noises during turns from a worn outer CV joint
- Vibration or shudder during acceleration caused by axle wear
- Torn boot conditions that allow grease loss and contamination
- Excessive play in the driveline from a damaged axle shaft
- ABS-related service needs when the tone ring is part of the original setup
Installation Notes and Tips
Confirm front right fitment by matching the vehicle year, model, spline count, and axle nut specifications before installation. Inspect the hub, seals, and surrounding suspension components for wear while replacing the axle. Torque the axle nut to the vehicle manufacturer’s specification and stake it as required. Because this axle includes an ABS tone ring, verify that the sensor and ring alignment match the original configuration on the vehicle.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. The brand also states that its manufacturing is certified to ISO 9001:1007 and TS 16949:2009 standards, supporting consistent production control for driveline replacement parts.
| Year | Make | Model | Submodel | Drive Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 2003 | Mazda | Protege | — | — | Manual | — | — | Front Right | CV Axle Shaft |
| 2003 | Mazda | Protege | — | — | Automatic | — | — | Front Right | CV Axle Shaft |
| 2003 | Mazda | Protege | Mazdaspeed | — | Manual | 2.0L | L4 | Front Right | CV Axle Shaft |
| 2003 | Mazda | Protege5 | — | — | Manual | — | — | Front Right | CV Axle Shaft |
| 2003 | Mazda | Protege5 | — | — | Automatic | — | — | Front Right | CV Axle Shaft |
| 2002 | Mazda | Protege | — | FWD | Manual | — | — | Front Right | CV Axle Shaft |
| 2002 | Mazda | Protege | — | — | Automatic | — | — | Front Right | CV Axle Shaft |
| 2002 | Mazda | Protege5 | — | — | Manual | — | — | Front Right | CV Axle Shaft |
| 2002 | Mazda | Protege5 | — | — | Automatic | — | — | Front Right | CV Axle Shaft |
| 2001 | Mazda | Protege | — | FWD | Manual | 2.0L | L4 | Front Right | CV Axle Shaft |
| 2001 | Mazda | Protege | — | FWD | Automatic | 2.0L | L4 | Front Right | CV Axle Shaft |
| 2001 | Mazda | Protege | — | FWD | Manual | 1.6L | L4 | Front Right | CV Axle Shaft |
| 2001 | Mazda | Protege | — | FWD | Automatic | 1.6L | L4 | Front Right | CV Axle Shaft |
| 2000 | Mazda | Protege | — | FWD | Manual | 1.8L | L4 | Front Right | CV Axle Shaft |
| 2000 | Mazda | Protege | — | FWD | Automatic | 1.8L | L4 | Front Right | CV Axle Shaft |
| 2000 | Mazda | Protege | — | FWD | Manual | 1.6L | L4 | Front Right | CV Axle Shaft |
| 2000 | Mazda | Protege | — | FWD | Automatic | 1.6L | L4 | Front Right | CV Axle Shaft |
| 1999 | Mazda | Protege | — | FWD | Manual | 1.8L | L4 | Front Right | CV Axle Shaft |
| 1999 | Mazda | Protege | — | FWD | Automatic | 1.8L | L4 | Front Right | CV Axle Shaft |
| 1999 | Mazda | Protege | — | FWD | Manual | 1.6L | L4 | Front Right | CV Axle Shaft |
| 1999 | Mazda | Protege | — | FWD | Automatic | 1.6L | L4 | Front Right | CV Axle Shaft |
