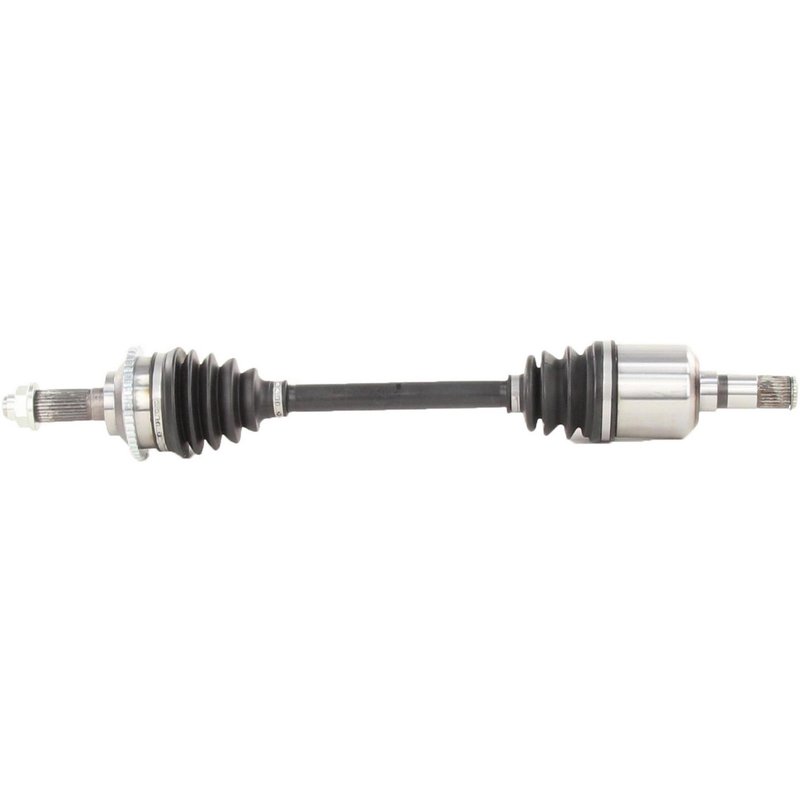

TrakMotive MZ-8133 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft MZ-8133

The TrakMotive CV Axle Shaft MZ-8133 is engineered for reliable driveline performance in select Ford Fusion, Mazda 6, and Mercury Milan models. Designed to meet OEM specifications, this new CV axle shaft ensures consistent power transfer and vehicle stability.

• Compatible with Ford Fusion, Mazda 6, and Mercury Milan
• Includes ABS tone ring with 44 toothed ring teeth
• Neoprene boot material for enhanced durability
• Hex head axle nut included with stake locking type
• Overall compressed length of 25.43 inches (646 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precision-engineered constant velocity components that maintain driveline integrity. This line features components with robust neoprene boots and ABS tone rings designed to integrate seamlessly with vehicle ABS systems. The MZ-8133 part exemplifies this line’s commitment to quality and fitment accuracy for specific vehicle applications.

Technical Specifications and Features

This CV axle shaft features a 44-tooth ABS ring with a toothed design, ensuring accurate wheel speed sensor readings. The included ABS tone ring supports anti-lock braking system functionality. The axle nut is a hex head type measuring 1 1/4 inches (32 mm) across flats, with a height of 1 inch (24 mm) and a length of 1 1/2 inches (37 mm). It uses a stake locking mechanism and has an M22 x 1.5 thread size for secure installation. The neoprene boot material provides resistance to wear and environmental factors, extending the service life of the joint. Both inboard and outboard joints have 28 splines, with the inboard joint featuring a male connection style and the outboard joint a conventional style. The overall compressed length of the shaft is 25.43 inches (646 mm), matching OEM dimensions for proper fitment.

Applications and Common Repair Uses

• Replacement of worn or damaged CV axle shafts on Ford Fusion, Mazda 6, and Mercury Milan
• Restoring ABS sensor functionality by replacing the ABS tone ring
• Resolving clicking or popping noises during turns caused by joint wear
• Fixing vibration or shuddering issues related to axle shaft imbalance
• Addressing grease leaks or torn boots to prevent joint contamination

Installation Notes and Tips

Ensure the axle nut is torqued to manufacturer specifications and properly staked to prevent loosening. Verify the ABS tone ring is correctly positioned to maintain accurate sensor readings. Inspect the neoprene boot for any damage during installation to avoid premature failure. Use appropriate tools for the hex head axle nut (1 1/4 inch or 32 mm) to avoid rounding off the nut. Confirm spline engagement on both inboard and outboard joints for secure fitment.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft MZ-8133 is a new, not remanufactured, component built to meet or exceed OEM standards. It undergoes rigorous quality control to ensure durability and performance. Warranty coverage details should be confirmed with the product provider or manufacturer.
