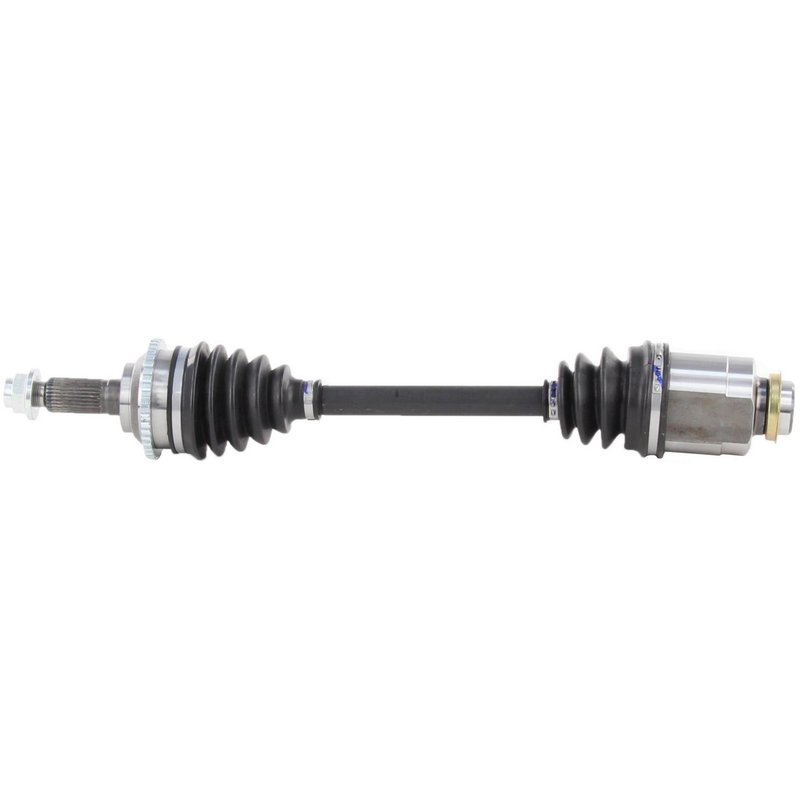

TrakMotive MZ-8134 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft MZ-8134

The TrakMotive CV Axle Shaft MZ-8134 is engineered for reliable driveline performance in select Ford, Mazda, and Mercury vehicles. Designed specifically for models like the Ford Fusion and Mercury Milan, this new CV axle shaft ensures precise fitment and durability.

• Compatible with Ford Fusion, Mazda, and Mercury Milan models
• Includes a 44-tooth ABS ring with a toothed design for accurate wheel speed sensing
• Equipped with a neoprene boot for enhanced protection against contaminants
• Comes with a hex head axle nut (1 1/4 inch hex size) with stake locking for secure installation
• Overall compressed length of 23.62 inches (600 mm) for exact fitment

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering new, high-quality constant velocity axle shafts designed to meet OEM specifications. This line emphasizes precise engineering, including features like female inboard joint connections and conventional outboard joints, ensuring compatibility and performance for specific vehicle applications such as the Ford Fusion and Mercury Milan.

Technical Specifications and Features

This CV axle shaft features a 44-tooth ABS tone ring that is toothed and included with the assembly, providing reliable ABS sensor input. The axle nut included is a hex head type with a 1 1/4 inch (32 mm) hex size, 1 inch (24 mm) height, and 1 1/2 inch (37 mm) length, secured with a stake locking mechanism and threaded M22x1.5 for a secure fit. The neoprene boot material offers resistance to wear and environmental factors, extending the life of the joint. The inboard joint is a female type with 28-2t splines, while the outboard joint is conventional with 28 splines, ensuring proper connection and torque transfer. The overall compressed length of 23.62 inches (600 mm) matches OEM dimensions for direct replacement.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts in Ford Fusion and Mercury Milan vehicles
• Resolves issues related to torn or leaking CV boots causing grease loss
• Addresses axle shaft vibrations or clicking noises during turns
• Fixes ABS sensor errors caused by damaged or missing tone rings
• Corrects axle nut thread or locking failures ensuring secure wheel attachment

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before removing the old axle shaft. Verify the axle nut thread size (M22x1.5) and use the included hex head axle nut with stake locking for proper torque and security. Inspect the CV boots and joints during installation to confirm no damage occurred during handling. The neoprene boot material requires careful handling to avoid punctures. Confirm the ABS tone ring is properly aligned to maintain accurate sensor readings.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft MZ-8134 is a new, not remanufactured, component built to meet or exceed OEM standards. It includes all necessary hardware such as the axle nut and ABS tone ring for a complete replacement. While specific warranty details are not provided here, TrakMotive products typically come with manufacturer-backed quality assurance to ensure reliability and fitment for compatible Ford, Mazda, and Mercury vehicles.
